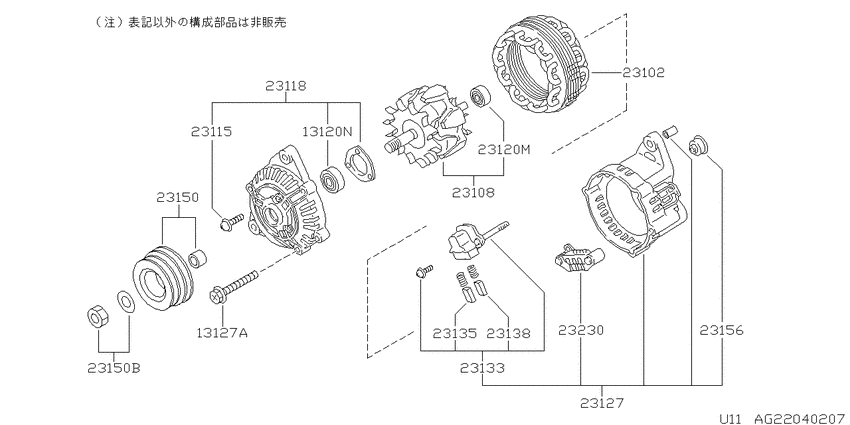

Alternator (1983-10-01 ~ 1985-08-01; 三菱; CA18ET) Diagram Nissan BLUEBIRD
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18T
- transmission
- F5
- grade
- SSS
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23102
|
23102
23102-05P10 Stator Assy8310--01 ~ 8410--01; CA18ET; ﾐﾂﾋﾞｼ |
23102-05P10 |
US $494.18 |
||
|
23102
|
23102
23102-58S00 Stator Assy8508--01 ~ 8709--01; CA16S+CA18#; ﾋﾀﾁ |
23102-58S00 |
US $447.46 |
||
|
23102
|
23102
23102-V5511 Stator Assy8410--01 ~ 8508--01; CA18ET; ﾐﾂﾋﾞｼ |
23102-V5511 |
US $288.86 |
||
|
23108
|
23108
23108-05P11 Rotor Assy8410--01 ~ 8508--01; (S,K).CA18ET; ﾐﾂﾋﾞｼ |
23108-05P11 |
US $317.18 |
||
|
23108
|
23108
23108-08E15 ROTOR ASSY8310--01 ~ 8410--01; :CA16S-F5+CA18ET+ CA20S+W.LX *CA18E *(S,K).CA18S-L#.F5; ﾐﾂﾋﾞｼ *=ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ﾖｳ |
23108-08E15 |
US $502.68 |
||
|
23108
|
23108
23108-58S00 Rotor Assy8508--01 ~ 8509--01; CA16S+CA18#; ﾋﾀﾁ |
23108-58S00 |
US $478.61 |
||
|
23108
|
23108
23108-D4400 Rotor Assy8509--01 ~ 8709--01; CA16S+CA18#; ﾋﾀﾁ |
23108-D4400 |
US $529.58 |
||
|
23115
|
23115
23115-13E10 SCREW ASSY8310--01 ~ 8508--01; :CA16S-F5+CA18ET+ CA20S+W.LX *CA18E *(S,K).CA18S-L#.F5; ﾐﾂﾋﾞｼ *=ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ﾖｳ |
23115-13E10 |
US $4.03 |
||
|
23118
|
23118
23118-08E15 COVER ASSY-FRONT8310--01 ~ 8410--01; :CA16S-F5+CA18ET+ CA20S+W.LX *CA18E *(S,K).CA18S-L#.F5; ﾐﾂﾋﾞｼ *=ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ﾖｳ |
23118-08E15 |
US $192.96 |
||
|
23118
|
23118
23118-D4400 Cover Assy-Front8508--01 ~ 8709--01; CA16S+CA18#; ﾋﾀﾁ |
23118-D4400 |
US $137.23 |
||
|
23118
|
23118
23118-V5511 Cover Assy-Front8410--01 ~ 8508--01; CA16S+CA18#+CA20S; ﾐﾂﾋﾞｼ |
23118-V5511 |
US $115.63 |
||
|
23120M
|
23120M
23120-04P10 Bearing-Ball8310--01 ~ 8410--01; :CA16S-F5+CA18ET+ CA20S+W.LX *CA18E *(S,K).CA18S-L#.F5; ﾐﾂﾋﾞｼ *=ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ﾖｳ |
23120-04P10 |
US $29.23 |
||
|
23120M
|
23120M
23120-58S01 Bearing-Ball8508--01 ~ 8709--01; CA16S+CA18#; ﾋﾀﾁ |
23120-58S01 |
from US $22.75 |
||
|
23120M
|
23120M
23120-V5511 Bearing-Ball8410--01 ~ 8508--01; CA16S+CA18#+CA20S; ﾐﾂﾋﾞｼ |
23120-V5511 |
US $22.90 |
||
|
23127
|
23127
23127-08E15 COVER ASSY-REAR8310--01 ~ 8508--01; CA18ET; ﾐﾂﾋﾞｼ |
23127-08E15 |
US $906.24 |
||
|
23127
|
23127
23127-08E16 COVER ASSY-REAR8410--01 ~ 8508--01; (S,K).CA18ET; ﾐﾂﾋﾞｼ |
23127-08E16 |
US $906.24 |
||
|
23127
|
23127
23127-D4400 Cover Assy-Rear8508--01 ~ 8709--01; CA16S+CA18#; ﾋﾀﾁ |
23127-D4400 |
US $982.70 |
||
| replacement | |||||
|
23127
|
23127
23127-51E00 COVER ASSY-REAR8508--01 ~ 8709--01; CA16S+CA18#; ﾋﾀﾁ |
23127-51E00 |
US $906.24 |
||
|
23127
|
23127
23131-13E10 BOLT-THROUGH8310--01 ~ 8508--01; :CA16S-F5+CA18ET+ CA20S+W.LX *CA18E *(S,K).CA18S-L#.F5; ﾐﾂﾋﾞｼ *=ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ﾖｳ |
23131-13E10 |
US $6.34 |
||
|
23127
|
23127
23131-58S00 Bolt-Through8508--01 ~ 8709--01; CA16S+CA18#; ﾋﾀﾁ |
23131-58S00 |
US $6.05 |
||
|
23133
|
23133
23133-08E15 REGULATOR ASSY-IC8310--01 ~ 8508--01; CA18ET; ﾐﾂﾋﾞｼ |
23133-08E15 |
US $346.92 |
||
|
23133
|
23133
23133-D4400 Holder Assy-Brush8508--01 ~ 8709--01; CA16S+CA18#; ﾋﾀﾁ |
23133-D4400 |
US $234.72 |
||
|
23135
|
23135
2313513E10 BRUSH ASSY8310--01 ~ 8508--01; :CA16S-F5+CA18ET+ CA20S+W.LX *CA18E *(S,K).CA18S-L#.F5; ﾐﾂﾋﾞｼ *=ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ﾖｳ |
2313513E10 |
US $10.22 |
||
|
23135
|
23135
23142-58S00 Brush Assy8508--01 ~ 8709--01; CA16S+CA18#; ﾋﾀﾁ |
23142-58S00 |
US $7.63 |
||
|
23138
|
23138
23138A5510 Spring-Brush8310--01 ~ 8508--01; :CA16S-F5+CA18ET+ CA20S+W.LX *CA18E *(S,K).CA18S-L#.F5; ﾐﾂﾋﾞｼ *=ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ﾖｳ |
23138A5510 |
US $1.87 |
||
|
23150
|
23150
23150-08E10 PULLEY ASSY8310--01 ~ 8508--01; 3CA16S+CA18S (CA18E,CA18T).SSSE CA18T.SSSES; ﾐﾂﾋﾞｼ ﾆﾀﾞﾝ ﾌﾟ-ﾘ- |
23150-08E10 |
US $22.75 |
||
|
23150
|
23150
23150-08E16 PULLEY ASSY8310--01 ~ 8508--01; HCA20S S.SSSEX K.(SSSEX,SSSEXG) *CA18S *SSSE; !ﾐﾂﾋﾞｼ ﾆﾀﾞﾝ ﾌﾟ-ﾘ- *=ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ﾖｳ |
23150-08E16 |
US $65.52 |
||
|
23150
|
23150
23150-13E10 PULLEY ASSY8310--01 ~ 8410--01; !CA16S-F5+ CA18ET-SSSEXG; ﾐﾂﾋﾞｼ ﾆﾀﾞﾝ ﾌﾟ-ﾘ- |
23150-13E10 |
US $73.58 |
||
|
23150
|
23150
23150-13E15 PULLEY ASSY8310--01 ~ 8410--01; ICA20S+SSSEXG+W.LX *CA16S-F5 *(S,K).CA18S-L#.F5 *SSSE#-SSSEXG; ﾐﾂﾋﾞｼ ﾆﾀﾞﾝ ﾌﾟ-ﾘ- *=ｶﾝﾚｲﾁ ﾖｳ |
23150-13E15 |
US $65.52 |
||
|
23150
|
23150
23150-D4400 Pulley Assy8508--01 ~ 8709--01; CA16S+CA18#; ﾋﾀﾁ |
23150-D4400 |
US $97.92 |
||
|
23150
|
23150
23150-D4405 Pulley Assy8508--01 ~ 8709--01; *CA16S *CA18#; ﾋﾀﾁ ｴｱｺﾝ ﾖｳ |
23150-D4405 |
US $67.10 |
||
|
23150
|
23150
23153-Q4601 Nut Assy-Pulley8508--01 ~ 8709--01; CA16S+CA18#; ﾋﾀﾁ |
23153-Q4601 |
US $4.18 |
||
|
23150
|
23150
23153-U0110 Nut Assy-Pulley8310--01 ~ 8508--01; :CA16S-F5+CA18ET+ CA20S+W.LX *CA18E *(S,K).CA18S-L#.F5; ﾐﾂﾋﾞｼ *=ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ﾖｳ |
23153-U0110 |
US $1.73 |
||
|
23150B
|
23150B
23153-Q4601 Nut Assy-Pulley8508--01 ~ 8709--01; CA16S+CA18#; ﾋﾀﾁ |
23153-Q4601 |
US $4.18 |
||
|
23150B
|
23150B
23153-U0110 Nut Assy-Pulley8310--01 ~ 8508--01; :CA16S-F5+CA18ET+ CA20S+W.LX *CA18E *(S,K).CA18S-L#.F5; ﾐﾂﾋﾞｼ *=ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ﾖｳ |
23153-U0110 |
US $1.73 |
||
|
23156
|
23156
23156-08E15 TERMINAL ASSY-B8310--01 ~ 8508--01; CA18ET; ﾐﾂﾋﾞｼ |
23156-08E15 |
US $12.67 |
||
|
23230
|
23230
23124-08E16 Rectifier Assy8410--01 ~ 8508--01; CA18ET; ﾐﾂﾋﾞｼ |
23124-08E16 |
US $204.48 |
||
|
23230
|
23230
23230-08E15 DIODE ASSY8310--01 ~ 8410--01; CA18ET; ﾐﾂﾋﾞｼ |
23230-08E15 |
US $227.52 |
||
|
23230
|
23230
23230-D4400 Diode Assy8508--01 ~ 8709--01; CA16S+CA18#; ﾋﾀﾁ |
23230-D4400 |
US $291.70 |
||
| replacement | |||||
|
23230
|
23230
23230-51E00 DIODE ASSY8508--01 ~ 8709--01; CA16S+CA18#; ﾋﾀﾁ |
23230-51E00 |
US $249.12 |
||
