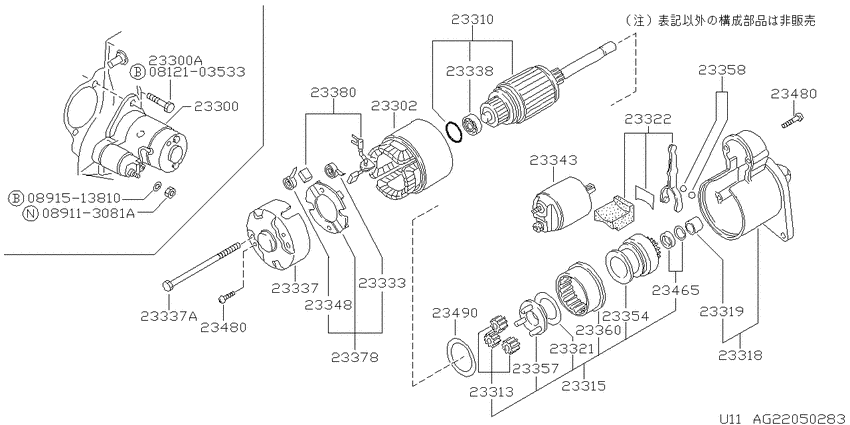

Starter motor (1985-08-01 ~ ; 三菱; CA18DT) Diagram Nissan BLUEBIRD
- Year
- 1986 - 2012
- Sales region
- Japan
- Engine
- CA18DT
- transmission
- AT
- grade
- SSSX
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812103533
|
0812103533
08121-03533 Bolt-hexagon |
08121-03533 |
US $2.45 |
||
| replacement | |||||
|
0812103533
|
0812103533
081210351F Bolt-hexagon |
081210351F |
US $2.91 |
||
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
23300
|
23300
23300-D0511 Motor Assy-Starter8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23300-D0511 |
US $767.47 |
||
|
23300
|
23300
01121-00981 BOLT8508--01 ~ 8709--01; 2(S+K).CA18ET.F5 (S+K).CA18DT S.CA18S.DS |
01121-00981 |
US $2.45 |
||
|
23300A
|
23300A
01121-00981 BOLT8508--01 ~ 8709--01; 2(S+K).CA18ET.F5 (S+K).CA18DT S.CA18S.DS |
01121-00981 |
US $2.45 |
||
|
23302
|
23302
23302-42L70 Yoke Assy8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23302-42L70 |
US $259.20 |
||
|
23310
|
23310
23310-01E10
ARMATURE ASSY
8310--01 ~ 8508--01; #CA16S.(F5,AT)+CA18# CA20S *CA16S.F4; ﾐﾂﾋﾞｼ |
23310-01E10 |
— | ||
|
23310
|
23310
23310-42L70 Armature Assy8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23310-42L70 |
US $382.32 |
||
|
23310
|
23310
23310-D0200 Armature Assy8310--01 ~ 8508--01; #CA16S.(F5,AT)+CA18# CA20S *CA16S.F4; ﾋﾀﾁ |
23310-D0200 |
from US $339.40 |
||
|
23310
|
23310
23310-M4900 Armature Assy8310--01 ~ 8508--01; *CA16S.AT *CA18#.AT *CA20S.AT; ﾋﾀﾁ ｶﾝﾚｲﾁ ﾖｳ |
23310-M4900 |
US $611.71 |
||
|
23310
|
23310
23310-U7511 Armature Assy8310--01 ~ 8508--01; *CA16S.AT *CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ﾖｳ |
23310-U7511 |
US $389.40 |
||
| replacement | |||||
|
23310
|
23310
23310-U7512 Armature Assy8310--01 ~ 8508--01; *CA16S.AT *CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ﾖｳ |
23310-U7512 |
US $463.03 |
||
|
23313
|
23313
23361-04E10 GEAR8310--01 ~ 8508--01; *CA16S.AT *CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ﾖｳ |
23361-04E10 |
US $25.06 |
||
|
23313
|
23313
23361-42L70 Planet Gear8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23361-42L70 |
US $22.46 |
||
|
23315
|
23315
23312-20R10 Pinion Assy8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23312-20R10 |
US $335.59 |
||
|
23318
|
23318
23318-D0510 Case Assy-Gear8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23318-D0510 |
US $88.85 |
||
|
23319
|
23319
23319M8011 Metal-Gear Case8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23319M8011 |
US $5.18 |
||
|
23319
|
23319
23319-M4900 Metal-Gear Case8310--01 ~ 8508--01; *CA16S.AT *CA18#.AT *CA20S.AT; ﾋﾀﾁ ｶﾝﾚｲﾁ ﾖｳ |
23319-M4900 |
US $21.46 |
||
|
23319
|
23319
23319W1710 Bearing-Gear Case8310--01 ~ 8508--01; *CA16S.AT *CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ﾖｳ |
23319W1710 |
US $15.98 |
||
|
23321
|
23321
23320-42L70 Washer8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23320-42L70 |
US $9.36 |
||
|
23321
|
23321
23321-N3300 Washer Set-Thrust8310--01 ~ 8508--01; CA16S+CA18#+CA20S *CA16S.F4; ﾋﾀﾁ |
23321-N3300 |
US $4.18 |
||
|
23321
|
23321
23460-M8011 Washer Set-Thrust8310--01 ~ 8508--01; CA16S+CA18#+CA20S *CA16S.F4; ﾐﾂﾋﾞｼ |
23460-M8011 |
US $7.92 |
||
|
23322
|
23322
23322-42L70 Lever Set-Shift8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23322-42L70 |
US $14.54 |
||
|
23322
|
23322
23322-H9100 Lever Set-Shift8310--01 ~ 8508--01; *CA16S.AT *CA18#.AT *CA20S.AT; ﾋﾀﾁ ｶﾝﾚｲﾁ ﾖｳ |
23322-H9100 |
US $8.64 |
||
|
23322
|
23322
23322-M8100 Lever Set-Shift8310--01 ~ 8508--01; #CA16S.(F5,AT)+CA18# CA20S *CA16S.F4; ﾋﾀﾁ |
23322-M8100 |
US $12.67 |
||
|
23322
|
23322
23322-N5910 Lever Set-Shift8310--01 ~ 8508--01; *CA16S.AT *CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ﾖｳ |
23322-N5910 |
US $9.36 |
||
|
23333
|
23333
23333-42L70 Spring-Brush8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23333-42L70 |
US $4.03 |
||
|
23333
|
23333
23333M1510 Spring-Brush8310--01 ~ 8508--01; 1CA16S+CA18#+CA20S *CA16S.AT *CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23333
|
23333
23333-M4901 Spring-Brush8310--01 ~ 8508--01; *CA16S.AT *CA18#.AT *CA20S.AT; ﾋﾀﾁ ｶﾝﾚｲﾁ ﾖｳ |
23333-M4901 |
US $8.78 |
||
|
23333
|
23333
23333-M8000 Spring-Brush8310--01 ~ 8508--01; CA16S+CA18#+CA20S *CA16S.F4; ﾋﾀﾁ |
23333-M8000 |
US $6.48 |
||
|
23337
|
23337
23337-42L70 Cover Assy-Rear8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23337-42L70 |
US $45.65 |
||
|
23337
|
23337
23337-M4901 Cover Assy-Rear8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾋﾀﾁ |
23337-M4901 |
US $11.38 |
||
|
23337
|
23337
23337-N5910 Cover Assy-Rear8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ |
23337-N5910 |
US $33.55 |
||
|
23337
|
23337
23340-20P10 Bolt-Through8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23340-20P10 |
US $4.18 |
||
| replacement | |||||
|
23337
|
23337
233404W01A Bolt-Through8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
233404W01A |
US $4.03 |
||
|
23337
|
23337
23340-M4900 Bolt-Through8310--01 ~ 8508--01; MS.CA16S.MT (CA18#,CA20S).MT *CA16S.AT *(CA18#,CA20S).AT; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337
|
23337
23340-U7510 Bolt-Through8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ |
23340-U7510 |
US $4.18 |
||
|
23337A
|
23337A
23340-20P10 Bolt-Through8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23340-20P10 |
US $4.18 |
||
| replacement | |||||
|
23337A
|
23337A
233404W01A Bolt-Through8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
233404W01A |
US $4.03 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through8310--01 ~ 8508--01; MS.CA16S.MT (CA18#,CA20S).MT *CA16S.AT *(CA18#,CA20S).AT; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340-U7510 Bolt-Through8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ |
23340-U7510 |
US $4.18 |
||
|
23338
|
23338
23319-42L70 Bearing-Gear Case8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23319-42L70 |
US $15.70 |
||
|
23338
|
23338
23338-M4900 Metal-Rear Cover8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾋﾀﾁ |
23338-M4900 |
from US $52.13 |
||
|
23338
|
23338
23338W1710 Bearing-Rear Cover8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ |
23338W1710 |
from US $13.71 |
||
|
23343
|
23343
23343-04E00 SWITCH ASSY-MAGNETIC8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾋﾀﾁ |
23343-04E00 |
US $129.02 |
||
| replacement | |||||
|
23343
|
23343
B3343-H9100
Switch assy-magnetic
8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾋﾀﾁ |
B3343-H9100 |
— | ||
|
23343
|
23343
23343-04E10 SWITCH ASSY-MAGNETIC8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ |
23343-04E10 |
US $129.02 |
||
|
23343
|
23343
23343-D0510 Switch Assy-Magnetic8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23343-D0510 |
US $181.44 |
||
|
23343
|
23343
23343-M8003 Switch Assy-Magnetic8310--01 ~ 8508--01; CA16S+CA18#+CA20S; ﾋﾀﾁ |
23343-M8003 |
US $151.20 |
||
| replacement | |||||
|
23343
|
23343
23343-20P00 Switch Assy-Magnetic8310--01 ~ 8508--01; CA16S+CA18#+CA20S; ﾋﾀﾁ |
23343-20P00 |
US $126.43 |
||
|
23343
|
23343
23343M8011 Switch Assy-Magnetic8310--01 ~ 8508--01; CA16S+CA18#+CA20S; ﾐﾂﾋﾞｼ |
23343M8011 |
US $126.43 |
||
|
23343
|
23343
23340-N5915 Bolt8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ |
23340-N5915 |
US $2.45 |
||
|
23348
|
23348
23333-42L71 Spring8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23333-42L71 |
US $4.03 |
||
|
23354
|
23354
23354-11M00 Shaft-Pinion8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾋﾀﾁ |
23354-11M00 |
US $156.96 |
||
|
23354
|
23354
23354-20R10 Clutch Assy8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23354-20R10 |
US $152.64 |
||
|
23354
|
23354
23354-N5912 Clutch Assy8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ |
23354-N5912 |
US $276.48 |
||
|
23357
|
23357
23312-42L75 Shaft-Pinion8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23312-42L75 |
US $69.70 |
||
|
23357
|
23357
23357-04E10 SHAFT-PINION8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT |
23357-04E10 |
US $30.10 |
||
|
23357
|
23357
23357-M4901 Shaft-Pinion8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾋﾀﾁ ｶﾝﾚｲﾁ ﾖｳ |
23357-M4901 |
US $119.38 |
||
|
23358
|
23358
23325-42L70 Ball-Shift Lever8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23325-42L70 |
from US $1.39 |
||
|
23358
|
23358
23358-M4900 Bearing8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾋﾀﾁ ｶﾝﾚｲﾁ ﾖｳ |
23358-M4900 |
US $38.88 |
||
|
23360
|
23360
23360-04E10 GEAR & SHAFT SET8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ |
23360-04E10 |
US $275.04 |
||
|
23360
|
23360
23360-42L70 Gear8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23360-42L70 |
US $22.75 |
||
|
23378
|
23378
23378-42L70 Holder Assy-Brush8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23378-42L70 |
US $60.19 |
||
|
23378
|
23378
23378M4901 Holder Assy-Brush8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾋﾀﾁ ｶﾝﾚｲﾁ ﾖｳ |
23378M4901 |
US $47.81 |
||
|
23378
|
23378
23378N5911 Holder Assy-Brush8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ﾖｳ |
23378N5911 |
US $35.71 |
||
|
23380
|
23380
2338042L70 Brush-Plus8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
2338042L70 |
US $8.93 |
||
|
23380
|
23380
23380-M4900 Brush-Plus8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾋﾀﾁ ｶﾝﾚｲﾁ ﾖｳ |
23380-M4900 |
US $10.37 |
||
|
23465
|
23465
23359-N5911 Ring-Snap8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ﾖｳ |
23359-N5911 |
US $7.34 |
||
|
23465
|
23465
23465-42L70 Stopper Set-Pinion8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23465-42L70 |
US $7.63 |
||
|
23465
|
23465
23465-M4900 Stopper Set-Pinion8310--01 ~ 8508--01; 1*S.CA16S.AT *(S,K).CA18#.AT *CA20S.AT; ﾋﾀﾁ |
23465-M4900 |
US $9.50 |
||
|
23480
|
23480
23480-M0100 Screw Set8310--01 ~ 8508--01; CA16S+CA18#+CA20S *CA16S.F4; ﾋﾀﾁ |
23480-M0100 |
US $4.18 |
||
|
23480
|
23480
23480-M0110 Screw Set8310--01 ~ 8508--01; ;CA16S+CA18#+CA20S *CA16S.F4 *CA16S.AT *CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
||
|
23480
|
23480
23480-M0100 Screw Set8310--01 ~ 8508--01; CA16S+CA18#+CA20S *CA16S.F4; ﾋﾀﾁ |
23480-M0100 |
US $4.18 |
||
|
23480
|
23480
23480-M0110 Screw Set8310--01 ~ 8508--01; ;CA16S+CA18#+CA20S *CA16S.F4 *CA16S.AT *CA18#.AT *CA20S.AT; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
||
|
23490
|
23490
23385-42L70 Packing Set8508--01 ~ 8709--01; CA18DT; ﾐﾂﾋﾞｼ |
23385-42L70 |
US $4.18 |
||
