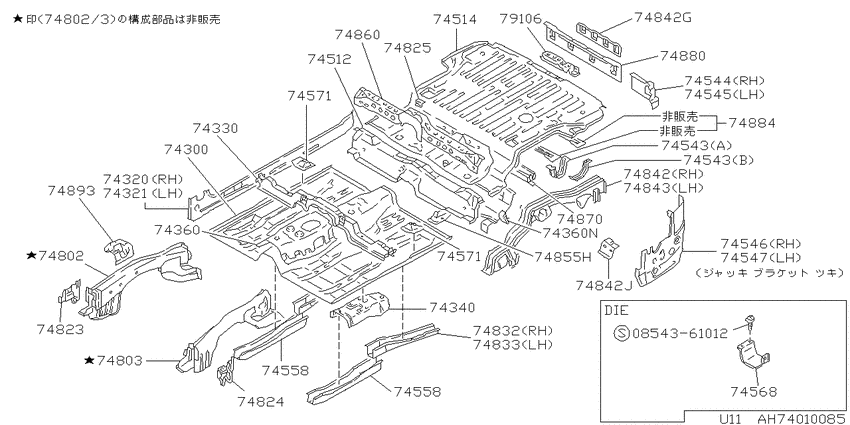

Floor panel (1983-10-01 ~ ; V) Diagram Nissan BLUEBIRD
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA16S
- transmission
- AT
- grade
- LX
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0854361012
|
0854361012
08543-61012
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-61012 |
— | ||
|
74300
|
74300
74312-01E30 FLOOR-FRONT8310--01 ~ 8508--01; ALL |
74312-01E30 |
US $945.89 |
||
|
74300
|
74300
74312-45E30
FLOOR-FRONT
8805--01 ~ ; V |
74312-45E30 |
— | ||
|
74300
|
74300
062122500P Plug-Front Floor8310--01 ~ 8508--01; V; D=26 |
062122500P |
US $2.45 |
||
|
74300
|
74300
062121600P Plug-Front Floor8310--01 ~ ; V+W; D=10 |
062121600P |
US $2.21 |
||
|
74300
|
74300
64890U7400 Plug-Rubber8508--01 ~ ; V+W; D=30 |
64890U7400 |
from US $0.97 |
||
| replacement | |||||
|
74300
|
74300
0165802121 PLUG8508--01 ~ ; V+W; D=30 |
0165802121 |
from US $1.37 |
||
|
74300
|
74300
64891W5000 Plug-Rubber8709--01 ~ ; V W.CA18S |
64891W5000 |
from US $0.82 |
||
|
74300
|
74300
062121200P Grommet8310--01 ~ 8709--01; V+W; D=12.5 |
062121200P |
US $2.45 |
||
|
74300
|
74300
50810-B9500 Plug8709--01 ~ ; V+W; D=12.5 |
50810-B9500 |
US $1.87 |
||
|
74320
|
74320
76450-09E00 SILL-INNER,RH8310--01 ~ 8508--01; V |
76450-09E00 |
US $138.96 |
||
|
74320
|
74320
76450-09E60 SILL-INNER,RH8508--01 ~ ; V |
76450-09E60 |
US $138.96 |
||
|
74321
|
74321
76451-09E00 SILL-INNER,LH8310--01 ~ 8508--01; V |
76451-09E00 |
US $138.96 |
||
|
74321
|
74321
76451-09E60 SILL-INNER,LH8508--01 ~ ; V |
76451-09E60 |
US $138.96 |
||
|
74330
|
74330
74330-09E02 MEMBER-2ND CROSS,RH8310--01 ~ ; V |
74330-09E02 |
US $181.44 |
||
|
74340
|
74340
74340-01E01 MEMBER-FRONT SEAT MOUNTING,RH8310--01 ~ 8508--01; V+W |
74340-01E01 |
US $63.79 |
||
|
74360
|
74360
74370-01E01 BOLSTER-FRONT8310--01 ~ 8508--01; ALL |
74370-01E01 |
US $85.39 |
||
|
74360
|
74360
74370-45E00
BOLSTER-FRONT
8805--01 ~ ; V |
74370-45E00 |
— | ||
|
74360
|
74360
74574-09E61 BOLSTER-MIDDLE8508--01 ~ ; V.CA16S |
74574-09E61 |
US $124.56 |
||
|
74360
|
74360
75640-09E00 BOLSTER-MIDDLE8310--01 ~ 8508--01; V |
75640-09E00 |
US $124.56 |
||
|
74360N
|
74360N
74574-09E61 BOLSTER-MIDDLE8508--01 ~ ; V.CA16S |
74574-09E61 |
US $124.56 |
||
|
74360N
|
74360N
75640-09E00 BOLSTER-MIDDLE8310--01 ~ 8508--01; V |
75640-09E00 |
US $124.56 |
||
|
74512
|
74512
74512-01E30 FLOOR-REAR,FRONT8310--01 ~ 8508--01; ALL |
74512-01E30 |
US $368.16 |
||
|
74512
|
74512
74512-09E60
FLOOR-REAR,FRONT
8508--01 ~ ; V |
74512-09E60 |
— | ||
|
74514
|
74514
74514-09E00 FLOOR-REAR,REAR8310--01 ~ 8508--01; V |
74514-09E00 |
US $700.92 |
||
|
74514
|
74514
74514-09E60 FLOOR-REAR,REAR8508--01 ~ ; V |
74514-09E60 |
US $700.92 |
||
|
74543
|
74543
57216-09E00 BRACKET-SPARE TIRE CLAMP8310--01 ~ ; V; (B) ﾘﾔ |
57216-09E00 |
US $54.58 |
||
|
74543
|
74543
57216-W2700 Bracket-Spare Tire Clamp8310--01 ~ ; V; (A) |
57216-W2700 |
US $23.04 |
||
|
74543
|
74543
57216-09E00 BRACKET-SPARE TIRE CLAMP8310--01 ~ ; V; (B) ﾘﾔ |
57216-09E00 |
US $54.58 |
||
|
74543
|
74543
57216-W2700 Bracket-Spare Tire Clamp8310--01 ~ ; V; (A) |
57216-W2700 |
US $23.04 |
||
|
74544
|
74544
75614-09E00 PLATE-REAR FLOOR CORNER,RH8310--01 ~ 8508--01; V |
75614-09E00 |
US $64.08 |
||
|
74545
|
74545
75615-09E00 PLATE-REAR FLOOR CORNER,LH8310--01 ~ ; V |
75615-09E00 |
US $64.08 |
||
|
74546
|
74546
74530-09E00 FLOOR SIDE-TRUNK,RH8310--01 ~ ; V; ｼﾞﾔﾂｷ ﾌﾞﾗｹﾂﾄﾂｷ |
74530-09E00 |
US $198.72 |
||
|
74547
|
74547
74531-09E00 FLOOR SIDE-TRUNK,LH8310--01 ~ ; V |
74531-09E00 |
US $159.84 |
||
|
74558
|
74558
75176-01E00
EXTENSION-FRONT FLOOR SIDE,RH
8310--01 ~ ; ALL |
75176-01E00 |
— | ||
|
74558
|
74558
75176-01E00
EXTENSION-FRONT FLOOR SIDE,RH
8310--01 ~ ; ALL |
75176-01E00 |
— | ||
|
74571
|
74571
74350-09E00
BRACKET-SUPPORT HIND SEAT
8310--01 ~ ; V; ﾐｷﾞ |
74350-09E00 |
— | ||
|
74571
|
74571
74351-09E00 BRACKET-SUPPORT HIND SEAT8310--01 ~ ; V; ﾋﾀﾞﾘ |
74351-09E00 |
US $14.11 |
||
|
74571
|
74571
74350-09E00
BRACKET-SUPPORT HIND SEAT
8310--01 ~ ; V; ﾐｷﾞ |
74350-09E00 |
— | ||
|
74571
|
74571
74351-09E00 BRACKET-SUPPORT HIND SEAT8310--01 ~ ; V; ﾋﾀﾞﾘ |
74351-09E00 |
US $14.11 |
||
|
74802
|
74802
75110-01E30 MEMBER-SIDE,FRONT RH8310--01 ~ 8508--01; V+W |
75110-01E30 |
US $525.34 |
||
|
74802
|
74802
75110-D4030 Member-Side, Front Rh8508--01 ~ ; V+W |
75110-D4030 |
US $365.33 |
||
|
74803
|
74803
75111-01E30 MEMBER-SIDE,FRONT LH8310--01 ~ ; V+W |
75111-01E30 |
US $365.33 |
||
|
74823
|
74823
75160-01E00 HOOK-FRONT,RH8310--01 ~ ; ALL |
75160-01E00 |
US $25.92 |
||
|
74824
|
74824
75161-01E00 HOOK-FRONT,LH8310--01 ~ ; ALL |
75161-01E00 |
US $25.92 |
||
|
74825
|
74825
75623-W2700 Bracket Assy-Rear Seat Support, Rh8310--01 ~ ; V; ﾘﾔ ｼ-ﾄ ﾊﾞﾂｸﾖｳ |
75623-W2700 |
US $9.94 |
||
|
74832
|
74832
74380-01E30 MEMBER-SIDE,CENTER RH8310--01 ~ ; ALL |
74380-01E30 |
US $93.17 |
||
|
74833
|
74833
74381-01E30 MEMBER-SIDE,CENTER LH8310--01 ~ ; ALL |
74381-01E30 |
US $93.17 |
||
|
74842
|
74842
75510-09E00 MEMBER-SIDE,REAR RH8310--01 ~ ; V |
75510-09E00 |
US $894.91 |
||
|
74842
|
74842
74890-09E01
REINFORCE-MEMBER,REAR RH
8406--01 ~ ; V |
74890-09E01 |
— | ||
|
74842
|
74842
74890-09E02 REINFORCE-MEMBER,REAR RH8310--01 ~ 8406--01; V |
74890-09E02 |
US $64.08 |
||
|
74842
|
74842
74516-09E60 REINFORCE-REAR FLOOR8709--01 ~ ; V; RR RH |
74516-09E60 |
US $20.16 |
||
|
74842
|
74842
74517-09E60 REINFORCE-REAR FLOOR8709--01 ~ ; V; RR LH |
74517-09E60 |
US $20.16 |
||
|
74842G
|
74842G
74890-09E01
REINFORCE-MEMBER,REAR RH
8406--01 ~ ; V |
74890-09E01 |
— | ||
|
74842G
|
74842G
74890-09E02 REINFORCE-MEMBER,REAR RH8310--01 ~ 8406--01; V |
74890-09E02 |
US $64.08 |
||
|
74842J
|
74842J
74516-09E60 REINFORCE-REAR FLOOR8709--01 ~ ; V; RR RH |
74516-09E60 |
US $20.16 |
||
|
74842J
|
74842J
74517-09E60 REINFORCE-REAR FLOOR8709--01 ~ ; V; RR LH |
74517-09E60 |
US $20.16 |
||
|
74843
|
74843
75511-09E00 MEMBER-SIDE,REAR LH8310--01 ~ ; V |
75511-09E00 |
US $894.91 |
||
|
74855H
|
74855H
74596-09E51 BRACKET-HAND BRAKE LEVER8310--01 ~ ; V |
74596-09E51 |
US $52.99 |
||
|
74860
|
74860
74540-09E00 MEMBER-CROSS,REAR SEAT8310--01 ~ ; V |
74540-09E00 |
US $172.80 |
||
|
74870
|
74870
75630-09E01 MEMBER-CROSS,SHOCK ABSORBER & DIFF MOUNT8310--01 ~ ; V |
75630-09E01 |
US $200.16 |
||
|
74880
|
74880
75612-09E00 MEMBER-CROSS,REAR8310--01 ~ ; V |
75612-09E00 |
US $181.44 |
||
|
74884
|
74884
75662-U8600
Bolster-Rear Floor
8310--01 ~ ; V |
75662-U8600 |
— | ||
|
74893
|
74893
75142-01E00
PLATE-SIDE MEMBER
8310--01 ~ ; V+W; ｴﾝｼﾞﾝ ﾏｳﾝﾄ ﾖｳ |
75142-01E00 |
— | ||
|
79106
|
79106
79106-W2700 Reinforce-Tail Gate Striker8310--01 ~ ; V |
79106-W2700 |
US $74.02 |
||
