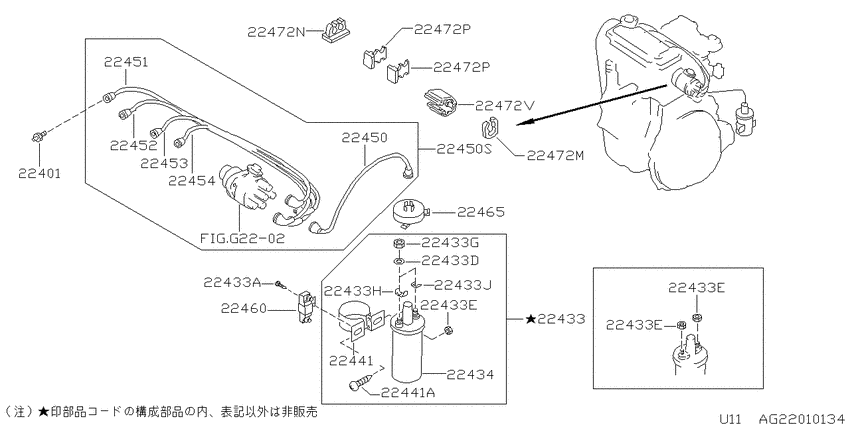

Ignition System (1983-10-01 ~ ; V.GAS) Diagram Nissan BLUEBIRD
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA16S
- transmission
- AT
- grade
- LX
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22401
|
22401
22401-10F14 Plug-Spark8508--01 ~ 8910--01; V.CA16S; BCP4ES[B512] |
22401-10F14 |
US $6.19 |
||
|
22401
|
22401
22401-10F15 Plug-Spark8508--01 ~ 8910--01; V.CA16S; BCP5ES[B512] |
22401-10F15 |
US $6.19 |
||
|
22401
|
22401
22401-10F16 Plug-Spark8508--01 ~ 8910--01; V.CA16S; BCP6ES[B512] |
22401-10F16 |
US $6.19 |
||
|
22401
|
22401
22401-12E14 Plug-Spark8910--01 ~ ; V.CA16S; BCPR4ES[B512] |
22401-12E14 |
US $7.49 |
||
|
22401
|
22401
22401-12E15 Plug-Spark8910--01 ~ ; V.CA16S; BCPR5ES[B512] |
22401-12E15 |
US $7.49 |
||
|
22401
|
22401
22401-12E16 Plug-Spark8910--01 ~ ; V.CA16S; BCPR6ES[B512] |
22401-12E16 |
US $7.49 |
||
|
22401
|
22401
22401-N8714 Plug-Spark8310--01 ~ 8508--01; CA16S+CA18S; BP4ES-11[B512] |
22401-N8714 |
US $5.90 |
||
|
22401
|
22401
22401N8715 Plug-Spark8310--01 ~ 8508--01; CA16S+CA18S; BP5ES-11[B512] |
22401N8715 |
US $4.68 |
||
|
22401
|
22401
22401-N8716
Plug-Spark
8310--01 ~ 8508--01; CA16S+CA18S; BP6ES-11[B512] |
22401-N8716 |
— | ||
|
22401
|
22401
22401-N8717 Plug-Spark8310--01 ~ 8508--01; CA16S+CA18S; BP7ES-11[B512] |
22401-N8717 |
US $5.90 |
||
|
22433
|
22433
22433-01E00 COIL ASSY-IGNITION8310--01 ~ 8508--01; "S.CA16S+CA18S+CA18E CA20S *V.CA16S; ｲﾝﾃ-ｸｶﾞﾜ ﾋﾀﾁ |
22433-01E00 |
US $122.40 |
||
|
22433
|
22433
2243301E10 COIL ASSY-IGNITION8310--01 ~ 8508--01; "S.CA16S+CA18S+CA18E CA20S *V.CA16S; ｲﾝﾃ-ｸｶﾞﾜ ﾊﾝｼﾝ |
2243301E10 |
US $161.28 |
||
|
22433
|
22433
22433-09E00 COIL ASSY-IGNITION8310--01 ~ 8709--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
22433-09E00 |
US $146.88 |
||
|
22433
|
22433
22433-09E10 COIL ASSY-IGNITION8310--01 ~ ; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾊﾝｼﾝ |
22433-09E10 |
US $175.68 |
||
|
22433
|
22433
01461-00041 SCREW8310--01 ~ 8508--01; "S.CA16S+CA18S+CA18E CA20S *V.CA16S; ﾄ-ﾌﾟﾗ ｲﾝﾃ-ｸｶﾞﾜ |
01461-00041 |
US $1.73 |
||
|
22433
|
22433
01461-00101 SCREW8310--01 ~ 8508--01; V.CA16S; ﾄ-ﾌﾟﾗ |
01461-00101 |
US $1.73 |
||
|
22433
|
22433
01461-00241 SCREW8310--01 ~ 8508--01; "S.CA16S+CA18S+CA18E CA20S *V.CA16S; ﾄ-ﾌﾟﾗ ｲﾝﾃ-ｸｶﾞﾜ |
01461-00241 |
US $1.73 |
||
|
22433
|
22433
01461-00591 SCREW8508--01 ~ 8709--01; CA16S+CA18S+CA18E |
01461-00591 |
US $1.73 |
||
|
22433
|
22433
22466-N7110 Washer-Spring8310--01 ~ 8709--01; V.CA16S; ﾊﾝｼﾝ |
22466-N7110 |
US $0.86 |
||
|
22433
|
22433
0122100111 NUT8310--01 ~ 8709--01; "S.CA16S+CA18S+CA18E CA20S *V.CA16S |
0122100111 |
US $1.93 |
||
|
22433
|
22433
22464-N7110 Nut8310--01 ~ 8508--01; V.CA16S; ﾊﾝｼﾝ |
22464-N7110 |
US $0.86 |
||
|
22433
|
22433
22471-U3110 Terminal-Ignition Coil8310--01 ~ 8709--01; V.CA16S; ﾊﾝｼﾝ |
22471-U3110 |
US $0.86 |
||
|
22433
|
22433
22471-U3111 Terminal-Ignition Coil8310--01 ~ 8709--01; V.CA16S; ﾊﾝｼﾝ |
22471-U3111 |
US $0.86 |
||
|
22433A
|
22433A
01461-00041 SCREW8310--01 ~ 8508--01; "S.CA16S+CA18S+CA18E CA20S *V.CA16S; ﾄ-ﾌﾟﾗ ｲﾝﾃ-ｸｶﾞﾜ |
01461-00041 |
US $1.73 |
||
|
22433A
|
22433A
01461-00101 SCREW8310--01 ~ 8508--01; V.CA16S; ﾄ-ﾌﾟﾗ |
01461-00101 |
US $1.73 |
||
|
22433A
|
22433A
01461-00241 SCREW8310--01 ~ 8508--01; "S.CA16S+CA18S+CA18E CA20S *V.CA16S; ﾄ-ﾌﾟﾗ ｲﾝﾃ-ｸｶﾞﾜ |
01461-00241 |
US $1.73 |
||
|
22433A
|
22433A
01461-00591 SCREW8508--01 ~ 8709--01; CA16S+CA18S+CA18E |
01461-00591 |
US $1.73 |
||
|
22433D
|
22433D
22466-N7110 Washer-Spring8310--01 ~ 8709--01; V.CA16S; ﾊﾝｼﾝ |
22466-N7110 |
US $0.86 |
||
|
22433E
|
22433E
0122100111 NUT8310--01 ~ 8709--01; "S.CA16S+CA18S+CA18E CA20S *V.CA16S |
0122100111 |
US $1.93 |
||
|
22433E
|
22433E
0122100111 NUT8310--01 ~ 8709--01; "S.CA16S+CA18S+CA18E CA20S *V.CA16S |
0122100111 |
US $1.93 |
||
|
22433E
|
22433E
0122100111 NUT8310--01 ~ 8709--01; "S.CA16S+CA18S+CA18E CA20S *V.CA16S |
0122100111 |
US $1.93 |
||
|
22433G
|
22433G
22464-N7110 Nut8310--01 ~ 8508--01; V.CA16S; ﾊﾝｼﾝ |
22464-N7110 |
US $0.86 |
||
|
22433H
|
22433H
22471-U3110 Terminal-Ignition Coil8310--01 ~ 8709--01; V.CA16S; ﾊﾝｼﾝ |
22471-U3110 |
US $0.86 |
||
|
22433J
|
22433J
22471-U3111 Terminal-Ignition Coil8310--01 ~ 8709--01; V.CA16S; ﾊﾝｼﾝ |
22471-U3111 |
US $0.86 |
||
|
22434
|
22434
22462-01E10 COIL-IGNITION8709--01 ~ ; W.CA18S *V.CA16S; ｲﾝﾃ-ｸｶﾞﾜ ﾊﾝｼﾝ |
22462-01E10 |
US $155.52 |
||
|
22434
|
22434
22462-09E10 COIL-IGNITION8310--01 ~ ; V.CA16S; ﾊﾝｼﾝ |
22462-09E10 |
US $175.68 |
||
|
22441
|
22441
22441-N8710 Band8310--01 ~ 8709--01; V.CA16S; ﾊﾝｼﾝ |
22441-N8710 |
US $4.85 |
||
|
22441
|
22441
22467-N7110 Screw8310--01 ~ 8709--01; V.CA16S; ﾊﾝｼﾝ |
22467-N7110 |
US $2.45 |
||
|
22441A
|
22441A
22467-N7110 Screw8310--01 ~ 8709--01; V.CA16S; ﾊﾝｼﾝ |
22467-N7110 |
US $2.45 |
||
|
22450
|
22450
22450-01E00 CABLE ASSY-IGNITION COIL TO DISTRIBUTOR8310--01 ~ 8405--01; CA16S+CA18S+CA20S; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22450-01E00 |
US $18.14 |
||
|
22450
|
22450
22450-01E01 CABLE ASSY-IGNITION COIL TO DISTRIBUTOR8405--01 ~ 8504--01; CA16S+CA18S+CA20S; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22450-01E01 |
US $24.05 |
||
|
22450
|
22450
22450-01E10 CABLE ASSY-IGNITION COIL TO DISTRIBUTOR8310--01 ~ 8405--01; CA16S+CA18S+CA20S; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22450-01E10 |
US $18.14 |
||
|
22450
|
22450
22450-01E11
CABLE ASSY-IGNITION COIL TO DISTRIBUTOR
8405--01 ~ 8504--01; CA16S+CA18S+CA20S; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22450-01E11 |
— | ||
|
22450
|
22450
22450-11E00 CABLE ASSY-IGNITION COIL TO DISTRIBUTOR8601--01 ~ ; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22450-11E00 |
US $24.34 |
||
|
22450
|
22450
22450-11E10 CABLE ASSY-IGNITION COIL TO DISTRIBUTOR8601--01 ~ ; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22450-11E10 |
US $21.02 |
||
|
22450
|
22450
22450-06E85 CABLE SET-HIGH TENSION8508--01 ~ ; V.CA16S |
22450-06E85 |
US $198.72 |
||
|
22450
|
22450
22450-09E25 CABLE SET-HIGH TENSION8310--01 ~ 8508--01; V.CA16S |
22450-09E25 |
US $111.60 |
||
|
22450S
|
22450S
22450-06E85 CABLE SET-HIGH TENSION8508--01 ~ ; V.CA16S |
22450-06E85 |
US $198.72 |
||
|
22450S
|
22450S
22450-09E25 CABLE SET-HIGH TENSION8310--01 ~ 8508--01; V.CA16S |
22450-09E25 |
US $111.60 |
||
|
22451
|
22451
22451-09E00 CABLE ASSY-HIGH TENSION,NO 18310--01 ~ 8505--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22451-09E00 |
US $21.89 |
||
|
22451
|
22451
22451-09E01 CABLE ASSY-HIGH TENSION,NO 18505--01 ~ 8509--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22451-09E01 |
US $24.05 |
||
|
22451
|
22451
22451-09E10 CABLE ASSY-HIGH TENSION,NO 18310--01 ~ 8505--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22451-09E10 |
US $48.82 |
||
|
22451
|
22451
22451-09E11 CABLE ASSY-HIGH TENSION,NO 18505--01 ~ 8509--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22451-09E11 |
US $48.82 |
||
|
22451
|
22451
22451-13E00 CABLE ASSY-HIGH TENSION,NO 18509--01 ~ ; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22451-13E00 |
US $37.01 |
||
|
22451
|
22451
22451-13E10 CABLE ASSY-HIGH TENSION,NO 18509--01 ~ ; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22451-13E10 |
US $22.32 |
||
|
22452
|
22452
22452-09E00 CABLE ASSY-HIGH TENSION,NO 28310--01 ~ 8505--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22452-09E00 |
US $32.40 |
||
|
22452
|
22452
22452-09E01 CABLE ASSY-HIGH TENSION,NO 28505--01 ~ 8509--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22452-09E01 |
US $24.05 |
||
|
22452
|
22452
22452-09E10 CABLE ASSY-HIGH TENSION,NO 28310--01 ~ 8505--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22452-09E10 |
US $48.82 |
||
|
22452
|
22452
22452-09E11
CABLE ASSY-HIGH TENSION,NO 2
8505--01 ~ 8509--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22452-09E11 |
— | ||
|
22452
|
22452
22452-13E00 CABLE ASSY-HIGH TENSION,NO 28509--01 ~ ; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22452-13E00 |
US $34.13 |
||
|
22452
|
22452
22452-13E10 CABLE ASSY-HIGH TENSION,NO 28509--01 ~ ; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22452-13E10 |
US $37.01 |
||
|
22453
|
22453
22453-09E00 CABLE ASSY-HIGH TENSION,NO 38310--01 ~ 8505--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22453-09E00 |
US $26.78 |
||
|
22453
|
22453
22453-09E01 CABLE ASSY-HIGH TENSION,NO 38505--01 ~ 8509--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22453-09E01 |
US $23.33 |
||
|
22453
|
22453
22453-09E10 CABLE ASSY-HIGH TENSION,NO 38310--01 ~ 8505--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22453-09E10 |
US $26.78 |
||
|
22453
|
22453
22453-09E11
CABLE ASSY-HIGH TENSION,NO 3
8505--01 ~ 8509--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22453-09E11 |
— | ||
|
22453
|
22453
22453-13E00 CABLE ASSY-HIGH TENSION,NO 38509--01 ~ ; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22453-13E00 |
US $37.73 |
||
|
22453
|
22453
22453-13E10 CABLE ASSY-HIGH TENSION,NO 38509--01 ~ ; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22453-13E10 |
US $37.73 |
||
|
22454
|
22454
22454-09E00 CABLE ASSY-HIGH TENSION,NO 48310--01 ~ 8505--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22454-09E00 |
US $23.33 |
||
|
22454
|
22454
22454-09E01 CABLE ASSY-HIGH TENSION,NO 48505--01 ~ 8509--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22454-09E01 |
US $23.33 |
||
|
22454
|
22454
22454-09E10 CABLE ASSY-HIGH TENSION,NO 48310--01 ~ 8505--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22454-09E10 |
US $26.78 |
||
|
22454
|
22454
22454-09E11
CABLE ASSY-HIGH TENSION,NO 4
8505--01 ~ 8509--01; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22454-09E11 |
— | ||
|
22454
|
22454
22454-13E00 CABLE ASSY-HIGH TENSION,NO 48509--01 ~ ; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22454-13E00 |
US $37.73 |
||
|
22454
|
22454
22454-13E10 CABLE ASSY-HIGH TENSION,NO 48509--01 ~ ; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22454-13E10 |
US $37.73 |
||
|
22460
|
22460
22460-W3800 Resistor-Ignition Coil8310--01 ~ ; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
22460-W3800 |
US $19.44 |
||
|
22460
|
22460
22460-W3810 Resistor-Ignition Coil8310--01 ~ ; V.CA16S; ｾﾝﾀｸ ｼﾖｳ ﾊﾝｼﾝ |
22460-W3810 |
US $26.62 |
||
|
22465
|
22465
22465W1000 Protector-Ignition Coil8310--01 ~ ; V.CA16S |
22465W1000 |
US $12.20 |
||
|
22472M
|
22472M
22472-21010 Clamp-High Tension Cable8310--01 ~ 8508--01; CA16S+CA18#+CA20S |
22472-21010 |
from US $0.89 |
||
|
22472N
|
22472N
22472-D0108 Clamp-High Tension Cable8310--01 ~ 8311--01; CA16S+CA18#+CA20S |
22472-D0108 |
US $4.30 |
||
|
22472P
|
22472P
22472-D0107 Clamp-High Tension Cable8311--01 ~ 8508--01; CA16S+CA18#+CA20S |
22472-D0107 |
US $4.30 |
||
|
22472P
|
22472P
22472-D0107 Clamp-High Tension Cable8311--01 ~ 8508--01; CA16S+CA18#+CA20S |
22472-D0107 |
US $4.30 |
||
|
22472V
|
22472V
22472-D0300
Clamp-High Tension Cable
8310--01 ~ 8508--01; CA16S+CA18S+CA20S |
22472-D0300 |
— |
