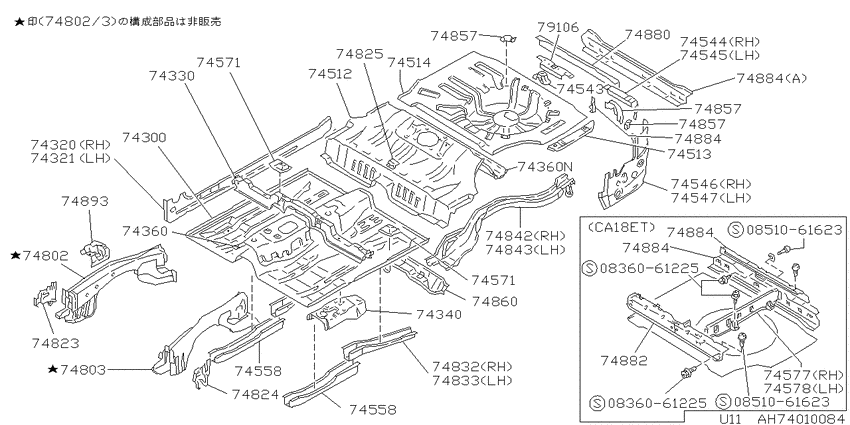

Floor panel (1983-10-01 ~ ; W) Diagram Nissan BLUEBIRD
- Year
- 1985 - 2012
- Sales region
- Japan
- Engine
- CA18S
- transmission
- F5
- grade
- LX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836061225
|
0836061225
08360-61225
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61225 |
— | ||
|
0836061225
|
0836061225
08360-61225
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61225 |
— | ||
|
0851061623
|
0851061623
08510-61623
SCREWTAPPING
|
08510-61623 |
— | ||
|
0851061623
|
0851061623
08510-61623
SCREWTAPPING
|
08510-61623 |
— | ||
|
74300
|
74300
74312-01E30 FLOOR-FRONT8310--01 ~ 8508--01; ALL |
74312-01E30 |
US $945.89 |
||
|
74300
|
74300
74312-D4030
Floor-Front
8508--01 ~ 8709--01; S+K+W |
74312-D4030 |
— | ||
|
74300
|
74300
062122500P Plug-Front Floor8508--01 ~ ; V+W; D=26 |
062122500P |
US $2.45 |
||
|
74300
|
74300
062121600P Plug-Front Floor8310--01 ~ ; V+W; D=10 |
062121600P |
US $2.21 |
||
|
74300
|
74300
64890U7400 Plug-Rubber8508--01 ~ ; V+W; D=30 |
64890U7400 |
from US $0.97 |
||
| replacement | |||||
|
74300
|
74300
0165802121 PLUG8508--01 ~ ; V+W; D=30 |
0165802121 |
from US $1.37 |
||
|
74300
|
74300
64891W5000 Plug-Rubber8709--01 ~ ; V W.CA18S |
64891W5000 |
from US $0.82 |
||
|
74300
|
74300
67816-68200 Plug-Front Floor8310--01 ~ 8508--01; V.DIE+W.LX; D=23 |
67816-68200 |
US $1.93 |
||
|
74300
|
74300
062121200P Grommet8310--01 ~ 8709--01; V+W; D=12.5 |
062121200P |
US $2.45 |
||
|
74300
|
74300
50810-B9500 Plug8709--01 ~ ; V+W; D=12.5 |
50810-B9500 |
US $1.87 |
||
|
74320
|
74320
76450-01E00
SILL-INNER,RH
8310--01 ~ 8508--01; S+K+W |
76450-01E00 |
— | ||
|
74320
|
74320
76450-D4000 Sill-Inner, Rh8508--01 ~ ; W |
76450-D4000 |
US $95.04 |
||
|
74321
|
74321
76451-01E00
SILL-INNER,LH
8310--01 ~ 8508--01; S+K+W |
76451-01E00 |
— | ||
|
74321
|
74321
76451-D4000 Sill-Inner, Lh8508--01 ~ ; W |
76451-D4000 |
US $97.06 |
||
|
74330
|
74330
74330-01E00 MEMBER-2ND CROSS,RH8310--01 ~ 8508--01; S+K+W |
74330-01E00 |
US $181.44 |
||
|
74330
|
74330
74330-D4001 Member-2Nd Cross, Rh8508--01 ~ ; W |
74330-D4001 |
US $127.44 |
||
|
74340
|
74340
74340-01E01 MEMBER-FRONT SEAT MOUNTING,RH8310--01 ~ 8508--01; V+W |
74340-01E01 |
US $63.79 |
||
|
74360
|
74360
74370-01E01 BOLSTER-FRONT8310--01 ~ 8508--01; ALL |
74370-01E01 |
US $85.39 |
||
|
74360
|
74360
74370-D4001 Bolster-Front8508--01 ~ ; W |
74370-D4001 |
US $59.76 |
||
|
74360
|
74360
75640-01E00 BOLSTER-MIDDLE8310--01 ~ 8508--01; W |
75640-01E00 |
US $177.12 |
||
|
74360
|
74360
75650-D4000 Bolster-Middle8606--01 ~ 8709--01; W.(LX+SSS.CA18ET) |
75650-D4000 |
US $136.94 |
||
|
74360N
|
74360N
75640-01E00 BOLSTER-MIDDLE8310--01 ~ 8508--01; W |
75640-01E00 |
US $177.12 |
||
|
74360N
|
74360N
75650-D4000 Bolster-Middle8606--01 ~ 8709--01; W.(LX+SSS.CA18ET) |
75650-D4000 |
US $136.94 |
||
|
74512
|
74512
74512-01E30 FLOOR-REAR,FRONT8310--01 ~ 8508--01; ALL |
74512-01E30 |
US $368.16 |
||
|
74512
|
74512
74512-10E30 FLOOR-REAR,FRONT8709--01 ~ ; W |
74512-10E30 |
US $529.58 |
||
|
74513
|
74513
74513-10E00 FLOOR-REAR,MIDDLE8310--01 ~ ; W; ﾐｷﾞ |
74513-10E00 |
US $46.37 |
||
|
74513
|
74513
74514-10E00 FLOOR-REAR,MIDDLE8310--01 ~ ; W; ﾋﾀﾞﾘ |
74514-10E00 |
US $46.37 |
||
|
74514
|
74514
74514-01E30 FLOOR-REAR,REAR8310--01 ~ 8508--01; S+K+W |
74514-01E30 |
US $412.06 |
||
|
74543
|
74543
74548-V5000
Bracket-Spare Tire Clamp
8310--01 ~ ; S+K+W |
74548-V5000 |
— | ||
| replacement | |||||
|
74543
|
74543
74588-50A00 Bracket-Spare Tire Clamp8310--01 ~ ; S+K+W |
74588-50A00 |
US $7.23 |
||
|
74544
|
74544
74560-01E01 PLATE-REAR FLOOR CORNER,RH8709--01 ~ ; W |
74560-01E01 |
US $7.92 |
||
|
74544
|
74544
75614-10E00 PLATE-REAR FLOOR CORNER,RH8310--01 ~ ; W; ｺ-ﾅ-ｸﾛｽﾒﾝﾊﾞ- |
75614-10E00 |
US $53.86 |
||
|
74545
|
74545
75615-10E00 PLATE-REAR FLOOR CORNER,LH8310--01 ~ ; W |
75615-10E00 |
US $53.86 |
||
|
74546
|
74546
74530-10E10 FLOOR SIDE-TRUNK,RH8310--01 ~ ; W |
74530-10E10 |
US $198.72 |
||
|
74547
|
74547
74531-10E00 FLOOR SIDE-TRUNK,LH8310--01 ~ ; W |
74531-10E00 |
US $159.84 |
||
|
74558
|
74558
75176-01E00
EXTENSION-FRONT FLOOR SIDE,RH
8310--01 ~ ; ALL |
75176-01E00 |
— | ||
|
74558
|
74558
75176-01E00
EXTENSION-FRONT FLOOR SIDE,RH
8310--01 ~ ; ALL |
75176-01E00 |
— | ||
|
74571
|
74571
74350-01E00 BRACKET-SUPPORT HIND SEAT8310--01 ~ ; S+K+W; ﾐｷﾞ |
74350-01E00 |
US $10.08 |
||
|
74571
|
74571
74351-01E00 BRACKET-SUPPORT HIND SEAT8310--01 ~ ; S+K+W; ﾋﾀﾞﾘ |
74351-01E00 |
US $10.08 |
||
|
74571
|
74571
74350-01E00 BRACKET-SUPPORT HIND SEAT8310--01 ~ ; S+K+W; ﾐｷﾞ |
74350-01E00 |
US $10.08 |
||
|
74571
|
74571
74351-01E00 BRACKET-SUPPORT HIND SEAT8310--01 ~ ; S+K+W; ﾋﾀﾞﾘ |
74351-01E00 |
US $10.08 |
||
|
74802
|
74802
75110-01E30 MEMBER-SIDE,FRONT RH8310--01 ~ 8508--01; V+W |
75110-01E30 |
US $525.34 |
||
|
74802
|
74802
75110-D4030 Member-Side, Front Rh8508--01 ~ ; V+W |
75110-D4030 |
US $365.33 |
||
|
74803
|
74803
75111-01E30 MEMBER-SIDE,FRONT LH8310--01 ~ ; V+W |
75111-01E30 |
US $365.33 |
||
|
74823
|
74823
75160-01E00 HOOK-FRONT,RH8310--01 ~ ; ALL |
75160-01E00 |
US $25.92 |
||
|
74824
|
74824
75161-01E00 HOOK-FRONT,LH8310--01 ~ ; ALL |
75161-01E00 |
US $25.92 |
||
|
74825
|
74825
75623-10E10 HOOK-REAR,RH8310--01 ~ ; W.LX; ﾘﾔ ｼ-ﾄ ﾊﾞﾂｸﾖｳ |
75623-10E10 |
US $12.38 |
||
|
74832
|
74832
74380-01E30 MEMBER-SIDE,CENTER RH8310--01 ~ ; ALL |
74380-01E30 |
US $93.17 |
||
|
74833
|
74833
74381-01E30 MEMBER-SIDE,CENTER LH8310--01 ~ ; ALL |
74381-01E30 |
US $93.17 |
||
|
74842
|
74842
75510-10E00 MEMBER-SIDE,REAR RH8310--01 ~ ; W |
75510-10E00 |
US $699.50 |
||
|
74843
|
74843
75511-10E00 MEMBER-SIDE,REAR LH8310--01 ~ 8709--01; W |
75511-10E00 |
US $699.50 |
||
|
74843
|
74843
75511-31E00 MEMBER-SIDE,REAR LH8709--01 ~ ; W |
75511-31E00 |
US $699.50 |
||
|
74857
|
74857
74560-01E01 PLATE-REAR FLOOR CORNER,RH8310--01 ~ 8508--01; S+W; ﾏﾌﾗ- ﾄﾘﾂｹﾖｳ |
74560-01E01 |
US $7.92 |
||
|
74857
|
74857
76516-10E00 PLATE-CLOSING CROSS8310--01 ~ ; W; ｳｴ ﾐｷﾞ |
76516-10E00 |
US $27.79 |
||
|
74857
|
74857
76517-10E00 PLATE-CLOSING CROSS8310--01 ~ ; W; ｳｴ ﾋﾀﾞﾘ |
76517-10E00 |
US $27.79 |
||
|
74857
|
74857
76518-10E01 PLATE-CLOSING CROSS8310--01 ~ ; W; ｼﾀ |
76518-10E01 |
US $11.66 |
||
|
74857
|
74857
74560-01E01 PLATE-REAR FLOOR CORNER,RH8310--01 ~ 8508--01; S+W; ﾏﾌﾗ- ﾄﾘﾂｹﾖｳ |
74560-01E01 |
US $7.92 |
||
|
74857
|
74857
76516-10E00 PLATE-CLOSING CROSS8310--01 ~ ; W; ｳｴ ﾐｷﾞ |
76516-10E00 |
US $27.79 |
||
|
74857
|
74857
76517-10E00 PLATE-CLOSING CROSS8310--01 ~ ; W; ｳｴ ﾋﾀﾞﾘ |
76517-10E00 |
US $27.79 |
||
|
74857
|
74857
76518-10E01 PLATE-CLOSING CROSS8310--01 ~ ; W; ｼﾀ |
76518-10E01 |
US $11.66 |
||
|
74857
|
74857
74560-01E01 PLATE-REAR FLOOR CORNER,RH8310--01 ~ 8508--01; S+W; ﾏﾌﾗ- ﾄﾘﾂｹﾖｳ |
74560-01E01 |
US $7.92 |
||
|
74857
|
74857
76516-10E00 PLATE-CLOSING CROSS8310--01 ~ ; W; ｳｴ ﾐｷﾞ |
76516-10E00 |
US $27.79 |
||
|
74857
|
74857
76517-10E00 PLATE-CLOSING CROSS8310--01 ~ ; W; ｳｴ ﾋﾀﾞﾘ |
76517-10E00 |
US $27.79 |
||
|
74857
|
74857
76518-10E01 PLATE-CLOSING CROSS8310--01 ~ ; W; ｼﾀ |
76518-10E01 |
US $11.66 |
||
|
74860
|
74860
75620-01E00 MEMBER-CROSS,REAR SEAT8310--01 ~ 8508--01; W |
75620-01E00 |
US $288.86 |
||
|
74860
|
74860
75630-D4000 Member-Cross, Rear Seat8508--01 ~ ; S+K W |
75630-D4000 |
US $184.32 |
||
|
74880
|
74880
75612-10E00 MEMBER-CROSS,REAR8310--01 ~ ; W |
75612-10E00 |
US $159.84 |
||
|
74882
|
74882
84940-10E00 MEMBER-CROSS,REAR INNER8508--01 ~ ; W.(CA18ET+CA18S) |
84940-10E00 |
US $113.33 |
||
|
74884
|
74884
74515-10E00 BOLSTER-REAR FLOOR8310--01 ~ 8508--01; W; (A) ｽﾄﾗｲｶ- ﾂｷ |
74515-10E00 |
US $178.56 |
||
|
74884
|
74884
74515-10E01 BOLSTER-REAR FLOOR8508--01 ~ ; W.CA18S |
74515-10E01 |
US $213.12 |
||
|
74884
|
74884
74517-10E00 BOLSTER-REAR FLOOR8310--01 ~ 8508--01; W; ﾐｷﾞ ｺ-ﾅ- |
74517-10E00 |
US $23.04 |
||
|
74884
|
74884
74518-10E00 BOLSTER-REAR FLOOR8310--01 ~ 8508--01; W; ﾋﾀﾞﾘ ｺ-ﾅ- |
74518-10E00 |
US $24.05 |
||
|
74884
|
74884
74515-10E00 BOLSTER-REAR FLOOR8310--01 ~ 8508--01; W; (A) ｽﾄﾗｲｶ- ﾂｷ |
74515-10E00 |
US $178.56 |
||
|
74884
|
74884
74515-10E01 BOLSTER-REAR FLOOR8508--01 ~ ; W.CA18S |
74515-10E01 |
US $213.12 |
||
|
74884
|
74884
74517-10E00 BOLSTER-REAR FLOOR8310--01 ~ 8508--01; W; ﾐｷﾞ ｺ-ﾅ- |
74517-10E00 |
US $23.04 |
||
|
74884
|
74884
74518-10E00 BOLSTER-REAR FLOOR8310--01 ~ 8508--01; W; ﾋﾀﾞﾘ ｺ-ﾅ- |
74518-10E00 |
US $24.05 |
||
|
74884
|
74884
74515-10E00 BOLSTER-REAR FLOOR8310--01 ~ 8508--01; W; (A) ｽﾄﾗｲｶ- ﾂｷ |
74515-10E00 |
US $178.56 |
||
|
74884
|
74884
74515-10E01 BOLSTER-REAR FLOOR8508--01 ~ ; W.CA18S |
74515-10E01 |
US $213.12 |
||
|
74884
|
74884
74517-10E00 BOLSTER-REAR FLOOR8310--01 ~ 8508--01; W; ﾐｷﾞ ｺ-ﾅ- |
74517-10E00 |
US $23.04 |
||
|
74884
|
74884
74518-10E00 BOLSTER-REAR FLOOR8310--01 ~ 8508--01; W; ﾋﾀﾞﾘ ｺ-ﾅ- |
74518-10E00 |
US $24.05 |
||
|
74884
|
74884
74515-10E00 BOLSTER-REAR FLOOR8310--01 ~ 8508--01; W; (A) ｽﾄﾗｲｶ- ﾂｷ |
74515-10E00 |
US $178.56 |
||
|
74884
|
74884
74515-10E01 BOLSTER-REAR FLOOR8508--01 ~ ; W.CA18S |
74515-10E01 |
US $213.12 |
||
|
74884
|
74884
74517-10E00 BOLSTER-REAR FLOOR8310--01 ~ 8508--01; W; ﾐｷﾞ ｺ-ﾅ- |
74517-10E00 |
US $23.04 |
||
|
74884
|
74884
74518-10E00 BOLSTER-REAR FLOOR8310--01 ~ 8508--01; W; ﾋﾀﾞﾘ ｺ-ﾅ- |
74518-10E00 |
US $24.05 |
||
|
74893
|
74893
75142-01E00
PLATE-SIDE MEMBER
8310--01 ~ ; V+W; ｴﾝｼﾞﾝ ﾏｳﾝﾄ ﾖｳ |
75142-01E00 |
— | ||
|
79106
|
79106
79106-10E00 REINFORCE-TAIL GATE STRIKER8310--01 ~ ; W |
79106-10E00 |
US $85.39 |
||
