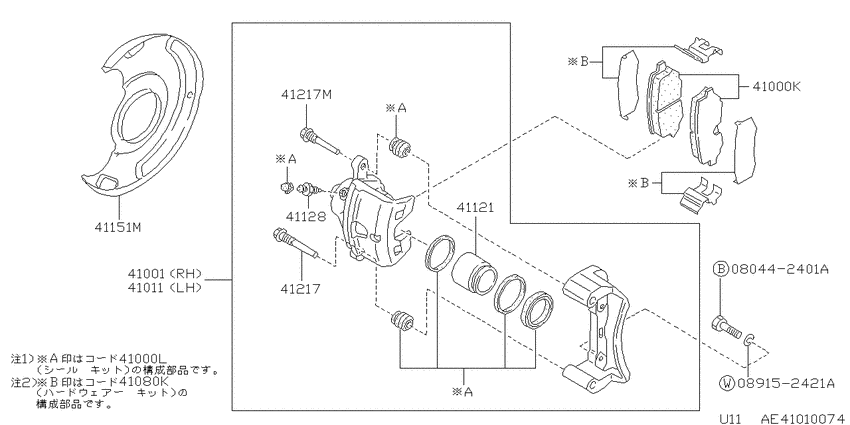

Front brake (1987-09-01 ~ ; V+W.CA18S) Diagram Nissan BLUEBIRD
- Year
- 1985 - 2012
- Sales region
- Japan
- Engine
- CA18S
- transmission
- F5
- grade
- LX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080442401A
|
080442401A
080442401A Bolt-hexagon |
080442401A |
US $1.91 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
41000K
|
41000K
AY040NS005 Pad Kit-Disc Brake8709--01 ~ ; W.CA18S; ﾐｷﾞ ﾄ ﾋﾀﾞﾘ ﾖｳ |
AY040NS005 |
US $142.56 |
||
|
41000K
|
41000K
AY040NS811 Pad Kit-Disc Brake8310--01 ~ 8606--01; (S,K,W).L#+CA18S.SSS; ﾐｷﾞ ﾄ ﾋﾀﾞﾘ ﾖｳ |
AY040NS811 |
US $131.04 |
||
|
41000L
|
41000L
AY600NS038 Seal Kit-Disc Brake8709--01 ~ ; V W.CA18S |
AY600NS038 |
US $66.10 |
||
|
41000L
|
41000L
AY600NS041 Seal Kit-Disc Brake8310--01 ~ 8709--01; L#+CA18S.(SSS+SLXG) |
AY600NS041 |
US $66.10 |
||
|
41001
|
41001
41001-08E90 CALIPER ASSY-FRONT RH,W/O PADS OR SHIMS8310--01 ~ 8508--01; (S,K).CA18S.SSS+W.LX |
41001-08E90 |
US $366.74 |
||
|
41001
|
41001
41001-51E00 CALIPER ASSY-FRONT LH,W/O PADS OR SHIMS8709--01 ~ ; V W.CA18S; |
41001-51E00 |
US $399.31 |
||
|
41011
|
41011
41011-08E90 CALIPER ASSY-FRONT LH,W/O PADS OR SHIMS8310--01 ~ 8508--01; (S,K).CA18S.SSS+W.LX |
41011-08E90 |
US $366.74 |
||
|
41011
|
41011
41011-51E00 CALIPER ASSY-FRONT RH,W/O PADS OR SHIMS8709--01 ~ ; V W.CA18S; |
41011-51E00 |
US $399.31 |
||
|
41080K
|
41080K
41080-02E25 HARDWARE KIT-FRONT DISC BRAKE PAD8310--01 ~ 8508--01; (S,K).CA18S.SSS+W.LX |
41080-02E25 |
US $46.94 |
||
|
41080K
|
41080K
41080-28E25 HARDWARE KIT-FRONT DISC BRAKE PAD8704--01 ~ 8709--01; L#+SSS.CA18S |
41080-28E25 |
US $30.24 |
||
|
41080K
|
41080K
41080-51E25 HARDWARE KIT-FRONT DISC BRAKE PAD8709--01 ~ ; V W.CA18S |
41080-51E25 |
US $82.94 |
||
|
41121
|
41121
4112111L01 Piston-Cylinder8709--01 ~ ; V W.CA18S; |
4112111L01 |
US $68.11 |
||
|
41121
|
41121
41121-W1201 Piston-Cylinder8310--01 ~ 8709--01; L#+SSS.CA18S |
41121-W1201 |
US $47.66 |
||
|
41128
|
41128
41128-U3400
Screw-Bleeder
8310--01 ~ 8709--01; L#+SSS.CA18S |
41128-U3400 |
— | ||
| replacement | |||||
|
41128
|
41128
4112880Z0A Screw-Bleeder8310--01 ~ 8709--01; L#+SSS.CA18S |
4112880Z0A |
US $7.35 |
||
|
41151M
|
41151M
41151-06E00 PLATE-BAFFLE8310--01 ~ 8508--01; L#+SSS+SSSE#; ﾐｷﾞ ﾄ ﾋﾀﾞﾘ ﾖｳ |
41151-06E00 |
US $19.44 |
||
|
41151M
|
41151M
41151-51E00 PLATE-BAFFLE8709--01 ~ ; V+W; ﾐｷﾞ ﾄ ﾋﾀﾞﾘ ﾖｳ |
41151-51E00 |
US $28.51 |
||
|
41217
|
41217
41139-W1200 Pin8310--01 ~ 8709--01; L#+SSS.CA18S |
41139-W1200 |
US $5.18 |
||
|
41217
|
41217
41140-D4401 Pin8709--01 ~ ; V W.CA18S; |
41140-D4401 |
from US $7.84 |
||
|
41217
|
41217
41140-W1200 Pin-Lock8310--01 ~ 8709--01; L#+SSS.CA18S |
41140-W1200 |
US $5.18 |
||
|
41217
|
41217
44140V6701 Pin-Lock8709--01 ~ ; V W.CA18S; |
44140V6701 |
US $9.69 |
||
|
41217M
|
41217M
41140-W1200 Pin-Lock8310--01 ~ 8709--01; L#+SSS.CA18S |
41140-W1200 |
US $5.18 |
||
|
41217M
|
41217M
44140V6701 Pin-Lock8709--01 ~ ; V W.CA18S; |
44140V6701 |
US $9.69 |
||
