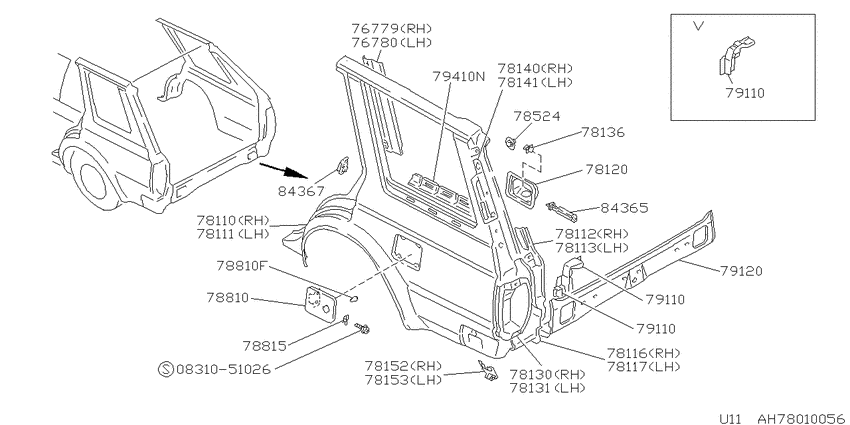

Rear body panel (1983-10-01 ~ ; W+V) Diagram Nissan BLUEBIRD
- Year
- 1985 - 2012
- Sales region
- Japan
- Engine
- CA18S
- transmission
- F5
- grade
- LX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831051026
|
0831051026
08310-51026
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-51026 |
— | ||
| replacement | |||||
|
0831051026
|
0831051026
08360-5102D ｽｸﾘﾕ-,ﾏｼﾝ |
08360-5102D |
US $1.93 |
||
|
76779
|
76779
76620-10E00 REINFORCE ASSY-SEAT BELT ANCHOR,RH8310--01 ~ ; W |
76620-10E00 |
US $53.86 |
||
|
76779
|
76779
76690-01E00 RETAINER-TAPPING,STRIKER8508--01 ~ ; V+W |
76690-01E00 |
US $9.07 |
||
| replacement | |||||
|
76779
|
76779
76690-41L01 Retainer-Tapping, Striker Rh8508--01 ~ ; V+W |
76690-41L01 |
US $9.94 |
||
|
76780
|
76780
76621-10E00 REINFORCE ASSY-SEAT BELT ANCHOR,LH8310--01 ~ ; W |
76621-10E00 |
US $53.86 |
||
|
76780
|
76780
76691-01E00 RETAINER-TAPPING,STRIKER LH8508--01 ~ ; V+W |
76691-01E00 |
US $9.07 |
||
| replacement | |||||
|
76780
|
76780
76691-41L01 Retainer-Tapping, Striker Lh8508--01 ~ ; V+W |
76691-41L01 |
US $9.94 |
||
|
78110
|
78110
78112-10E00 FENDER-REAR,RH8310--01 ~ 8710--01; W |
78112-10E00 |
US $886.42 |
||
|
78110
|
78110
78112-31E30 ﾌｴﾝﾀﾞ-,ﾘﾔ rh8710--01 ~ ; W |
78112-31E30 |
US $886.42 |
||
|
78110
|
78110
26392-01P00 Seal Rubber8310--01 ~ ; V+W |
26392-01P00 |
US $2.74 |
||
|
78110
|
78110
83832-09E00 PLATE-PROTECTOR,GAS FILLER8508--01 ~ ; W |
83832-09E00 |
US $5.18 |
||
|
78111
|
78111
78113-10E00 FENDER-REAR,LH8310--01 ~ 8710--01; W |
78113-10E00 |
US $886.42 |
||
|
78111
|
78111
78113-31E30 ﾌｴﾝﾀﾞ-,ﾘﾔ lh8710--01 ~ ; W |
78113-31E30 |
US $886.42 |
||
|
78112
|
78112
77640-09E00 CONNECTOR-REAR FENDER,RH8310--01 ~ ; V+W |
77640-09E00 |
US $106.85 |
||
|
78113
|
78113
77641-09E00 CONNECTOR-REAR FENDER,LH8310--01 ~ ; V+W |
77641-09E00 |
US $106.85 |
||
|
78116
|
78116
78116-09E00 ｴｸｽﾃﾝｼﾖﾝ,ﾘﾔ ﾌｴﾝﾀﾞ- rh8310--01 ~ ; V+W |
78116-09E00 |
US $71.28 |
||
|
78117
|
78117
78117-09E00 ｴｸｽﾃﾝｼﾖﾝ,ﾘﾔ ﾌｴﾝﾀﾞ- lh8310--01 ~ ; V+W |
78117-09E00 |
US $71.28 |
||
|
78120
|
78120
78120-01E00 BASE ASSY-FUEL FILLER8310--01 ~ ; W |
78120-01E00 |
US $44.06 |
||
|
78130
|
78130
78130-09E00 CASE ASSY-TAIL LAMP,RH8310--01 ~ ; V+W |
78130-09E00 |
US $89.14 |
||
|
78131
|
78131
78131-09E00 CASE ASSY-TAIL LAMP,LH8310--01 ~ ; V+W |
78131-09E00 |
US $89.14 |
||
|
78136
|
78136
78852-U7400 Striker Assy-Lock, Gas Filler8310--01 ~ ; V+W.LX |
78852-U7400 |
US $2.74 |
||
|
78140
|
78140
78142-09E00 PLATE-DRAFTER,RH8310--01 ~ ; V+W |
78142-09E00 |
US $27.22 |
||
|
78141
|
78141
78143-09E00 PLATE-DRAFTER,LH8310--01 ~ 8709--01; V+W |
78143-09E00 |
US $27.22 |
||
|
78152
|
78152
85220-W2700 Bracket-Rear Bumper Side, Rh8310--01 ~ ; V+W |
85220-W2700 |
US $21.31 |
||
|
78153
|
78153
85221-W2700 Bracket-Bumper, Rear Side Lh8310--01 ~ ; V+W |
85221-W2700 |
US $21.31 |
||
|
78524
|
78524
83832-09E00 PLATE-PROTECTOR,GAS FILLER8310--01 ~ ; V+W |
83832-09E00 |
US $5.18 |
||
|
78810
|
78810
78830-01E01 LID ASSY-FUEL FILLER8310--01 ~ 8508--01; V+W.LX |
78830-01E01 |
US $73.30 |
||
|
78810
|
78810
78830-03E01 ﾘﾂﾄﾞ,ｶﾞｽ ﾌｲﾗ-8508--01 ~ ; W |
78830-03E01 |
US $83.81 |
||
|
78810
|
78810
01658-00371 BUMPER-LID8310--01 ~ ; ALL |
01658-00371 |
from US $3.46 |
||
|
78810F
|
78810F
01658-00371 BUMPER-LID8310--01 ~ ; ALL |
01658-00371 |
from US $3.46 |
||
|
78815
|
78815
78836-03E01 SPRING-GAS FILLER LID8709--01 ~ ; W |
78836-03E01 |
US $5.33 |
||
|
78815
|
78815
78836-D4000 Spring-Gas Filler Lid8508--01 ~ 8709--01; W |
78836-D4000 |
US $3.17 |
||
|
79110
|
79110
76516-10E00 PLATE-CLOSING CROSS8310--01 ~ 8508--01; W; ﾐｷﾞ ｳｴｶﾞﾜ |
76516-10E00 |
US $27.79 |
||
|
79110
|
79110
76517-10E00 PLATE-CLOSING CROSS8310--01 ~ 8508--01; W; ﾋﾀﾞﾘ ｳｴｶﾞﾜ |
76517-10E00 |
US $27.79 |
||
|
79110
|
79110
76516-10E00 PLATE-CLOSING CROSS8310--01 ~ 8508--01; W; ﾐｷﾞ ｳｴｶﾞﾜ |
76516-10E00 |
US $27.79 |
||
|
79110
|
79110
76517-10E00 PLATE-CLOSING CROSS8310--01 ~ 8508--01; W; ﾋﾀﾞﾘ ｳｴｶﾞﾜ |
76517-10E00 |
US $27.79 |
||
|
79110
|
79110
76516-10E00 PLATE-CLOSING CROSS8310--01 ~ 8508--01; W; ﾐｷﾞ ｳｴｶﾞﾜ |
76516-10E00 |
US $27.79 |
||
|
79110
|
79110
76517-10E00 PLATE-CLOSING CROSS8310--01 ~ 8508--01; W; ﾋﾀﾞﾘ ｳｴｶﾞﾜ |
76517-10E00 |
US $27.79 |
||
|
79120
|
79120
79121-09E00 PANEL ASSY-REAR8310--01 ~ ; V+W |
79121-09E00 |
US $149.76 |
||
|
79410N
|
79410N
78146-10E00 REINFORCE-REAR FENDER RH8310--01 ~ ; W; ﾐｷﾞ |
78146-10E00 |
US $20.02 |
||
|
79410N
|
79410N
78147-10E00 REINFORCE-REAR FENDER LH8310--01 ~ ; W; ﾋﾀﾞﾘ |
78147-10E00 |
US $20.02 |
||
|
84365
|
84365
78826-01L01
Lock & Rod Assy-Gas Filler Opener
8508--01 ~ ; W |
78826-01L01 |
— | ||
| replacement | |||||
|
84365
|
84365
7882601L0A Lock & Rod Assy-Fuel Opener8508--01 ~ ; W |
7882601L0A |
from US $15.63 |
||
|
84367
|
84367
76590-01E00 RETAINER-TAPPING,STRIKER8310--01 ~ 8508--01; V+W; ｽﾄﾗｲｶ- ﾖｳ |
76590-01E00 |
US $12.10 |
||
