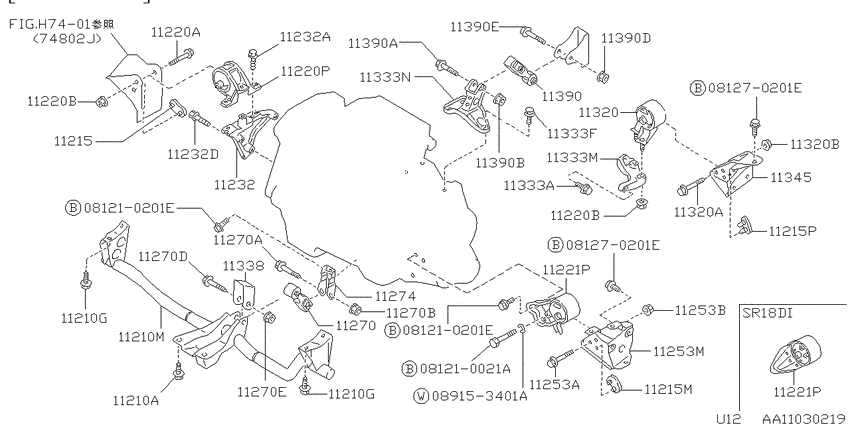

engine & transmission mounting (1989-10-01 ~ ; 4WD.(SR18DI+SR20D+SR20DT).MT) Diagram Nissan BLUEBIRD
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- SR18DI
- drive
- 4WD
- transmission
- MT
- grade
- XEA
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210021A
|
081210021A
08121-0021A
Bolt-hexagon
|
08121-0021A |
— | ||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
089153401A
|
089153401A
089153401A Washer-Spring |
089153401A |
US $0.63 |
||
|
11210A
|
11210A
01125-01221 BOLT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
01125-01221 |
US $2.45 |
||
|
11210G
|
11210G
01125-01061 BOLT-INSULATOR MOUNTING8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
01125-01061 |
US $2.45 |
||
|
11210G
|
11210G
01125-01061 BOLT-INSULATOR MOUNTING8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
01125-01061 |
US $2.45 |
||
|
11210M
|
11210M
11240-70E00 MEMBER ASSY-ENGINE MOUNTING8910--01 ~ 9011--01; $4WD.(SR18DI+SR20D) 4WD.SR20DT.SSSA# |
11240-70E00 |
US $549.41 |
||
|
11210M
|
11210M
11240-76E00 MEMBER ASSY-ENGINE MOUNTING9011--01 ~ ; $4WD.(SR18DI+SR20D) 4WD.SR20DT.SSSA#; |
11240-76E00 |
US $549.41 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING8910--01 ~ ; $CA16S+CA18I+SR18DI+SR20D+SR20DT+LD20 |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING8910--01 ~ ; *CA16S+SR18DI +(CA18I+SR20D+SR20DT+LD20).MT |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
1121585E01 STOPPER-ENGINE MOUNTING8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT); |
1121585E01 |
US $3.60 |
||
|
11215M
|
11215M
1121554E00 STOPPER-ENGINE MOUNTING8910--01 ~ ; *CA16S+SR18DI +(CA18I+SR20D+SR20DT+LD20).MT |
1121554E00 |
US $17.57 |
||
|
11215P
|
11215P
1121585E01 STOPPER-ENGINE MOUNTING8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT); |
1121585E01 |
US $3.60 |
||
|
11220A
|
11220A
01125-01371 BOLT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
01125-01371 |
US $2.45 |
||
|
11220B
|
11220B
0122500062 NUT8910--01 ~ ; $CA16S+CA18I+SR18DI+SR20D+SR20DT+LD20 |
0122500062 |
from US $1.67 |
||
|
11220B
|
11220B
0122500062 NUT8910--01 ~ ; $CA16S+CA18I+SR18DI+SR20D+SR20DT+LD20 |
0122500062 |
from US $1.67 |
||
|
11220P
|
11220P
11210-76E02
INSULATOR-ENGINE MOUNTING,RH
8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
11210-76E02 |
— | ||
|
11221P
|
11221P
11220-76E00 INSULATOR-ENGINE MOUNTING,LH8910--01 ~ ; 4WD.SR18DI.MT |
11220-76E00 |
US $138.67 |
||
|
11221P
|
11221P
11220-76E00 INSULATOR-ENGINE MOUNTING,LH8910--01 ~ ; 4WD.SR18DI.MT |
11220-76E00 |
US $138.67 |
||
|
11232
|
11232
11231-70E02
BRACKET-ENGINE MOUNTING
8910--01 ~ ; SR18DI+SR20D+SR20DT |
11231-70E02 |
— | ||
|
11232
|
11232
0112104241 BOLT8910--01 ~ ; SR18DI+SR20D+SR20DT |
0112104241 |
US $2.45 |
||
|
11232
|
11232
01121-04251 BOLT8910--01 ~ ; SR18DI+SR20D+SR20DT |
01121-04251 |
US $2.45 |
||
|
11232A
|
11232A
0112104241 BOLT8910--01 ~ ; SR18DI+SR20D+SR20DT |
0112104241 |
US $2.45 |
||
|
11232D
|
11232D
01121-04251 BOLT8910--01 ~ ; SR18DI+SR20D+SR20DT |
01121-04251 |
US $2.45 |
||
|
11253A
|
11253A
01125-00661 BOLT8910--01 ~ ; $CA16S+CA18I+SR18DI+SR20D+SR20DT+LD20 |
01125-00661 |
US $4.18 |
||
|
11253B
|
11253B
0122500082 NUT8910--01 ~ ; $CA16S+CA18I+SR18DI+SR20D+SR20DT+LD20 |
0122500082 |
from US $0.61 |
||
|
11253M
|
11253M
11253-70E00 BRACKET-ENGINE MOUNTING,LH8910--01 ~ ; %CA16S+SR18DI +(CA18I+SR20D+SR20DT).MT |
11253-70E00 |
US $73.58 |
||
|
11270
|
11270
11350-76E00 BRACKET ASSY-ENGINE MOUNTING,REAR8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT).MT |
11350-76E00 |
US $82.08 |
||
|
11270
|
11270
0112500891 BOLT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
0112500891 |
US $3.46 |
||
|
11270
|
11270
0122500062 NUT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
0122500062 |
from US $1.67 |
||
|
11270
|
11270
01125-02081 BOLT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
01125-02081 |
US $2.45 |
||
|
11270
|
11270
0122500062 NUT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
0122500062 |
from US $1.67 |
||
|
11270A
|
11270A
0112500891 BOLT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
0112500891 |
US $3.46 |
||
|
11270B
|
11270B
0122500062 NUT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
0122500062 |
from US $1.67 |
||
|
11270D
|
11270D
01125-02081 BOLT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
01125-02081 |
US $2.45 |
||
|
11270E
|
11270E
0122500062 NUT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
0122500062 |
from US $1.67 |
||
|
11274
|
11274
11274-76E00 BRACKET-ENGINE MOUNTING BLOCK,CENTER8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
11274-76E00 |
US $36.58 |
||
|
11320
|
11320
11320-58E02 INSULATOR-ENGINE MOUNTING,REAR8908--01 ~ 8910--01; 4WD.MT |
11320-58E02 |
US $141.55 |
||
|
11320
|
11320
11320-76E00 INSULATOR-ENGINE MOUNTING,REAR8910--01 ~ ; 4WD.SR18DI.MT |
11320-76E00 |
US $102.24 |
||
|
11320
|
11320
01125-01991 BOLT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
01125-01991 |
US $3.46 |
||
|
11320
|
11320
0122500062 NUT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
0122500062 |
from US $1.67 |
||
|
11320
|
11320
0122500082 NUT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
0122500082 |
from US $0.61 |
||
|
11320A
|
11320A
01125-01991 BOLT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
01125-01991 |
US $3.46 |
||
|
11320B
|
11320B
0122500062 NUT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
0122500062 |
from US $1.67 |
||
|
11333A
|
11333A
0112104241 BOLT8910--01 ~ ; 4WD.SR18DI.MT |
0112104241 |
US $2.45 |
||
|
11333F
|
11333F
01125-01811 BOLT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
01125-01811 |
US $3.46 |
||
|
11333M
|
11333M
11335-76E01 BRACKET-ENGINE MOUNTING,REAR8910--01 ~ ; 4WD.SR18DI.MT |
11335-76E01 |
US $97.49 |
||
|
11333N
|
11333N
11332-76E00 BRACKET-ENGINE MOUNTING,REAR8910--01 ~ ; 4WD.SR18DI |
11332-76E00 |
US $144 |
||
|
11338
|
11338
11338-58E00 GUIDE-AIR,ENGINE MOUNTING8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
11338-58E00 |
US $16.42 |
||
|
11345
|
11345
11355-58E00 BUSHING ASSY-MOUNTING8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
11355-58E00 |
US $17.28 |
||
|
11390
|
11390
1136076E00 ﾊﾞﾂﾌｱ- ｱﾂｾﾝﾌﾞﾘ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾘｱ8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT).MT |
1136076E00 |
US $70.99 |
||
|
11390
|
11390
11213-58E00 BOLT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
11213-58E00 |
US $2.45 |
||
|
11390
|
11390
0122500062 NUT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
0122500062 |
from US $1.67 |
||
|
11390
|
11390
0122500062 NUT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
0122500062 |
from US $1.67 |
||
|
11390
|
11390
01125-02081 BOLT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
01125-02081 |
US $2.45 |
||
|
11390A
|
11390A
11213-58E00 BOLT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
11213-58E00 |
US $2.45 |
||
|
11390B
|
11390B
0122500062 NUT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
0122500062 |
from US $1.67 |
||
|
11390D
|
11390D
0122500062 NUT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
0122500062 |
from US $1.67 |
||
|
11390E
|
11390E
01125-02081 BOLT8910--01 ~ ; 4WD.(SR18DI+SR20D+SR20DT) |
01125-02081 |
US $2.45 |
