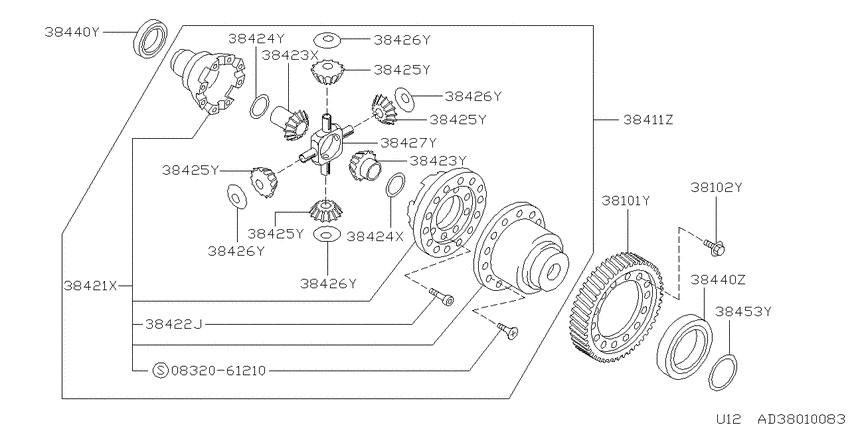

Front final drive (1989-10-01 ~ ; (センター デフ); SR18DI.4WD.MT) Diagram Nissan BLUEBIRD
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- SR18DI
- drive
- 4WD
- transmission
- MT
- grade
- XEA
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0832061210
|
0832061210
08320-61210
New Genuine Part
|
08320-61210 |
— | ||
|
38101Y
|
38101Y
38101-70E06 GEAR-FINAL DRIVE8910--01 ~ ; 4WD.SR18DI.MT |
38101-70E06 |
US $180 |
||
|
38102Y
|
38102Y
38102-31X60 Bolt-Drive Gear8910--01 ~ ; 4WD.SR18DI.MT |
38102-31X60 |
US $2.45 |
||
|
38102Y
|
38102Y
38102-56E00 BOLT-DRIVE GEAR8709--01 ~ 8910--01; MT.4WD |
38102-56E00 |
US $2.91 |
||
|
38411Z
|
38411Z
38711-80E00 CASE COMPL-DIFFERENTIAL,VISCOUS8910--01 ~ ; 4WD.SR18DI.MT |
38711-80E00 |
US $1,568 |
||
|
38421X
|
38421X
38720-56E02 CASE ASSY-DIFFERENTIAL,VISCOUS8709--01 ~ 8910--01; MT>4WD |
38720-56E02 |
US $954.38 |
||
|
38421X
|
38421X
38720-80E00 CASE ASSY-DIFFERENTIAL,VISCOUS8910--01 ~ ; 4WD.SR18DI.MT |
38720-80E00 |
US $1,121.47 |
||
|
38422J
|
38422J
38734-56E00 BOLT-COUPLING,DIFFERENTIAL CASE8709--01 ~ 8910--01; MT.4WD |
38734-56E00 |
US $4.32 |
||
|
38423X
|
38423X
38723-56E01 GEAR-SIDE8709--01 ~ 8910--01; MT.4WD |
38723-56E01 |
US $38.88 |
||
|
38423Y
|
38423Y
38729-56E01 GEAR-SIDE8709--01 ~ 8910--01; MT.4WD |
38729-56E01 |
US $108.72 |
||
|
38424X
|
38424X
38424-56E00 WASHER-THRUST,SIDE GEAR8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.63 |
38424-56E00 |
US $5.04 |
||
|
38424X
|
38424X
38424-56E01 WASHER-THRUST,SIDE GEAR8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.72 |
38424-56E01 |
US $5.04 |
||
|
38424X
|
38424X
38424-56E02 WASHER-THRUST,SIDE GEAR8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.81 |
38424-56E02 |
US $5.04 |
||
|
38424X
|
38424X
38424-56E03 WASHER-THRUST,SIDE GEAR8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.90 |
38424-56E03 |
US $5.04 |
||
|
38424X
|
38424X
38424-56E04 WASHER-THRUST,SIDE GEAR8910--01 ~ ; 4WD.SR18DI.MT; ｾﾝﾀｸ T=0.99 |
38424-56E04 |
US $6.19 |
||
|
38424X
|
38424X
38424-56E05 WASHER-THRUST,SIDE GEAR8910--01 ~ ; 4WD.SR18DI.MT; ｾﾝﾀｸ T=1.08 |
38424-56E05 |
US $6.19 |
||
|
38424X
|
38424X
38424-56E06 WASHER-THRUST,SIDE GEAR8910--01 ~ ; 4WD.SR18DI.MT; ｾﾝﾀｸ T=1.17 |
38424-56E06 |
US $6.19 |
||
|
38424X
|
38424X
38424-56E07 WASHER-THRUST,SIDE GEAR8910--01 ~ ; 4WD.SR18DI.MT; ｾﾝﾀｸ T=1.26 |
38424-56E07 |
US $6.19 |
||
|
38424X
|
38424X
38424-56E08 WASHER-THRUST,SIDE GEAR8910--01 ~ ; 4WD.SR18DI.MT; ｾﾝﾀｸ T=1.35 |
38424-56E08 |
US $6.19 |
||
|
38424Y
|
38424Y
38724-56E00 WASHER-THRUST,SIDE GEAR8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.75-0.80 |
38724-56E00 |
US $4.03 |
||
|
38424Y
|
38424Y
38724-56E01 WASHER-THRUST,SIDE GEAR8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.80-0.85 |
38724-56E01 |
US $4.03 |
||
|
38424Y
|
38424Y
38724-56E02 WASHER-THRUST,SIDE GEAR8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.85-0.90 |
38724-56E02 |
US $4.03 |
||
|
38424Y
|
38424Y
38724-56E03 WASHER-THRUST,SIDE GEAR8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.90-0.95 |
38724-56E03 |
US $4.03 |
||
|
38425Y
|
38425Y
38725-56E01 PINION-MATE8709--01 ~ 8910--01; MT.4WD |
38725-56E01 |
US $54 |
||
|
38425Y
|
38425Y
38725-56E01 PINION-MATE8709--01 ~ 8910--01; MT.4WD |
38725-56E01 |
US $54 |
||
|
38425Y
|
38425Y
38725-56E01 PINION-MATE8709--01 ~ 8910--01; MT.4WD |
38725-56E01 |
US $54 |
||
|
38425Y
|
38425Y
38725-56E01 PINION-MATE8709--01 ~ 8910--01; MT.4WD |
38725-56E01 |
US $54 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE8709--01 ~ 8910--01; MT.4WD |
38426-03E00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE8709--01 ~ 8910--01; MT.4WD |
38426-03E00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE8709--01 ~ 8910--01; MT.4WD |
38426-03E00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE8709--01 ~ 8910--01; MT.4WD |
38426-03E00 |
US $4.18 |
||
|
38427Y
|
38427Y
38727-56E00 SHAFT-PINION MATE8709--01 ~ 8910--01; MT.4WD |
38727-56E00 |
US $69.55 |
||
|
38427Y
|
38427Y
38727-80E00 SHAFT-PINION MATE8910--01 ~ ; 4WD.SR18DI.MT |
38727-80E00 |
US $82.51 |
||
|
38440Y
|
38440Y
38440-06R00 Bearing-Differential Side8709--01 ~ 8807--01; MT.4WD |
38440-06R00 |
US $139.97 |
||
|
38440Y
|
38440Y
38440-06R10 Bearing-Differential Side8807--01 ~ 8910--01; MT.4WD |
38440-06R10 |
US $91.58 |
||
|
38440Z
|
38440Z
31408-31X05 Bearing-Differential Side8910--01 ~ 9009--01; 4WD.SR18DI.MT +*2WD.SR18DI.MT; *=ﾋﾞｽｶｽ LSD |
31408-31X05 |
US $155.52 |
||
|
38440Z
|
38440Z
31408-31X08 Bearing-Differential Side9009--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; LH ﾖｳ *=ﾋﾞｽｶｽ LSD |
31408-31X08 |
from US $90.41 |
||
|
38440Z
|
38440Z
38440-01X00 Bearing-Differential Side8709--01 ~ 8910--01; MT.4WD |
38440-01X00 |
US $104.83 |
||
| replacement | |||||
|
38440Z
|
38440Z
38440-AD301 Bearing-Ring Gear8709--01 ~ 8910--01; MT.4WD |
38440-AD301 |
US $69.70 |
||
|
38453Y
|
38453Y
31439-31X00 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.28 *=ﾋﾞｽｶｽ LSD |
31439-31X00 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X01 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.32 *=ﾋﾞｽｶｽ LSD |
31439-31X01 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X02 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.36 *=ﾋﾞｽｶｽ LSD |
31439-31X02 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X03 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.40 *=ﾋﾞｽｶｽ LSD |
31439-31X03 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X04 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.44 *=ﾋﾞｽｶｽ LSD |
31439-31X04 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X05 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.48 *=ﾋﾞｽｶｽ LSD |
31439-31X05 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X06 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.52 *=ﾋﾞｽｶｽ LSD |
31439-31X06 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X07 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.56 *=ﾋﾞｽｶｽ LSD |
31439-31X07 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X08 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.60 *=ﾋﾞｽｶｽ LSD |
31439-31X08 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X09 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.64 *=ﾋﾞｽｶｽ LSD |
31439-31X09 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X10 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.68 *=ﾋﾞｽｶｽ LSD |
31439-31X10 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X11 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.72 *=ﾋﾞｽｶｽ LSD |
31439-31X11 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X12 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.76 *=ﾋﾞｽｶｽ LSD |
31439-31X12 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X13 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.80 *=ﾋﾞｽｶｽ LSD |
31439-31X13 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X14 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.84 *=ﾋﾞｽｶｽ LSD |
31439-31X14 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X15 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.88 *=ﾋﾞｽｶｽ LSD |
31439-31X15 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X16 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.92 *=ﾋﾞｽｶｽ LSD |
31439-31X16 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X17 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=0.96 *=ﾋﾞｽｶｽ LSD |
31439-31X17 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X18 Shim-Adjust, Side Bearing8910--01 ~ ; 4WD.SR18DI.MT +*2WD.SR18DI.MT; ｾﾝﾀｸ T=1.44 *=ﾋﾞｽｶｽ LSD |
31439-31X18 |
US $7.20 |
||
|
38453Y
|
38453Y
38753-56E00 SHIM-ADJUST,SIDE BEARING8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.36 |
38753-56E00 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E01 SHIM-ADJUST,SIDE BEARING8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.40 |
38753-56E01 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E02 SHIM-ADJUST,SIDE BEARING8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.44 |
38753-56E02 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E03 SHIM-ADJUST,SIDE BEARING8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.48 |
38753-56E03 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E04 SHIM-ADJUST,SIDE BEARING8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.52 |
38753-56E04 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E05 SHIM-ADJUST,SIDE BEARING8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.56 |
38753-56E05 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E06 SHIM-ADJUST,SIDE BEARING8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.60 |
38753-56E06 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E07 SHIM-ADJUST,SIDE BEARING8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.64 |
38753-56E07 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E08 SHIM-ADJUST,SIDE BEARING8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.68 |
38753-56E08 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E09 SHIM-ADJUST,SIDE BEARING8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.72 |
38753-56E09 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E10 SHIM-ADJUST,SIDE BEARING8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.76 |
38753-56E10 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E11 SHIM-ADJUST,SIDE BEARING8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.80 |
38753-56E11 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E12 SHIM-ADJUST,SIDE BEARING8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.84 |
38753-56E12 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E13 SHIM-ADJUST,SIDE BEARING8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.88 |
38753-56E13 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E14 SHIM-ADJUST,SIDE BEARING8709--01 ~ 8910--01; MT.4WD; ｾﾝﾀｸ T=0.92 |
38753-56E14 |
US $10.51 |
||
