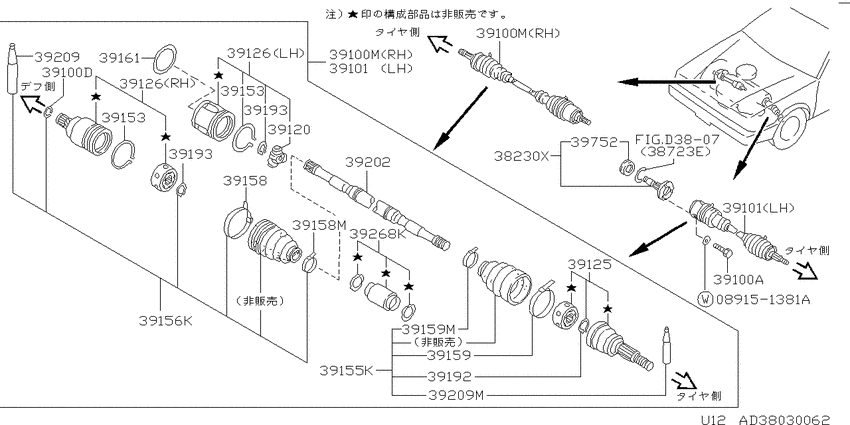

Front drive shaft (ff) (1987-09-01 ~ ; 4WD) Diagram Nissan BLUEBIRD
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- CA18D
- drive
- 4WD
- transmission
- AT
- grade
- SSSA
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.54 |
||
|
38230X
|
38230X
38230-64E00 SHAFT ASSY-SIDE,DIFFERENTIAL8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT |
38230-64E00 |
US $234.72 |
||
|
39100A
|
39100A
39106-64E00 BOLT8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT |
39106-64E00 |
US $2.45 |
||
| replacement | |||||
|
39100A
|
39100A
39106-64E0A Bolt8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT |
39106-64E0A |
US $2.45 |
||
|
39100D
|
39100D
3822530R00 Circlip-Side Gear8902--01 ~ 8910--01; /S.LD20+4WD+2WD.(CA18I+CA18D).AT+2WD.CA18I.DS.MT |
3822530R00 |
US $1.73 |
||
|
39100D
|
39100D
38225-65A10 Clip-Drive Shaft8709--01 ~ 8803--01; 54WD.CA18I.MT +CA18I.AT +CA18I.DS +CA18D +CA18DT +LD20 |
38225-65A10 |
US $1.73 |
||
|
39100M
|
39100M
39100-64E00 SHAFT ASSY-FRONT DRIVE8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT |
39100-64E00 |
US $1,152.62 |
||
|
39100M
|
39100M
39100-64E10 SHAFT ASSY-FRONT DRIVE8709--01 ~ 8910--01; 8*4WD.CA18D +*S.CA18DT.SSSAL.MT +*K.CA18DT.MT +*CA18DT.AT; ｱﾝﾁｽｷﾂﾄﾞ ﾂｷ |
39100-64E10 |
US $1,049.26 |
||
|
39100M
|
39100M
39100-64E00 SHAFT ASSY-FRONT DRIVE8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT |
39100-64E00 |
US $1,152.62 |
||
|
39100M
|
39100M
39100-64E10 SHAFT ASSY-FRONT DRIVE8709--01 ~ 8910--01; 8*4WD.CA18D +*S.CA18DT.SSSAL.MT +*K.CA18DT.MT +*CA18DT.AT; ｱﾝﾁｽｷﾂﾄﾞ ﾂｷ |
39100-64E10 |
US $1,049.26 |
||
|
39101
|
39101
39101-64E00 SHAFT ASSY-FRONT DRIVE,LH8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT |
39101-64E00 |
US $1,152.62 |
||
|
39101
|
39101
39101-64E10 SHAFT ASSY-FRONT DRIVE,LH8709--01 ~ 8910--01; 8*4WD.CA18D +*S.CA18DT.SSSAL.MT +*K.CA18DT.MT +*CA18DT.AT; ｱﾝﾁｽｷﾂﾄﾞ ﾂｷ |
39101-64E10 |
US $1,049.26 |
||
|
39101
|
39101
39101-64E00 SHAFT ASSY-FRONT DRIVE,LH8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT |
39101-64E00 |
US $1,152.62 |
||
|
39101
|
39101
39101-64E10 SHAFT ASSY-FRONT DRIVE,LH8709--01 ~ 8910--01; 8*4WD.CA18D +*S.CA18DT.SSSAL.MT +*K.CA18DT.MT +*CA18DT.AT; ｱﾝﾁｽｷﾂﾄﾞ ﾂｷ |
39101-64E10 |
US $1,049.26 |
||
|
39125
|
39125
39211-61E00 HOUSING-SLIDE JOINT8709--01 ~ 8910--01; G(S+K).4WD +S.(CA18I+LD20).(SES+XES+XESF+SSSX2).2WD +S.CA18I.(S/SEL+SSS) |
39211-61E00 |
US $533.83 |
||
| replacement | |||||
|
39125
|
39125
39211-61E06 JOINT ASSY-OUTER8709--01 ~ 8910--01; G(S+K).4WD +S.(CA18I+LD20).(SES+XES+XESF+SSSX2).2WD +S.CA18I.(S/SEL+SSS) |
39211-61E06 |
US $407.81 |
||
|
39125
|
39125
39211-61E10 JOINT ASSY-OUTER8709--01 ~ 8910--01; 8*4WD.CA18D +*S.CA18DT.SSSAL.MT +*K.CA18DT.MT +*CA18DT.AT; ｱﾝﾁｽｷﾂﾄﾞ ﾂｷ ｾﾝｻ- ﾛ-ﾀ- ｱﾂﾆﾕｳ ﾂﾞﾐ |
39211-61E10 |
US $545.16 |
||
|
39126
|
39126
39711-26E10 JOINT ASSY-INNER8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT; ﾐｷﾞ |
39711-26E10 |
US $376.66 |
||
|
39126
|
39126
39711-64E10 JOINT ASSY-INNER8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT; ﾋﾀﾞﾘ |
39711-64E10 |
US $342.67 |
||
|
39126
|
39126
39711-26E10 JOINT ASSY-INNER8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT; ﾐｷﾞ |
39711-26E10 |
US $376.66 |
||
|
39126
|
39126
39711-64E10 JOINT ASSY-INNER8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT; ﾋﾀﾞﾘ |
39711-64E10 |
US $342.67 |
||
|
39153
|
39153
39735-03P00 Ring-Stopper8709--01 ~ 8910--01; 4WD.CA18I +CA18D +CA18DT |
39735-03P00 |
US $2.45 |
||
|
39153
|
39153
39735-03P00 Ring-Stopper8709--01 ~ 8910--01; 4WD.CA18I +CA18D +CA18DT |
39735-03P00 |
US $2.45 |
||
|
39155K
|
39155K
39241-01E27 REPAIR KIT-DUST BOOT,OUTER8709--01 ~ 8910--01; (S+K).4WD |
39241-01E27 |
US $82.08 |
||
| replacement | |||||
|
39155K
|
39155K
39241-01E86 REPAIR KIT-DUST BOOT,OUTER8709--01 ~ 8910--01; (S+K).4WD |
39241-01E86 |
US $82.08 |
||
|
39156K
|
39156K
39741-04F25 Repair Kit-Seal, Outer8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT; ﾋﾀﾞﾘ |
39741-04F25 |
US $67.37 |
||
|
39156K
|
39156K
39741-16E25 REPAIR KIT-DUST B00T,INNER8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D; ﾐｷﾞ |
39741-16E25 |
US $69.84 |
||
|
39158
|
39158
3974203P00 Band-Boot, Drive Shaft Inner8709--01 ~ 8910--01; 4WD.CA18I +CA18D +CA18DT; ﾐｷﾞ |
3974203P00 |
US $9.69 |
||
|
39158
|
39158
39742-W1200 Band-Dust Cover, Inner8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT; ﾋﾀﾞﾘ |
39742-W1200 |
US $4.03 |
||
|
39158
|
39158
39242-01E10 BAND-BOOT,DRIVE SHAFT8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT; ﾐｷﾞ |
39242-01E10 |
US $4.64 |
||
|
39158
|
39158
39742W1205 Band-Dust Cover, Shaft8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT; ﾋﾀﾞﾘ |
39742W1205 |
US $8.90 |
||
|
39158M
|
39158M
39242-01E10 BAND-BOOT,DRIVE SHAFT8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT; ﾐｷﾞ |
39242-01E10 |
US $4.64 |
||
|
39158M
|
39158M
39742W1205 Band-Dust Cover, Shaft8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT; ﾋﾀﾞﾘ |
39742W1205 |
US $8.90 |
||
|
39159
|
39159
3924201E00 BAND-BOOT,DRIVE SHAFT INNER8709--01 ~ 8910--01; P(S+K).4WD S.(CA18I+LD20).(SES+XES)2WD S.CA18I.(S/SEL+SSS) K.CA18I.(XES+S/SEL+SSS |
3924201E00 |
US $4.25 |
||
|
39159
|
39159
39242-01E12 BAND-RUBBER BOOT,SHAFT8709--01 ~ 8910--01; P(S+K).4WD S.(CA18I+LD20).(SES+XES)2WD S.CA18I.(S/SEL+SSS) K.CA18I.(XES+S/SEL+SSS |
39242-01E12 |
US $4.61 |
||
|
39159M
|
39159M
39242-01E12 BAND-RUBBER BOOT,SHAFT8709--01 ~ 8910--01; P(S+K).4WD S.(CA18I+LD20).(SES+XES)2WD S.CA18I.(S/SEL+SSS) K.CA18I.(XES+S/SEL+SSS |
39242-01E12 |
US $4.61 |
||
|
39192
|
39192
3923401E00 RING-SNAP,BEARING RACE8709--01 ~ 8910--01; (S+K).4WD |
3923401E00 |
from US $1.22 |
||
|
39202
|
39202
39204-64E00 SHAFT SUB ASSY-FRONT DRIVE8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT; ﾐｷﾞ |
39204-64E00 |
US $210.24 |
||
|
39202
|
39202
39205-64E00 SHAFT-FRONT DRIVE,LH8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT; ﾋﾀﾞﾘ |
39205-64E00 |
US $283.68 |
||
|
39209
|
39209
39709-16E25 GREASE-INNER8709--01 ~ 8904--01; "2WD.CA18D+CA18DT+4WD.(CA18I+CA18D) |
39709-16E25 |
US $26.21 |
||
| replacement | |||||
|
39209
|
39209
C97092U618 Grease-Inner8709--01 ~ 8904--01; "2WD.CA18D+CA18DT+4WD.(CA18I+CA18D) |
C97092U618 |
US $23.33 |
||
|
39209
|
39209
39709-55E25 GREASE-INNER8904--01 ~ 8910--01; "2WD.CA18D+CA18DT+4WD.(CA18I+CA18D) |
39709-55E25 |
US $30.96 |
||
| replacement | |||||
|
39209
|
39209
C97092U618 Grease-Inner8904--01 ~ 8910--01; "2WD.CA18D+CA18DT+4WD.(CA18I+CA18D) |
C97092U618 |
US $23.33 |
||
|
39209
|
39209
39209-01A27 Grease-Outer8709--01 ~ 8910--01; 4WD.CA18I +CA18D CA18DT |
39209-01A27 |
US $27.65 |
||
|
39209
|
39209
39209-01A26
Grease-Outer
8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT |
39209-01A26 |
— | ||
| replacement | |||||
|
39209
|
39209
C9BDA-0M62H C9BDA0M62H8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT |
C9BDA-0M62H |
US $91.35 |
||
|
39209
|
39209
39709-W1526 Grease-Inner8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT |
39709-W1526 |
US $14.69 |
||
|
39209M
|
39209M
39209-01A27 Grease-Outer8709--01 ~ 8910--01; 4WD.CA18I +CA18D CA18DT |
39209-01A27 |
US $27.65 |
||
|
39752
|
39752
39752-64E00 SHIELD-DUST8709--01 ~ 8910--01; 4WD.CA18I +4WD.CA18D +CA18DT |
39752-64E00 |
US $4.32 |
||
