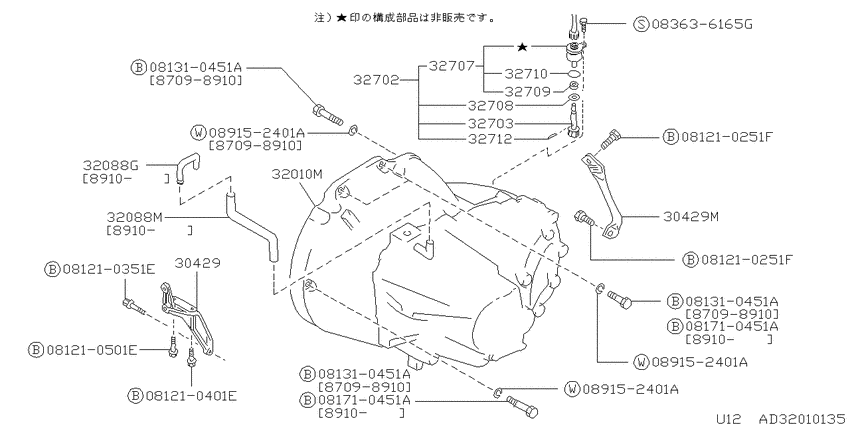

Transmission & transaxle assembly (1987-09-01 ~ ; LD20･2WD.MT) Diagram Nissan BLUEBIRD
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- LD20
- drive
- 2WD
- transmission
- MT
- grade
- XES
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210251F
|
081210251F
08121-0251F
Bolt-hexagon
|
08121-0251F |
— | ||
|
081210251F
|
081210251F
08121-0251F
Bolt-hexagon
|
08121-0251F |
— | ||
|
081210351E
|
081210351E
081210351E Bolt-hexagon |
081210351E |
US $1.05 |
||
|
081210401E
|
081210401E
081210401E Bolt-hexagon |
081210401E |
US $1.11 |
||
|
081210501E
|
081210501E
08121-0501E
Bolt-hexagon
|
08121-0501E |
— | ||
|
081310451A
|
081310451A
08131-0451A
Bolt-hexagon
|
08131-0451A |
— | ||
|
081310451A
|
081310451A
08131-0451A
Bolt-hexagon
|
08131-0451A |
— | ||
|
081310451A
|
081310451A
08131-0451A
Bolt-hexagon
|
08131-0451A |
— | ||
|
081710451A
|
081710451A
08171-0451A Bolt-hexagon |
08171-0451A |
US $1.09 |
||
|
081710451A
|
081710451A
08171-0451A Bolt-hexagon |
08171-0451A |
US $1.09 |
||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $2.21 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $2.21 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $2.21 |
||
|
30429
|
30429
30431-51E02 Gusset-Transmission To Engine8709--01 ~ ; LD20.MT; ﾌﾛﾝﾄ ﾖｳ |
30431-51E02 |
US $43.06 |
||
|
30429
|
30429
30432-57E00 Gusset-Transmission To Engine8910--01 ~ ; LD20.MT; ﾘﾔ ﾖｳ |
30432-57E00 |
US $31.10 |
||
|
30429
|
30429
31076-05E00 Gusset-Transmission To Engine8709--01 ~ 8910--01; LD20.MT; ﾘﾔ ﾖｳ |
31076-05E00 |
US $29.38 |
||
|
30429M
|
30429M
30432-57E00 Gusset-Transmission To Engine8910--01 ~ ; LD20.MT; ﾘﾔ ﾖｳ |
30432-57E00 |
US $31.10 |
||
|
30429M
|
30429M
31076-05E00 Gusset-Transmission To Engine8709--01 ~ 8910--01; LD20.MT; ﾘﾔ ﾖｳ |
31076-05E00 |
US $29.38 |
||
|
32010M
|
32010M
32010-51E04 TRANSAXLE ASSY-MANUAL8709--01 ~ 8910--01; LD20.(SES+XES#).MT; RS5F50A |
32010-51E04 |
US $2,408 |
||
|
32010M
|
32010M
32010-51E14 TRANSAXLE ASSY-MANUAL8910--01 ~ ; LD20.(SES+XES+FES).MT; RS5F50A |
32010-51E14 |
US $2,408 |
||
|
32088M
|
32088M
31098-06R00 Hose-Breather8910--01 ~ ; 4WD.(SR18DI+SR20DT).MT +LD20.MT |
31098-06R00 |
US $5.90 |
||
|
32702
|
32702
32702-16E12 PINION ASSY-SPEEDOMETER8709--01 ~ 8910--01; /CA18I.DS.MT CA18D.MT.2WD LD20.MT; 32T |
32702-16E12 |
US $27.22 |
||
|
32703
|
32703
32703-05E32 PINION-SPEEDOMETER8709--01 ~ 8910--01; /CA18I.DS.MT CA18D.MT.2WD LD20.MT; 32T |
32703-05E32 |
US $18.14 |
||
|
32707
|
32707
32707-16E00 SLEEVE-SPEEDOMETER PINION8709--01 ~ 8910--01; /CA18I.DS.MT CA18D.MT.2WD LD20.MT |
32707-16E00 |
US $15.70 |
||
|
32708
|
32708
32713-M8001 Washer-Speedometer Pinion8709--01 ~ ; MT.2WD; ｾﾝﾀｸ T=0.61 |
32713-M8001 |
US $0.82 |
||
|
32708
|
32708
32713-M8002 Washer-Speedometer Pinion8709--01 ~ ; MT.2WD; ｾﾝﾀｸ T=0.67 |
32713-M8002 |
US $0.86 |
||
|
32708
|
32708
32713-M8003 Washer-Speedometer Pinion8709--01 ~ ; MT.2WD; ｾﾝﾀｸ T=0.73 |
32713-M8003 |
US $0.86 |
||
|
32708
|
32708
32713-M8004 Washer-Speedometer Pinion8709--01 ~ ; MT.2WD; ｾﾝﾀｸ T=0.79 |
32713-M8004 |
US $0.86 |
||
|
32708
|
32708
32713-M8005 Washer-Speedometer Pinion8709--01 ~ ; MT.2WD; ｾﾝﾀｸ T=0.85 |
32713-M8005 |
US $0.86 |
||
|
32708
|
32708
32713-M8006 Washer-Speedometer Pinion8709--01 ~ ; MT.2WD; ｾﾝﾀｸ T=0.91 |
32713-M8006 |
US $0.86 |
||
|
32708
|
32708
32713-M8007 Washer-Speedometer Pinion8709--01 ~ ; MT.2WD; ｾﾝﾀｸ T=0.97 |
32713-M8007 |
US $0.86 |
||
|
32708
|
32708
32713-M8008 Washer-Speedometer Pinion8709--01 ~ ; MT.2WD; ｾﾝﾀｸ T=1.03 |
32713-M8008 |
US $0.86 |
||
|
32708
|
32708
32713-M8009 Washer-Speedometer Pinion8709--01 ~ ; MT.2WD; ｾﾝﾀｸ T=1.09 |
32713-M8009 |
US $0.86 |
||
|
32708
|
32708
32713-M8010 Washer-Speedometer Pinion8709--01 ~ ; MT.2WD; ｾﾝﾀｸ T=1.15 |
32713-M8010 |
US $0.86 |
||
|
32709
|
32709
3270958S00 Seal-Oil, Speedometer Pinion8709--01 ~ ; MT.2WD; |
3270958S00 |
from US $0.91 |
||
|
32710
|
32710
32710M8000 Seal-O Ring, Speedometer Pinion8709--01 ~ ; MT.2WD; |
32710M8000 |
US $2.78 |
||
|
32712
|
32712
3287314600 Pin-Retainer, Speedometer Pinion8709--01 ~ ; MT.2WD |
3287314600 |
US $2.21 |
