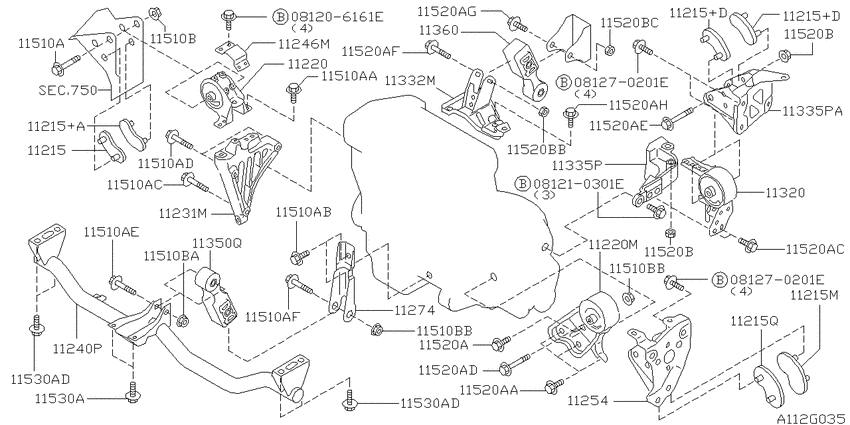

Engine & transmission mounting (1991-09-01 ~ 1993-08-01; 4WD.SR18DE.MT +4WD.SR20DE.MT) Diagram Nissan BLUEBIRD
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 4WD
- transmission
- MT
- grade
- SSSGA
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081206161E
|
081206161E
08120-6161E
BOLTHEX
|
08120-6161E |
— | ||
|
081210301E
|
081210301E
081210301E BOLTHEX |
081210301E |
from US $1.07 |
||
|
081270201E
|
081270201E
081270201E
ﾎﾞﾙﾄ,ﾍｸｻｺﾞﾝ
|
081270201E |
— | ||
|
081270201E
|
081270201E
081270201E
ﾎﾞﾙﾄ,ﾍｸｻｺﾞﾝ
|
081270201E |
— | ||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
1121554E00 |
US $17.08 |
||
|
11215
|
11215
11215-1E800 Stopper-Engine Mounting9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11215-1E800 |
US $9.66 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
1121554E00 |
US $17.08 |
||
|
11215
|
11215
11215-0E000 STOPPER-ENGINE MOUNTING9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11215-0E000 |
US $13.86 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
1121554E00 |
US $17.08 |
||
|
11215+A
|
11215+A
11215-1E800 Stopper-Engine Mounting9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11215-1E800 |
US $9.66 |
||
|
11215+D
|
11215+D
1121554E00 STOPPER-ENGINE MOUNTING9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
1121554E00 |
US $17.08 |
||
|
11215+D
|
11215+D
1121554E00 STOPPER-ENGINE MOUNTING9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
1121554E00 |
US $17.08 |
||
|
11215M
|
11215M
11215-0E000 STOPPER-ENGINE MOUNTING9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11215-0E000 |
US $13.86 |
||
|
11215Q
|
11215Q
1121554E00 STOPPER-ENGINE MOUNTING9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
1121554E00 |
US $17.08 |
||
|
11220
|
11220
11210-0E601 Insulator-Engine Mounting, Front9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11210-0E601 |
US $229.60 |
||
|
11220
|
11220
11210-0E610 Insulator-Engine Mounting, Front9308--01 ~ ; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11210-0E610 |
US $189 |
||
|
11220
|
11220
11220-0E600 Insulator Assy-Engine Mounting, Front Lh9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11220-0E600 |
US $154 |
||
|
11220M
|
11220M
11220-0E600 Insulator Assy-Engine Mounting, Front Lh9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11220-0E600 |
US $154 |
||
|
11231M
|
11231M
11231-0E601
Bracket-Engine Mounting
9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11231-0E601 |
— | ||
|
11240P
|
11240P
11240-0E600 Member Assy-Engine Mounting9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11240-0E600 |
US $390.60 |
||
|
11246M
|
11246M
112460E000 DAMPER ASSY-MASS9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
112460E000 |
US $78.68 |
||
|
11254
|
11254
11253-0E001 SUPPORT-ENGINE MOUNTING,LH9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11253-0E001 |
US $75.46 |
||
|
11274
|
11274
11274-76E00 BRACKET-ENGINE MOUNTING BLOCK,CENTER9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11274-76E00 |
US $35.56 |
||
|
11320
|
11320
11320-0E620 Insulator-Engine Mounting, Rear9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11320-0E620 |
US $189 |
||
|
11332M
|
11332M
11332-0E620 Bracket-Engine Mounting, Rear9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11332-0E620 |
US $120.82 |
||
|
11335P
|
11335P
11335-0E620 Bracket-Engine Mounting, Lh Rear9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11335-0E620 |
US $134.40 |
||
|
11335P
|
11335P
11355-0E601 Bracket-Engine Mounting, Lh Rear9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11355-0E601 |
US $53.90 |
||
|
11335PA
|
11335PA
11355-0E601 Bracket-Engine Mounting, Lh Rear9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11355-0E601 |
US $53.90 |
||
|
11350Q
|
11350Q
11350-76E00 BRACKET ASSY-ENGINE MOUNTING,REAR9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11350-76E00 |
US $79.80 |
||
|
11360
|
11360
11360-0E600 Buffer Assy-Engine Mounting, Rear9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11360-0E600 |
US $120.82 |
||
|
11510A
|
11510A
01125-02361 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-02361 |
US $2.38 |
||
|
11510A
|
11510A
0112104241 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0112104241 |
US $2.38 |
||
|
11510A
|
11510A
01125-01811 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-01811 |
US $3.36 |
||
|
11510A
|
11510A
01121-04251 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01121-04251 |
US $2.38 |
||
|
11510A
|
11510A
01121-05681 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01121-05681 |
US $2.38 |
||
|
11510A
|
11510A
01125-02081 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-02081 |
US $2.38 |
||
|
11510A
|
11510A
01125-01681 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-01681 |
US $2.38 |
||
|
11510AA
|
11510AA
0112104241 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0112104241 |
US $2.38 |
||
|
11510AB
|
11510AB
01125-01811 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-01811 |
US $3.36 |
||
|
11510AC
|
11510AC
01121-04251 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01121-04251 |
US $2.38 |
||
|
11510AD
|
11510AD
01121-05681 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01121-05681 |
US $2.38 |
||
|
11510AE
|
11510AE
01125-02081 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-02081 |
US $2.38 |
||
|
11510AF
|
11510AF
01125-01681 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-01681 |
US $2.38 |
||
|
11510B
|
11510B
0122500182 NUT9505--01 ~ ; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0122500182 |
US $1.68 |
||
|
11510B
|
11510B
11258D0101 Nut9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11258D0101 |
from US $2.52 |
||
|
11510B
|
11510B
0122500082 NUT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0122500082 |
from US $0.56 |
||
|
11510B
|
11510B
0122500082 NUT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0122500082 |
from US $0.56 |
||
|
11510BA
|
11510BA
0122500082 NUT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0122500082 |
from US $0.56 |
||
|
11510BB
|
11510BB
0122500082 NUT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0122500082 |
from US $0.56 |
||
|
11510BB
|
11510BB
0122500082 NUT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0122500082 |
from US $0.56 |
||
|
11520A
|
11520A
01121-02601 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01121-02601 |
US $2.38 |
||
|
11520A
|
11520A
0112502681 BOLT9308--01 ~ ; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0112502681 |
US $2.38 |
||
|
11520A
|
11520A
01125-02501 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-02501 |
US $2.38 |
||
|
11520A
|
11520A
01125-01791 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-01791 |
US $2.38 |
||
|
11520A
|
11520A
01121-02601 BOLT9308--01 ~ ; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01121-02601 |
US $2.38 |
||
|
11520A
|
11520A
0112502681 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0112502681 |
US $2.38 |
||
|
11520A
|
11520A
01125-02361 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-02361 |
US $2.38 |
||
|
11520A
|
11520A
11213-60Y00 Bolt9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11213-60Y00 |
US $2.38 |
||
|
11520A
|
11520A
01125-02561 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-02561 |
US $2.38 |
||
|
11520A
|
11520A
01125-02511 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-02511 |
US $2.38 |
||
|
11520AA
|
11520AA
01125-02501 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-02501 |
US $2.38 |
||
|
11520AC
|
11520AC
01125-01791 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-01791 |
US $2.38 |
||
|
11520AD
|
11520AD
01121-02601 BOLT9308--01 ~ ; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01121-02601 |
US $2.38 |
||
|
11520AD
|
11520AD
0112502681 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0112502681 |
US $2.38 |
||
|
11520AE
|
11520AE
01125-02361 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-02361 |
US $2.38 |
||
|
11520AF
|
11520AF
11213-60Y00 Bolt9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11213-60Y00 |
US $2.38 |
||
|
11520AG
|
11520AG
01125-02561 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-02561 |
US $2.38 |
||
|
11520AH
|
11520AH
01125-02511 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-02511 |
US $2.38 |
||
|
11520B
|
11520B
11258D0101 Nut9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11258D0101 |
from US $2.52 |
||
|
11520B
|
11520B
11258D0101 Nut9308--01 ~ ; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11258D0101 |
from US $2.52 |
||
|
11520B
|
11520B
0122500082 NUT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0122500082 |
from US $0.56 |
||
|
11520B
|
11520B
0122500082 NUT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0122500082 |
from US $0.56 |
||
|
11520B
|
11520B
11258D0101 Nut9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11258D0101 |
from US $2.52 |
||
|
11520B
|
11520B
11258D0101 Nut9308--01 ~ ; 4WD.SR18DE.MT +4WD.SR20DE.MT |
11258D0101 |
from US $2.52 |
||
|
11520B
|
11520B
0122500082 NUT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0122500082 |
from US $0.56 |
||
|
11520B
|
11520B
0122500082 NUT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0122500082 |
from US $0.56 |
||
|
11520BB
|
11520BB
0122500082 NUT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0122500082 |
from US $0.56 |
||
|
11520BC
|
11520BC
0122500082 NUT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
0122500082 |
from US $0.56 |
||
|
11530A
|
11530A
01125-01221 BOLT9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-01221 |
US $2.38 |
||
|
11530A
|
11530A
01125-01061 BOLT-INSULATOR MOUNTING9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-01061 |
US $2.38 |
||
|
11530AD
|
11530AD
01125-01061 BOLT-INSULATOR MOUNTING9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-01061 |
US $2.38 |
||
|
11530AD
|
11530AD
01125-01061 BOLT-INSULATOR MOUNTING9109--01 ~ 9308--01; 4WD.SR18DE.MT +4WD.SR20DE.MT |
01125-01061 |
US $2.38 |
||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
