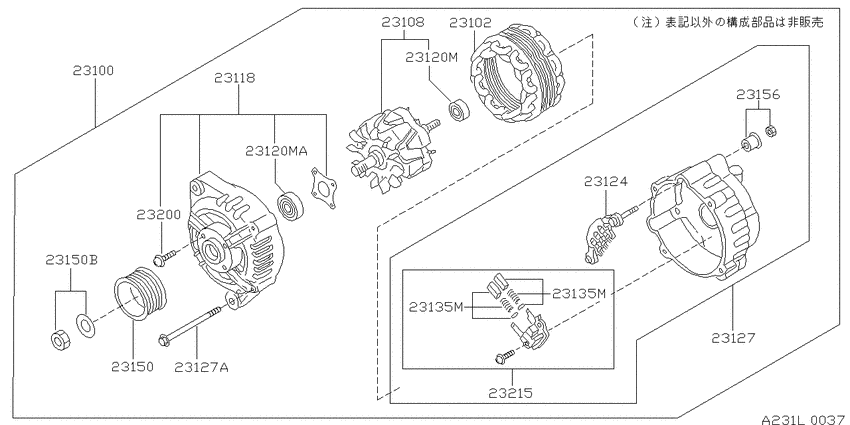

Alternator (1993-08-01 ~ ; 三菱; KA24DE) Diagram Nissan BLUEBIRD
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- KA24DE
- drive
- 2WD
- transmission
- AT
- grade
- SSSZ
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-1E810 Alternator Assy9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23100-1E810 |
US $1,946 |
||
|
23100
|
23100
1192812G01 Bolt9308--01 ~ ; KA24DE |
1192812G01 |
US $2.45 |
||
|
23100
|
23100
0122100381 NUT9308--01 ~ ; KA24DE |
0122100381 |
from US $5.85 |
||
|
23102
|
23102
23102-85L11 Stator Assy9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23102-85L11 |
US $502.68 |
||
|
23108
|
23108
23108-0P610 Rotor Assy9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23108-0P610 |
US $339.84 |
||
|
23118
|
23118
23118-1E810 Cover Assy-Front9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23118-1E810 |
US $213.12 |
||
|
23120M
|
23120M
23120-30R10
Bearing-Ball
9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23120-30R10 |
— | ||
| replacement | |||||
|
23120M
|
23120M
2312051E10 BEARING-BALL9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
2312051E10 |
from US $34.67 |
||
|
23120M
|
23120M
23120-22J20 Bearing-Ball9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23120-22J20 |
from US $22.31 |
||
|
23120MA
|
23120MA
23120-22J20 Bearing-Ball9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23120-22J20 |
from US $22.31 |
||
|
23124
|
23124
23124-1E810 Rectifier Assy9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23124-1E810 |
US $317.18 |
||
|
23127
|
23127
23127-1E810 Cover Assy-Rear9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23127-1E810 |
US $1,189.44 |
||
|
23127
|
23127
23131-20P10 Bolt-Through9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23131-20P10 |
US $5.04 |
||
|
23127A
|
23127A
23131-20P10 Bolt-Through9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23131-20P10 |
US $5.04 |
||
|
23135M
|
23135M
231420B000 Brush-F9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
231420B000 |
from US $13.54 |
||
|
23135M
|
23135M
231420B000 Brush-F9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
231420B000 |
from US $13.54 |
||
|
23150
|
23150
23150-1E810 Pulley Assy9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23150-1E810 |
US $98.06 |
||
|
23150
|
23150
231530P610 Nut Assy-Pulley9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
231530P610 |
US $5.90 |
||
|
23150B
|
23150B
231530P610 Nut Assy-Pulley9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
231530P610 |
US $5.90 |
||
|
23156
|
23156
23156-1E810 Terminal Assy-B9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23156-1E810 |
US $10.94 |
||
|
23200
|
23200
23200-20P10 Screw Set9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23200-20P10 |
US $5.04 |
||
|
23215
|
23215
23215-0E711 Regulator Assy-Ic9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23215-0E711 |
US $321.43 |
||
