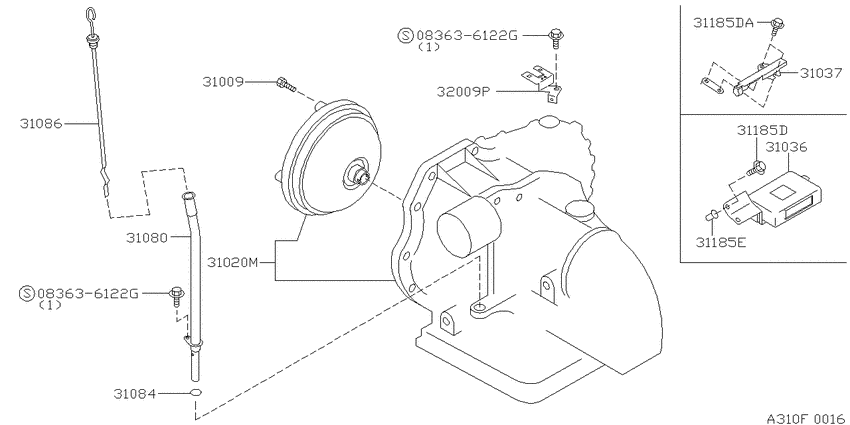

Auto transmission,transaxle & fitting (1993-08-01 ~ ; $アッセンブリー&フイッティングパーツ; KA24DE.AT) Diagram Nissan BLUEBIRD
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- KA24DE
- drive
- 2WD
- transmission
- AT
- grade
- SSSZ
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
31009
|
31009
3100921X00 Bolt-Self Lock9308--01 ~ ; KA24DE.AT |
3100921X00 |
from US $2.65 |
||
|
31020M
|
31020M
31020-80X10 Transaxle Assy-Automatic9308--01 ~ ; KA24DE.AT; RE4F04V ﾋﾞｽｶｽLSD |
31020-80X10 |
US $5,068 |
||
|
31036
|
31036
31036-4E100 CONTROL UNIT-SHIFT9308--01 ~ ; KA24DE.AT |
31036-4E100 |
US $525.34 |
||
|
31037
|
31037
31037-0E600 Resistor Assy-Auto Transmission9308--01 ~ ; KA24DE.AT |
31037-0E600 |
from US $39.31 |
||
| replacement | |||||
|
31037
|
31037
31037-AN100 Resistor Assy-Auto Transmission9308--01 ~ ; KA24DE.AT |
31037-AN100 |
from US $39.31 |
||
|
31080
|
31080
31080-3E600 Pipe Assy-Oil Charging9308--01 ~ ; KA24DE.AT |
31080-3E600 |
US $77.18 |
||
|
31084
|
31084
31084M7500 Seal-O Ring9308--01 ~ ; KA24DE.AT |
31084M7500 |
US $1.15 |
||
|
31086
|
31086
31086-1E400 Gauge Assy-Oil Level9308--01 ~ ; KA24DE.AT |
31086-1E400 |
US $26.50 |
||
|
31185D
|
31185D
01456-00501 SCREW9308--01 ~ ; KA24DE.AT |
01456-00501 |
US $1.73 |
||
|
31185D
|
31185D
01436-01191
SCREW
9308--01 ~ ; KA24DE.AT |
01436-01191 |
— | ||
| replacement | |||||
|
31185D
|
31185D
083686165G SCRHEX HDPP W9308--01 ~ ; KA24DE.AT |
083686165G |
from US $0.63 |
||
|
31185DA
|
31185DA
01436-01191
SCREW
9308--01 ~ ; KA24DE.AT |
01436-01191 |
— | ||
| replacement | |||||
|
31185DA
|
31185DA
083686165G SCRHEX HDPP W9308--01 ~ ; KA24DE.AT |
083686165G |
from US $0.63 |
||
|
31185E
|
31185E
01281-00601
GROMMET-SCREW
9308--01 ~ ; KA24DE.AT |
01281-00601 |
— | ||
| replacement | |||||
|
31185E
|
31185E
0128101231 GROMMET-SCREW9308--01 ~ ; KA24DE.AT |
0128101231 |
from US $2.24 |
||
|
32009P
|
32009P
32009-1E401
Bracket-Switch Connector
9308--01 ~ ; KA24DE.AT |
32009-1E401 |
— | ||
