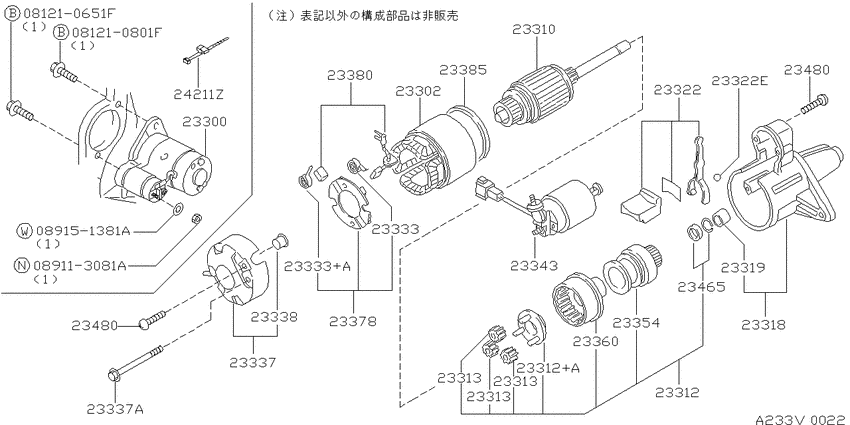

Starter motor (1993-08-01 ~ ; 三菱; KA24DE) Diagram Nissan BLUEBIRD
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- KA24DE
- drive
- 2WD
- transmission
- AT
- grade
- SSSZ
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210651F
|
081210651F
08121-0651F
Bolt-hexagon
|
08121-0651F |
— | ||
|
081210801F
|
081210801F
08121-0801F
Bolt-hexagon
|
08121-0801F |
— | ||
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.54 |
||
|
23300
|
23300
23300-4E100 MOTOR ASSY-STARTER9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23300-4E100 |
US $1,355.11 |
||
|
23302
|
23302
23302-42L70 Yoke Assy9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23302-42L70 |
US $259.20 |
||
|
23310
|
23310
23310-01N11 Armature Assy9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23310-01N11 |
US $671.18 |
||
|
23312
|
23312
23312-84A18 Pinion Assy9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23312-84A18 |
US $378.07 |
||
|
23312
|
23312
23312-20R15 Shaft Assy-Starter Motor9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23312-20R15 |
US $453.12 |
||
|
23312+A
|
23312+A
23312-20R15 Shaft Assy-Starter Motor9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23312-20R15 |
US $453.12 |
||
|
23313
|
23313
23361-42L70 Planet Gear9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23361-42L70 |
US $22.46 |
||
|
23313
|
23313
23361-42L70 Planet Gear9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23361-42L70 |
US $22.46 |
||
|
23313
|
23313
23361-42L70 Planet Gear9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23361-42L70 |
US $22.46 |
||
|
23318
|
23318
23318-1E410 Case Assy-Gear9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23318-1E410 |
US $191.52 |
||
|
23319
|
23319
23319M8011 Metal-Gear Case9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23319M8011 |
US $5.18 |
||
|
23322
|
23322
23322-1E410 Lever Set-Shift9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23322-1E410 |
US $25.49 |
||
|
23322
|
23322
23325-42L70 Ball-Shift Lever9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23325-42L70 |
from US $1.39 |
||
|
23322E
|
23322E
23325-42L70 Ball-Shift Lever9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23325-42L70 |
from US $1.39 |
||
|
23333
|
23333
23333-42L70 Spring-Brush9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23333-42L70 |
US $4.03 |
||
|
23333
|
23333
23333-42L71 Spring9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23333-42L71 |
US $4.03 |
||
|
23333+A
|
23333+A
23333-42L71 Spring9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23333-42L71 |
US $4.03 |
||
|
23337
|
23337
23337-1E410
Cover Assy-Rear
9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23337-1E410 |
— | ||
|
23337
|
23337
23340-20P10 Bolt-Through9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23340-20P10 |
US $4.18 |
||
| replacement | |||||
|
23337
|
23337
233404W01A Bolt-Through9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
233404W01A |
US $4.03 |
||
|
23337A
|
23337A
23340-20P10 Bolt-Through9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23340-20P10 |
US $4.18 |
||
| replacement | |||||
|
23337A
|
23337A
233404W01A Bolt-Through9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
233404W01A |
US $4.03 |
||
|
23338
|
23338
23338-01N10 Metal-Rear Cover9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23338-01N10 |
from US $9.36 |
||
|
23343
|
23343
23343-1E410 Switch Assy-Magnetic9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23343-1E410 |
US $241.92 |
||
|
23354
|
23354
23354-42L70 Clutch Assy9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23354-42L70 |
US $254.88 |
||
|
23360
|
23360
23360-30R12 Gear9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23360-30R12 |
US $29.95 |
||
|
23378
|
23378
23378-42L70 Holder Assy-Brush9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23378-42L70 |
US $60.19 |
||
|
23380
|
23380
2338042L70 Brush-Plus9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
2338042L70 |
US $8.93 |
||
|
23385
|
23385
23385-42L70 Packing Set9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23385-42L70 |
US $4.18 |
||
|
23465
|
23465
23465-42L70 Stopper Set-Pinion9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23465-42L70 |
US $7.63 |
||
|
23480
|
23480
23480-M0110 Screw Set9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
||
|
23480
|
23480
23480-M0110 Screw Set9308--01 ~ ; KA24DE; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
||
|
24211Z
|
24211Z
24346-79985 Clip9308--01 ~ ; KA24DE |
24346-79985 |
US $4.32 |
||
| replacement | |||||
|
24211Z
|
24211Z
2434627N05 Clip-Connector9308--01 ~ ; KA24DE |
2434627N05 |
US $4.16 |
||
