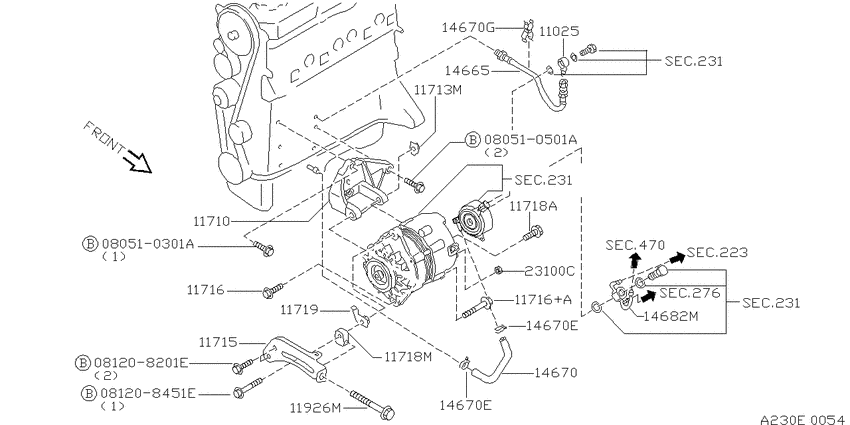

Alternator fitting (1991-09-01 ~ 1993-08-01; CD20) Diagram Nissan BLUEBIRD
- Year
- 1991 - 1993
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT
- grade
- ARX
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080510301A
|
080510301A
08051-0301A
Bolt-hexagon
|
08051-0301A |
— | ||
|
080510501A
|
080510501A
08051-0501A
Bolt-hexagon
|
08051-0501A |
— | ||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208451E
|
081208451E
08120-8451E
Bolt-hexagon
|
08120-8451E |
— | ||
|
11025
|
11025
11025-54A01 Connector9109--01 ~ 9308--01; CD20 |
11025-54A01 |
US $17.28 |
||
|
11713M
|
11713M
23188-V7200 Nut9109--01 ~ 9308--01; CD20 |
23188-V7200 |
US $9.22 |
||
|
11715
|
11715
11715-57J01 Bar-Adjusting, Alternator9109--01 ~ 9308--01; CD20 |
11715-57J01 |
US $32.11 |
||
|
11716
|
11716
11916-60U02 Bolt9109--01 ~ 9308--01; CD20 |
11916-60U02 |
US $3.46 |
||
|
11716
|
11716
11916-57J00 Bolt9109--01 ~ 9308--01; CD20 |
11916-57J00 |
US $3.31 |
||
|
11716+A
|
11716+A
11916-57J00 Bolt9109--01 ~ 9308--01; CD20 |
11916-57J00 |
US $3.31 |
||
|
11718M
|
11718M
11942-77A00
Bracket-Adjust Bolt
9109--01 ~ 9308--01; CD20 |
11942-77A00 |
— | ||
| replacement | |||||
|
11718M
|
11718M
1194277A0A Bracket-Alternator Adjust Bolt9109--01 ~ 9308--01; CD20 |
1194277A0A |
from US $8.05 |
||
|
11719
|
11719
11719-57J00 Stopper-Alternator Nut9109--01 ~ 9308--01; CD20 |
11719-57J00 |
US $7.78 |
||
|
11926M
|
11926M
11928-03J01 Shaft-Idler Pulley9109--01 ~ 9308--01; CD20 |
11928-03J01 |
US $3.46 |
||
|
14665
|
14665
14665-54A10 Tube Assy-Oil9109--01 ~ 9308--01; CD20 |
14665-54A10 |
US $64.80 |
||
|
14670
|
14670
14670-57J10 Hose-Oil Return9109--01 ~ 9308--01; CD20 |
14670-57J10 |
US $41.04 |
||
|
14670
|
14670
01555-00391
CLAMP-HOSE
9109--01 ~ 9308--01; CD20 |
01555-00391 |
— | ||
| replacement | |||||
|
14670
|
14670
0155500841 CLIP9109--01 ~ 9308--01; CD20 |
0155500841 |
from US $1.37 |
||
|
14670
|
14670
24220-79962 Clamp-Hose9109--01 ~ 9308--01; CD20 |
24220-79962 |
US $1.58 |
||
|
14670E
|
14670E
01555-00391
CLAMP-HOSE
9109--01 ~ 9308--01; CD20 |
01555-00391 |
— | ||
| replacement | |||||
|
14670E
|
14670E
0155500841 CLIP9109--01 ~ 9308--01; CD20 |
0155500841 |
from US $1.37 |
||
|
14670E
|
14670E
01555-00391
CLAMP-HOSE
9109--01 ~ 9308--01; CD20 |
01555-00391 |
— | ||
| replacement | |||||
|
14670E
|
14670E
0155500841 CLIP9109--01 ~ 9308--01; CD20 |
0155500841 |
from US $1.37 |
||
|
14670G
|
14670G
24220-79962 Clamp-Hose9109--01 ~ 9308--01; CD20 |
24220-79962 |
US $1.58 |
||
|
14682M
|
14682M
14682-0E400 Connector9109--01 ~ 9308--01; CD20 |
14682-0E400 |
US $41.33 |
||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
23100C
|
23100C
01221-00241 NUT9109--01 ~ 9308--01; CD20 |
01221-00241 |
US $1.73 |
||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
470
|
Brake servo & servo control
470
|
||||
