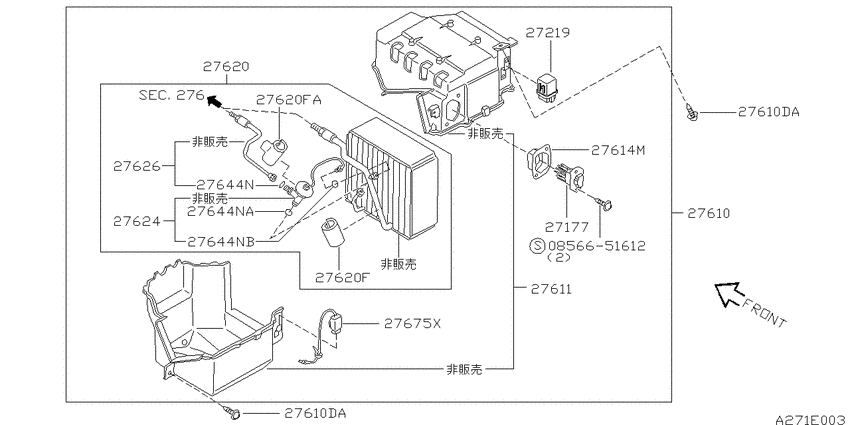

Cooling unit (1991-09-01 ~ 1993-08-01; オート エアコン; *S.(EEXL+EEXLA) +*K.CD20.ARX) Diagram Nissan BLUEBIRD
- Year
- 1991 - 1993
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT
- grade
- ARX
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0856651612
|
0856651612
08566-51612
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08566-51612 |
— | ||
|
27177
|
27177
27761-85E00 AMPLIFIER ASSY-FAN CONTROL9109--01 ~ 9308--01; *S.(EEXL+EEXLA) +*K.CD20; ｵｰﾄ ｴｱｺﾝ ｼﾖｳ |
27761-85E00 |
US $194.40 |
||
|
27219
|
27219
25235-43L00 Bracket-Relay9109--01 ~ 9308--01; *S.(EEXL+EEXLA) +*K.CD20; ｵｰﾄ ｴｱｺﾝ ｼﾖｳ |
25235-43L00 |
US $5.47 |
||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
27610
|
27610
27270-0E700 Cooling Unit Assy9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX; [B517] |
27270-0E700 |
US $897.74 |
||
|
27610
|
27610
27270-0E710 Cooling Unit Assy9109--01 ~ 9308--01; *S.(EEXL+EEXLA) +*K.CD20; ｵｰﾄ ｴｱｺﾝ ｼﾖｳ[B517] |
27270-0E710 |
US $897.74 |
||
|
27610
|
27610
01456-00461 SCREW9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
01456-00461 |
US $1.73 |
||
|
27610DA
|
27610DA
01456-00461 SCREW9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
01456-00461 |
US $1.73 |
||
|
27610DA
|
27610DA
01456-00461 SCREW9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
01456-00461 |
US $1.73 |
||
|
27611
|
27611
27284-0E700 Case Assy-Cooling Unit9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
27284-0E700 |
US $113.04 |
||
|
27611
|
27611
27284-0E710 Case Assy-Cooling Unit9109--01 ~ 9308--01; *S.(EEXL+EEXLA) +*K.CD20; ｵｰﾄ ｴｱｺﾝ ｼﾖｳ |
27284-0E710 |
US $113.04 |
||
|
27614M
|
27614M
27152-0E500 Bracket-Resistor9109--01 ~ 9308--01; *S.(EEXL+EEXLA) +*K.CD20; ｵｰﾄ ｴｱｺﾝ ｼﾖｳ |
27152-0E500 |
US $11.52 |
||
|
27620
|
27620
27280-0E000 EVAPORATOR ASSY-COOLER9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
27280-0E000 |
US $841.10 |
||
|
27620
|
27620
27288-35B00 Insulator9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
27288-35B00 |
US $10.69 |
||
|
27620
|
27620
B7755-02A65 Insulator9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
B7755-02A65 |
US $2.45 |
||
|
27620F
|
27620F
27288-35B00 Insulator9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
27288-35B00 |
US $10.69 |
||
|
27620F
|
27620F
B7755-02A65 Insulator9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
B7755-02A65 |
US $2.45 |
||
|
27620FA
|
27620FA
B7755-02A65 Insulator9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
B7755-02A65 |
US $2.45 |
||
|
27624
|
27624
92200-88M00 Valve Assy-Expansion9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
92200-88M00 |
US $140.83 |
||
|
27626
|
27626
27283-0E000 TUBE-EVAPORATOR INLET9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
27283-0E000 |
US $34.70 |
||
|
27644N
|
27644N
92470-N8200
O Ring
9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX; [B421] |
92470-N8200 |
— | ||
| replacement | |||||
|
27644N
|
27644N
92470N8210 O Ring9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX; [B421] |
92470N8210 |
from US $0.98 |
||
|
27644N
|
27644N
92471N8200 O Ring9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
92471N8200 |
US $1.13 |
||
|
27644N
|
27644N
92472N8200 Seal-O Ring9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
92472N8200 |
US $1.13 |
||
|
27644NA
|
27644NA
92471N8200 O Ring9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
92471N8200 |
US $1.13 |
||
|
27644NB
|
27644NB
92472N8200 Seal-O Ring9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
92472N8200 |
US $1.13 |
||
|
27675X
|
27675X
27675-0E700 Amplifier-Thermo9109--01 ~ 9308--01; S.(EEXL+EEXLA) +K.CD20.ARX |
27675-0E700 |
US $101.09 |
||
