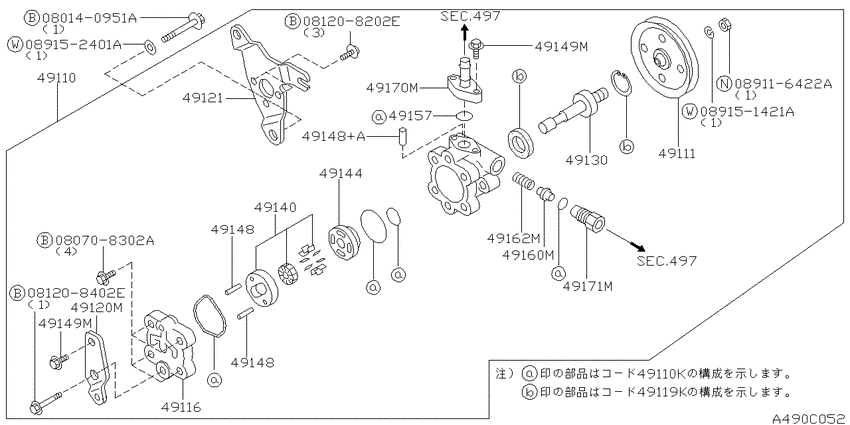

Power steering pump (1991-09-01 ~ 1993-08-01; CD20) Diagram Nissan BLUEBIRD
- Year
- 1991 - 1993
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT
- grade
- ARX
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080140951A
|
080140951A
08014-0951A
Bolt-hexagon
|
08014-0951A |
— | ||
|
080708302A
|
080708302A
08070-8302A
Bolt-hexagon
|
08070-8302A |
— | ||
|
081208202E
|
081208202E
08120-8202E
Bolt-hexagon
|
08120-8202E |
— | ||
|
081208402E
|
081208402E
08120-8402E
Bolt-hexagon
|
08120-8402E |
— | ||
|
089116422A
|
089116422A
08911-6422A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6422A |
— | ||
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
49110
|
49110
49110-0E400 Pump Assy-Power Steering9109--01 ~ 9307--01; CD20.EEXL.(MT+AT) +K.CD20 |
49110-0E400 |
US $1,988 |
||
|
49110
|
49110
49591-03U28 Seal Kit-Power Steering Pump9109--01 ~ 9308--01; CD20 |
49591-03U28 |
from US $35.86 |
||
|
49110K
|
49110K
49591-03U28 Seal Kit-Power Steering Pump9109--01 ~ 9308--01; CD20 |
49591-03U28 |
from US $35.86 |
||
|
49111
|
49111
49132-0E400 Pulley-Power Steering Pump9109--01 ~ 9308--01; CD20 |
49132-0E400 |
US $111.60 |
||
|
49116
|
49116
49116-52F00 Cover-Rear, Power Steering Pump9109--01 ~ 9308--01; CD20 |
49116-52F00 |
US $40.32 |
||
|
49119K
|
49119K
4911930R28 Seal Kit-Drive Shaft, Power Steering Pump9109--01 ~ 9308--01; CD20 |
4911930R28 |
US $15.26 |
||
|
49120M
|
49120M
49122-0E400 Bracket Assy-Power Steering Pump9109--01 ~ 9308--01; CD20 |
49122-0E400 |
US $56.74 |
||
|
49121
|
49121
49121-0E400 Bracket Assy-Power Steering Pump9109--01 ~ 9308--01; CD20 |
49121-0E400 |
US $60.48 |
||
|
49130
|
49130
49130-0E000 SHAFT-DRIVE,POWER STEERING PUMP9109--01 ~ 9308--01; CD20 |
49130-0E000 |
US $55.01 |
||
|
49140
|
49140
49140-V7210 Rotor & Camring Set-Power Steering Pump9109--01 ~ 9308--01; CD20 |
49140-V7210 |
US $144 |
||
|
49144
|
49144
49144-0E000 PLATE-SIDE,POWER STEERING PUMP9109--01 ~ 9308--01; CD20 |
49144-0E000 |
US $42.19 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump9109--01 ~ 9308--01; CD20 |
49148-15V00 |
US $2.49 |
||
|
49148
|
49148
49148-03U00 Pin-Camring, Power Steering Pump9109--01 ~ 9308--01; CD20 |
49148-03U00 |
US $3.17 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump9109--01 ~ 9308--01; CD20 |
49148-15V00 |
US $2.49 |
||
|
49148
|
49148
49148-03U00 Pin-Camring, Power Steering Pump9109--01 ~ 9308--01; CD20 |
49148-03U00 |
US $3.17 |
||
|
49148+A
|
49148+A
49148-03U00 Pin-Camring, Power Steering Pump9109--01 ~ 9308--01; CD20 |
49148-03U00 |
US $3.17 |
||
|
49149M
|
49149M
49164-0E000 BOLT-POWER STEERING PUMP9109--01 ~ 9308--01; CD20 |
49164-0E000 |
US $2.88 |
||
| replacement | |||||
|
49149M
|
49149M
49164-0E00A Bolt-Power Steering Pump9109--01 ~ 9308--01; CD20 |
49164-0E00A |
from US $2.88 |
||
|
49149M
|
49149M
49164-0E000 BOLT-POWER STEERING PUMP9109--01 ~ 9308--01; CD20 |
49164-0E000 |
US $2.88 |
||
| replacement | |||||
|
49149M
|
49149M
49164-0E00A Bolt-Power Steering Pump9109--01 ~ 9308--01; CD20 |
49164-0E00A |
from US $2.88 |
||
|
49157
|
49157
4916226E00 SEAL-INLET CONNECTOR9109--01 ~ 9308--01; CD20 |
4916226E00 |
from US $1.65 |
||
|
49160M
|
49160M
49165-05U00 Valve Assy-Flow Control9109--01 ~ 9307--01; CD20.EEXL.(MT+AT) +K.CD20 |
49165-05U00 |
US $64.80 |
||
|
49162M
|
49162M
4916719V00 Spring-Flow Control Valve9109--01 ~ 9308--01; CD20 |
4916719V00 |
US $10.94 |
||
|
49170M
|
49170M
49161-0E400 Connector Assy-Power Steering Pump9109--01 ~ 9308--01; #4WD.CD20 +CD20.EEXL.(MT+AT) +K.CD20 |
49161-0E400 |
US $55.44 |
||
|
49171M
|
49171M
49170-0E400 Bolt-Connector9109--01 ~ 9308--01; CD20 |
49170-0E400 |
US $6.91 |
||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
