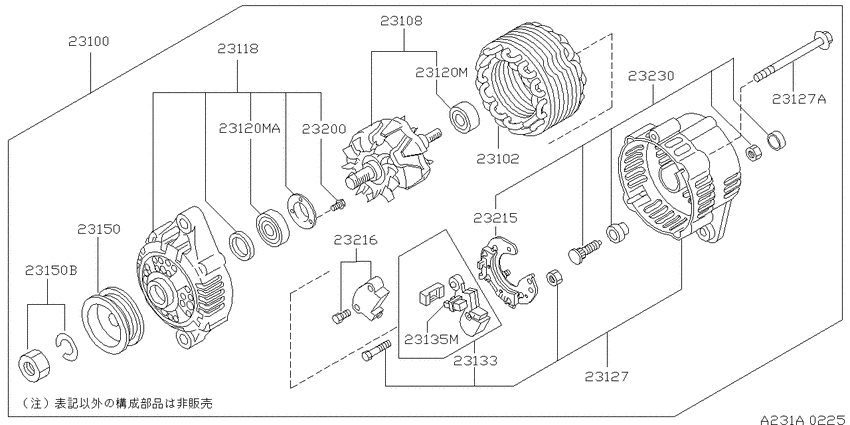

Alternator (1991-09-01 ~ 1993-08-01; 日立; GA16DS) Diagram Nissan BLUEBIRD
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- GA16DS
- drive
- 2WD
- transmission
- MT
- grade
- EEX
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-0E705 Alternator Assy9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23100-0E705 |
US $1,393.34 |
||
|
23100
|
23100
23100-0E718 Alternator Assy9308--01 ~ ; GA16DS; ﾐﾂﾋﾞｼ |
23100-0E718 |
US $1,946 |
||
|
23100
|
23100
01221-00241 NUT9109--01 ~ 9308--01; GA16DS |
01221-00241 |
US $1.73 |
||
|
23100
|
23100
0122100381 NUT9308--01 ~ ; GA16DS |
0122100381 |
from US $5.85 |
||
|
23100
|
23100
11058-12G00 Washer-Plain9109--01 ~ ; GA16DS |
11058-12G00 |
US $2.45 |
||
|
23102
|
23102
23102-04Y10 Stator Assy9308--01 ~ ; GA16DS; ﾐﾂﾋﾞｼ |
23102-04Y10 |
US $412.06 |
||
|
23102
|
23102
23102-50Y06 Stator Assy9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23102-50Y06 |
US $412.06 |
||
|
23108
|
23108
23108-0E716 Rotor Assy9308--01 ~ ; GA16DS; ﾐﾂﾋﾞｼ |
23108-0E716 |
from US $345.50 |
||
|
23108
|
23108
23108-50Y05 Rotor Assy9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23108-50Y05 |
US $502.68 |
||
| replacement | |||||
|
23108
|
23108
23108-4M40A Rotor Assy9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23108-4M40A |
US $416.30 |
||
|
23118
|
23118
23118-0M010 Cover Assy-Front9308--01 ~ ; GA16DS; ﾐﾂﾋﾞｼ |
23118-0M010 |
US $149.76 |
||
|
23118
|
23118
23118-50Y05 Cover Assy-Front9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23118-50Y05 |
US $162.72 |
||
|
23120M
|
23120M
23120-30R10
Bearing-Ball
9308--01 ~ ; GA16DS; ﾐﾂﾋﾞｼ |
23120-30R10 |
— | ||
| replacement | |||||
|
23120M
|
23120M
2312051E10 BEARING-BALL9308--01 ~ ; GA16DS; ﾐﾂﾋﾞｼ |
2312051E10 |
from US $34.67 |
||
|
23120M
|
23120M
23120-58S01 Bearing-Ball9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23120-58S01 |
from US $22.75 |
||
|
23120M
|
23120M
23120-22J20 Bearing-Ball9308--01 ~ ; GA16DS; ﾐﾂﾋﾞｼ |
23120-22J20 |
from US $22.31 |
||
|
23120M
|
23120M
23120-60U00 Bearing-Ball9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23120-60U00 |
US $22.75 |
||
|
23120MA
|
23120MA
23120-22J20 Bearing-Ball9308--01 ~ ; GA16DS; ﾐﾂﾋﾞｼ |
23120-22J20 |
from US $22.31 |
||
|
23120MA
|
23120MA
23120-60U00 Bearing-Ball9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23120-60U00 |
US $22.75 |
||
|
23127
|
23127
23127-0E705 Cover Assy-Rear9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23127-0E705 |
US $736.32 |
||
| replacement | |||||
|
23127
|
23127
23127-0E706 Cover Assy-Rear9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23127-0E706 |
US $805.70 |
||
|
23127
|
23127
23127-0E718 Cover Assy-Rear9308--01 ~ ; GA16DS; ﾐﾂﾋﾞｼ |
23127-0E718 |
US $967.13 |
||
|
23127
|
23127
23131-20P10 Bolt-Through9308--01 ~ ; GA16DS; ﾐﾂﾋﾞｼ |
23131-20P10 |
US $5.04 |
||
|
23127
|
23127
23131-58S00 Bolt-Through9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23131-58S00 |
US $6.05 |
||
|
23127A
|
23127A
23131-20P10 Bolt-Through9308--01 ~ ; GA16DS; ﾐﾂﾋﾞｼ |
23131-20P10 |
US $5.04 |
||
|
23127A
|
23127A
23131-58S00 Bolt-Through9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23131-58S00 |
US $6.05 |
||
|
23133
|
23133
2313385L00 Holder Assy-Brush9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
2313385L00 |
US $37.30 |
||
|
23135M
|
23135M
231420B000 Brush-F9308--01 ~ ; GA16DS; ﾐﾂﾋﾞｼ |
231420B000 |
from US $13.54 |
||
|
23135M
|
23135M
2314250Y05 Brush-F9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
2314250Y05 |
US $6.19 |
||
|
23150
|
23150
23150-0E711 Pulley Assy9308--01 ~ ; GA16DS; ﾐﾂﾋﾞｼ |
23150-0E711 |
US $74.74 |
||
|
23150
|
23150
23150-50Y05 Pulley Assy9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23150-50Y05 |
US $75.31 |
||
|
23150
|
23150
23153-60U00 Nut Assy-Pulley9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23153-60U00 |
US $5.76 |
||
|
23150B
|
23150B
23153-60U00 Nut Assy-Pulley9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23153-60U00 |
US $5.76 |
||
|
23200
|
23200
23115-20P10 Screw Set9308--01 ~ ; GA16DS; ﾐﾂﾋﾞｼ |
23115-20P10 |
US $5.04 |
||
|
23200
|
23200
23200-Q4601 Screw Set9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23200-Q4601 |
US $4.18 |
||
|
23215
|
23215
23215-0E711 Regulator Assy-Ic9308--01 ~ ; GA16DS; ﾐﾂﾋﾞｼ |
23215-0E711 |
US $321.43 |
||
|
23215
|
23215
23215-85L00 Regulator Assy-Ic9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23215-85L00 |
US $315.77 |
||
|
23216
|
23216
23216-85L00 Condenser9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23216-85L00 |
US $33.12 |
||
|
23230
|
23230
23230-0E705 Diode Assy9109--01 ~ 9308--01; GA16DS; ﾋﾀﾁ |
23230-0E705 |
US $249.12 |
||
