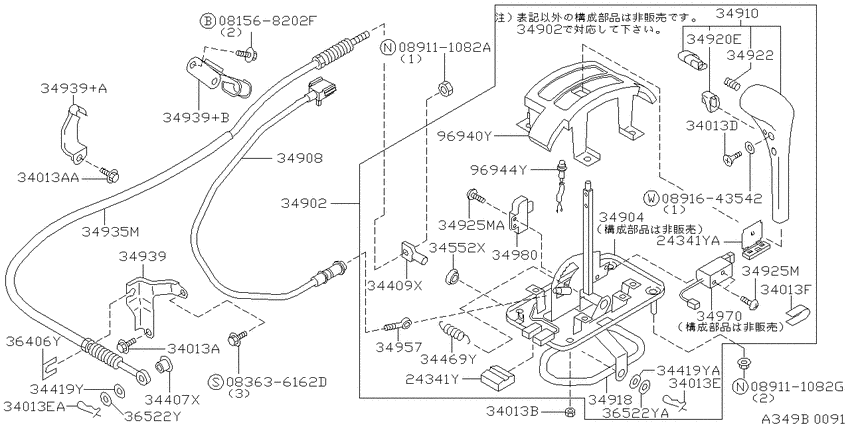

Auto transmission control device (1997-09-01 ~ 1998-09-01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4) Diagram Nissan BLUEBIRD
- Year
- 1996 - 1998
- Sales region
- Japan
- Engine
- SR18DE
- drive
- 4WD
- transmission
- AT.F4
- grade
- XEA
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081568202F
|
081568202F
081568202F BOLTHEXPP WW |
081568202F |
from US $0.93 |
||
|
083636162D
|
083636162D
08363-6162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6162D |
— | ||
| replacement | |||||
|
083636162D
|
083636162D
08360-6162D Screw |
08360-6162D |
US $1.93 |
||
|
089111082A
|
089111082A
089111082A NUTHEX |
089111082A |
US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
0891643542
|
0891643542
0891643542
ﾜﾂｼﾔ-,ﾂ-ｽ
|
0891643542 |
— | ||
|
24341Y
|
24341Y
24342-0P002 Housing-Connector9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
24342-0P002 |
US $3.46 |
||
|
24341Y
|
24341Y
243410P005 Housing-Connector9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
243410P005 |
US $3.46 |
||
|
24341YA
|
24341YA
243410P005 Housing-Connector9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
243410P005 |
US $3.46 |
||
|
34013A
|
34013A
0112503391 BOLT9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
0112503391 |
US $2.45 |
||
|
34013A
|
34013A
01125-02501 BOLT9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
01125-02501 |
US $2.45 |
||
|
34013AA
|
34013AA
01125-02501 BOLT9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
01125-02501 |
US $2.45 |
||
|
34013B
|
34013B
0122500371 NUT9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
0122500371 |
US $1.73 |
||
|
34013D
|
34013D
0141300051 SCREW9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
0141300051 |
from US $0.41 |
||
|
34013E
|
34013E
01532-00015 PIN-SNAP9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
01532-00015 |
US $1.73 |
||
|
34013E
|
34013E
0153200022 PIN9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
0153200022 |
US $1.73 |
||
|
34013E
|
34013E
0153200022 PIN9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
0153200022 |
US $1.73 |
||
|
34013EA
|
34013EA
0153200022 PIN9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
0153200022 |
US $1.73 |
||
|
34013F
|
34013F
01551-00023 CLIP9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
01551-00023 |
US $2.45 |
||
|
34407X
|
34407X
3440701E00 BUSH9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
3440701E00 |
US $4.18 |
||
|
34409X
|
34409X
34409-01J00 Pin-Pivot9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34409-01J00 |
US $18.14 |
||
|
34419Y
|
34419Y
34419-04100
Washer-Lock
9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34419-04100 |
— | ||
| replacement | |||||
|
34419Y
|
34419Y
344190410A Washer9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
344190410A |
US $2.91 |
||
|
34419Y
|
34419Y
34419-04100
Washer-Lock
9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
34419-04100 |
— | ||
| replacement | |||||
|
34419Y
|
34419Y
344190410A Washer9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
344190410A |
US $2.91 |
||
|
34419YA
|
34419YA
34419-04100
Washer-Lock
9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
34419-04100 |
— | ||
| replacement | |||||
|
34419YA
|
34419YA
344190410A Washer9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
344190410A |
US $2.91 |
||
|
34469Y
|
34469Y
34469-1M000 Spring-Checking9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34469-1M000 |
US $4.61 |
||
|
34552X
|
34552X
34552V5200 Insulator-Rod9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34552V5200 |
from US $1.17 |
||
|
34902
|
34902
34901-3J200 Device Assy-Transmission Control9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34901-3J200 |
US $661.27 |
||
|
34902
|
34902
34901-5J060 Device Assy-Transmission Control9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
34901-5J060 |
US $678.26 |
||
|
34904
|
34904
34904-3J200 Bracket Compl-Control Lever9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34904-3J200 |
US $386.57 |
||
|
34904
|
34904
34904-5J060 Bracket Compl-Control Lever9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
34904-5J060 |
US $389.40 |
||
|
34908
|
34908
34908-3J200 Cable Assy-Key Inter Lock9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34908-3J200 |
US $56.16 |
||
|
34910
|
34910
34910-3J200 Knob Assy-Control Lever, Auto9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34910-3J200 |
US $77.62 |
||
|
34918
|
34918
34918-3J200 Cover-Dust9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34918-3J200 |
US $22.32 |
||
|
34920E
|
34920E
25130-3J100 Switch Assy-Over Drive9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
25130-3J100 |
US $21.46 |
||
|
34922
|
34922
3492201P00 Spring-Return, Button9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
3492201P00 |
from US $1.81 |
||
|
34925M
|
34925M
34925-64J00 Screw9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34925-64J00 |
US $2.45 |
||
| replacement | |||||
|
34925M
|
34925M
34925-EB30A Screw9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34925-EB30A |
US $1.73 |
||
|
34925M
|
34925M
34925-71L11 Screw9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
34925-71L11 |
US $3.31 |
||
|
34925MA
|
34925MA
34925-71L11 Screw9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
34925-71L11 |
US $3.31 |
||
|
34935M
|
34935M
34935-3J200 Cable Assy-Control9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34935-3J200 |
US $136.22 |
||
|
34935M
|
34935M
34935-4J810 Cable Assy-Control9712--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
34935-4J810 |
US $124.99 |
||
|
34939
|
34939
34939-3J200 Bracket-Cable Mounting9601--01 ~ 9603--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34939-3J200 |
US $20.16 |
||
|
34939
|
34939
34939-3J210 Bracket-Cable Mounting9603--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34939-3J210 |
US $18.43 |
||
|
34939
|
34939
34939-4J800 Bracket-Cable Mounting9712--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
34939-4J800 |
US $18.58 |
||
|
34939
|
34939
34939-60Y00 Clamp-Cable9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34939-60Y00 |
US $13.68 |
||
|
34939
|
34939
34939-1M000 Bracket-Cable Mounting9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34939-1M000 |
US $18.58 |
||
|
34939+A
|
34939+A
34939-60Y00 Clamp-Cable9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34939-60Y00 |
US $13.68 |
||
|
34939+B
|
34939+B
34939-1M000 Bracket-Cable Mounting9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34939-1M000 |
US $18.58 |
||
|
34957
|
34957
34957-3J200 Rod-Key Inter Lock9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
34957-3J200 |
US $5.76 |
||
|
34970
|
34970
34970-4P000 Solenoid Assy-Select Lock9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34970-4P000 |
US $68.54 |
||
|
34980
|
34980
34980-3J200 Park Position Switch9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
34980-3J200 |
US $61.78 |
||
|
36406Y
|
36406Y
36406-41B00 Plate-Lock9712--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
36406-41B00 |
US $4.18 |
||
|
36406Y
|
36406Y
36406-42G00 Plate-Lock, Cable9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
36406-42G00 |
US $5.04 |
||
|
36522Y
|
36522Y
36522-68200
Washer-Plain
9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
36522-68200 |
— | ||
| replacement | |||||
|
36522Y
|
36522Y
365226820A Washer9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
365226820A |
from US $1.07 |
||
|
36522Y
|
36522Y
36522-68200
Washer-Plain
9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
36522-68200 |
— | ||
| replacement | |||||
|
36522Y
|
36522Y
365226820A Washer9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
365226820A |
from US $1.07 |
||
|
36522YA
|
36522YA
36522-68200
Washer-Plain
9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
36522-68200 |
— | ||
| replacement | |||||
|
36522YA
|
36522YA
365226820A Washer9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
365226820A |
from US $1.07 |
||
|
96940Y
|
96940Y
96940-1M000 Indicator Assy-Auto Transmission Control9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
96940-1M000 |
US $149.76 |
||
|
96940Y
|
96940Y
96940-5J060 Indicator Assy-Auto Transmission Control9709--01 ~ 9809--01; 4WD.SR18DE.AT.F4 +SR20DE.AT.F4 |
96940-5J060 |
US $74.88 |
||
|
96944Y
|
96944Y
96942-1M000 Bulb-Indicator9601--01 ~ 9709--01; "4WD.SR18DE.AT.F4 +4WD.SR20DE.AT.F4 |
96942-1M000 |
US $13.97 |
||
