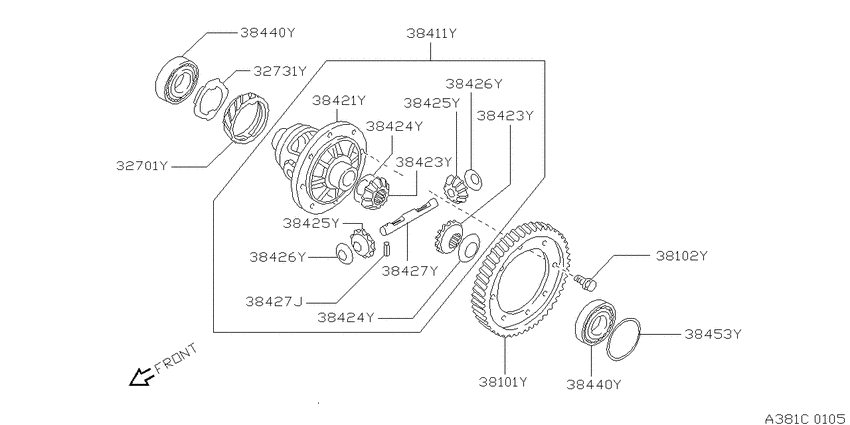

Front final drive (1997-09-01 ~ 1998-09-01; 標準 タイプ; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5) Diagram Nissan BLUEBIRD
- Year
- 1996 - 1998
- Sales region
- Japan
- Engine
- SR18DE
- drive
- 2WD
- transmission
- MT.F5
- grade
- XE
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-70E00
GEAR-DRIVE,SPEEDOMETER
9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
32701-70E00 |
— | ||
|
32701Y
|
32701Y
32701-D2100 Gear-Drive, Speedometer9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
32701-D2100 |
US $19.44 |
||
|
32731Y
|
32731Y
38431-D2100 Stopper-Speedometer Drive Gear9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
38431-D2100 |
US $4.75 |
||
|
38101Y
|
38101Y
38101-50J04 Gear-Final Drive9601--01 ~ 9809--01; 2WD.SR18DE.MT.F5 |
38101-50J04 |
US $164.16 |
||
|
38101Y
|
38101Y
38101-70E04 GEAR-FINAL DRIVE9601--01 ~ 9809--01; *2WD.SR18DE.MT.F5; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
38101-70E04 |
US $178.56 |
||
|
38102Y
|
38102Y
38102-31X60 Bolt-Drive Gear9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
38102-31X60 |
US $2.45 |
||
|
38102Y
|
38102Y
38102-50J00 Bolt-Drive Gear9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
38102-50J00 |
US $2.45 |
||
|
38411Y
|
38411Y
38411-50J02 Case Compl-Differential9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
38411-50J02 |
US $1,124.30 |
||
|
38411Y
|
38411Y
38411-50J03 Case Compl-Differential9801--01 ~ 9809--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
38411-50J03 |
US $938.81 |
||
|
38421Y
|
38421Y
38421-50J00 Case-Differential9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
38421-50J00 |
US $448.87 |
||
|
38423Y
|
38423Y
38423-31X02 Gear-Side9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
38423-31X02 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-31X02 Gear-Side9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
38423-31X02 |
US $100.80 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-31X02 Pinion-Mate9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
38425-31X02 |
US $57.74 |
||
|
38425Y
|
38425Y
38425-31X07 Pinion-Mate9801--01 ~ 9809--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
38425-31X07 |
US $64.22 |
||
|
38425Y
|
38425Y
38425-31X02 Pinion-Mate9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
38425-31X02 |
US $57.74 |
||
|
38425Y
|
38425Y
38425-31X07 Pinion-Mate9801--01 ~ 9809--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
38425-31X07 |
US $64.22 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
38426-31X02 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
38426-31X02 |
US $4.18 |
||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
38428-P0100 |
from US $0.86 |
||
|
38427Y
|
38427Y
38427-50J01 Shaft-Pinion Mate9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5 |
38427-50J01 |
US $76.46 |
||
|
38440Y
|
38440Y
38440-D2100 Bearing-Counter Shaft, Lh9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
38440-D2100 |
US $35.14 |
||
|
38440Y
|
38440Y
31408-31X08 Bearing-Differential Side9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31408-31X08 |
from US $90.41 |
||
|
38440Y
|
38440Y
38440-D2100 Bearing-Counter Shaft, Lh9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
38440-D2100 |
US $35.14 |
||
|
38440Y
|
38440Y
31408-31X08 Bearing-Differential Side9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31408-31X08 |
from US $90.41 |
||
|
38453Y
|
38453Y
31439-31X00 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.28 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X00 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X01 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.32 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X01 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X02 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.36 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X02 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X03 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.40 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X03 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X04 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.44 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X04 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X05 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.48 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X05 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X06 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.52 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X06 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X07 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.56 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X07 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X08 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.60 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X08 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X09 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.64 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X09 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X10 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.68 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X10 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X11 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.72 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X11 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X12 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.76 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X12 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X13 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.80 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X13 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X14 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.84 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X14 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X15 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.88 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X15 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X16 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.92 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X16 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X17 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.96 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X17 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X18 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; $*2WD.SR18DE.MT.F5 +*2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=1.44 ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31439-31X18 |
US $7.20 |
||
|
38453Y
|
38453Y
38454-M8000 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.44 |
38454-M8000 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8001 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.48 |
38454-M8001 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8003 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.56 |
38454-M8003 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8004 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.60 |
38454-M8004 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8005 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.64 |
38454-M8005 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8006 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.68 |
38454-M8006 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8007 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.72 |
38454-M8007 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8008 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.76 |
38454-M8008 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8009 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.80 |
38454-M8009 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8010 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.84 |
38454-M8010 |
US $6.34 |
||
|
38453Y
|
38453Y
38454-M8011 Shim-Adjust, Side Bearing9601--01 ~ 9709--01; "2WD.SR18DE.MT.F5 +2WD.SR20DE.MT.F5; ｾﾝﾀｸ T=0.88 |
38454-M8011 |
US $6.34 |
