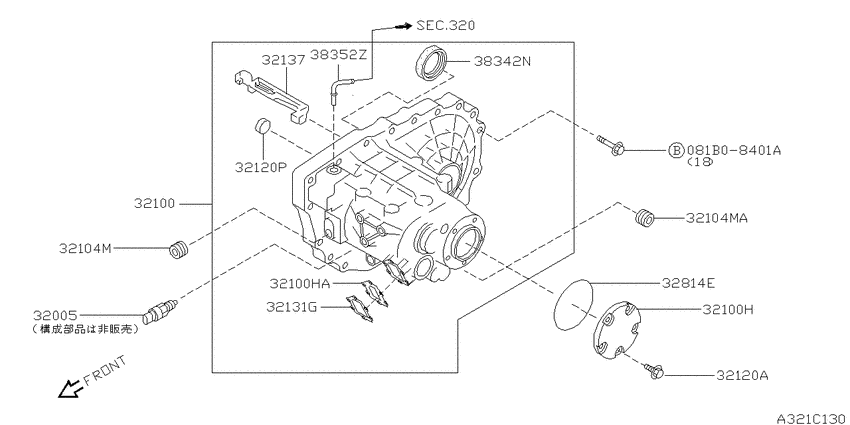

Transmission case & clutch release (1998-09-01 ~ ; トランスミッション ケース; QG18DE.MT.F5) Diagram Nissan BLUEBIRD
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- MT.F5
- grade
- FE
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081B08401A
|
081B08401A
081B0-8401A BOLTHEX |
081B0-8401A |
US $0.94 |
||
|
32005
|
32005
32005-6J000 Switch Assy-Reverse Lamp9809--01 ~ 0211--01; QG18DE.MT.F5 |
32005-6J000 |
US $33.55 |
||
|
32005
|
32005
32005-6J001 Switch Assy-Reverse Lamp0211--01 ~ ; QG18DE.MT.F5 |
32005-6J001 |
US $33.55 |
||
| replacement | |||||
|
32005
|
32005
320056J00A Switch Assy-Reverse Lamp0211--01 ~ ; QG18DE.MT.F5 |
320056J00A |
from US $21.33 |
||
|
32100
|
32100
32100-6J000 Case Assy-Transmission9809--01 ~ ; QG18DE.MT.F5 |
32100-6J000 |
US $409.22 |
||
|
32100
|
32100
32100-6J010 Case Assy-Transmission9809--01 ~ 9910--01; *QG18DE.MT.F5; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
32100-6J010 |
US $409.22 |
||
|
32100
|
32100
32131-6J000 Cover-Case9809--01 ~ ; QG18DE.MT.F5 |
32131-6J000 |
US $9.07 |
||
|
32100
|
32100
32131-6J010 Cover-Case9809--01 ~ ; QG18DE.MT.F5 |
32131-6J010 |
US $9.07 |
||
|
32100H
|
32100H
32131-6J000 Cover-Case9809--01 ~ ; QG18DE.MT.F5 |
32131-6J000 |
US $9.07 |
||
|
32100H
|
32100H
32131-6J010 Cover-Case9809--01 ~ ; QG18DE.MT.F5 |
32131-6J010 |
US $9.07 |
||
|
32100HA
|
32100HA
32131-6J010 Cover-Case9809--01 ~ ; QG18DE.MT.F5 |
32131-6J010 |
US $9.07 |
||
|
32104M
|
32104M
32104-6J001 Plug-Gear Oil, Filler9809--01 ~ ; QG18DE.MT.F5 |
32104-6J001 |
US $2.45 |
||
|
32104M
|
32104M
32104-6J000 Plug-Gear Oil9809--01 ~ ; QG18DE.MT.F5 |
32104-6J000 |
US $2.45 |
||
|
32104MA
|
32104MA
32104-6J000 Plug-Gear Oil9809--01 ~ ; QG18DE.MT.F5 |
32104-6J000 |
US $2.45 |
||
|
32120A
|
32120A
31377-6J000 Bolt9809--01 ~ ; QG18DE.MT.F5 |
31377-6J000 |
US $2.45 |
||
|
32120P
|
32120P
31307-6J000 Plug9809--01 ~ 0605--01; QG18DE.MT.F5 |
31307-6J000 |
US $2.88 |
||
| replacement | |||||
|
32120P
|
32120P
31307-6J00A Plug9809--01 ~ 0605--01; QG18DE.MT.F5 |
31307-6J00A |
US $2.45 |
||
|
32120P
|
32120P
31307-6J00C Plug0605--01 ~ ; QG18DE.MT.F5 |
31307-6J00C |
US $2.45 |
||
|
32131G
|
32131G
31398-6J000 Gasket-Case Cover9809--01 ~ ; QG18DE.MT.F5 |
31398-6J000 |
US $2.45 |
||
|
32137
|
32137
32107-6J000 Gutter-Oil, Adapter9809--01 ~ ; QG18DE.MT.F5 |
32107-6J000 |
US $4.18 |
||
|
32814E
|
32814E
32136-6J000 Seal-O Ring9809--01 ~ ; QG18DE.MT.F5 |
32136-6J000 |
US $4.18 |
||
|
38342N
|
38342N
38342-31X00
Seal-Oil, Differential Converter Housing
9809--01 ~ ; QG18DE.MT.F5 |
38342-31X00 |
— | ||
| replacement | |||||
|
38342N
|
38342N
383428E000 SEAL-OIL,DIFFERENTIAL CONVERTER HOUSING9809--01 ~ ; QG18DE.MT.F5 |
383428E000 |
from US $4.23 |
||
|
38342N
|
38342N
38342-31X02
Seal-Oil, Differential Transmission Case
9809--01 ~ 9910--01; *QG18DE.MT.F5; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
38342-31X02 |
— | ||
| replacement | |||||
|
38342N
|
38342N
383428E002 SEAL-OIL,DIFFERENTIAL TRANSMISSION CASE9809--01 ~ 9910--01; *QG18DE.MT.F5; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
383428E002 |
US $14.74 |
||
|
38352Z
|
38352Z
38352-6J000 Breather9809--01 ~ ; QG18DE.MT.F5 |
38352-6J000 |
US $2.45 |
||
