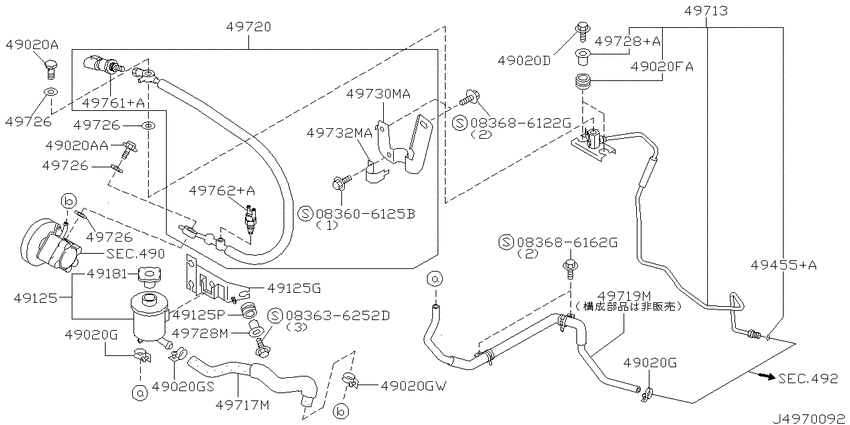

Power steering piping (2000-02-01 ~ ; QG18DE) Diagram Nissan BLUEBIRD
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- LEGRN
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083606125B
|
083606125B
083606125B Screw |
083606125B |
US $1.73 |
||
|
083636252D
|
083636252D
083636252D
ｽｸﾘﾕ-,ﾏｼﾝ
|
083636252D |
— | ||
|
083686122G
|
083686122G
083686122G
SCRHEX HDPP W
|
083686122G |
— | ||
|
083686162G
|
083686162G
083686162G
SCRHEX HDPP W
|
083686162G |
— | ||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
49020A
|
49020A
0161900011 BOLT9809--01 ~ ; QG18DE |
0161900011 |
from US $3.76 |
||
|
49020A
|
49020A
0161900015 BOLT9809--01 ~ 0104--01; QG18DE |
0161900015 |
US $2.45 |
||
|
49020A
|
49020A
49738-4W000 Bolt0104--01 ~ ; QG18DE |
49738-4W000 |
US $2.45 |
||
|
49020AA
|
49020AA
0161900015 BOLT9809--01 ~ 0104--01; QG18DE |
0161900015 |
US $2.45 |
||
|
49020AA
|
49020AA
49738-4W000 Bolt0104--01 ~ ; QG18DE |
49738-4W000 |
US $2.45 |
||
|
49020D
|
49020D
01436-01201 SCREW0002--01 ~ ; QG18DE |
01436-01201 |
US $3.88 |
||
|
49020FA
|
49020FA
18316S3260 Bush9809--01 ~ ; QG18DE |
18316S3260 |
from US $3.42 |
||
|
49020G
|
49020G
0155500691 CLAMP9809--01 ~ 9906--01; QG18DE |
0155500691 |
from US $2.11 |
||
|
49020G
|
49020G
49729-2J001 Clamp9906--01 ~ ; QG18DE |
49729-2J001 |
US $2.45 |
||
|
49020G
|
49020G
49729-2J016
Clamp
9809--01 ~ ; QG18DE |
49729-2J016 |
— | ||
| replacement | |||||
|
49020G
|
49020G
497292J01B Clamp9809--01 ~ ; QG18DE |
497292J01B |
from US $1.96 |
||
|
49020G
|
49020G
49729-2J016
Clamp
9809--01 ~ ; QG18DE |
49729-2J016 |
— | ||
| replacement | |||||
|
49020G
|
49020G
497292J01B Clamp9809--01 ~ ; QG18DE |
497292J01B |
from US $1.96 |
||
|
49020G
|
49020G
0155500691 CLAMP9809--01 ~ 9906--01; QG18DE |
0155500691 |
from US $2.11 |
||
|
49020G
|
49020G
49729-2J001 Clamp9906--01 ~ ; QG18DE |
49729-2J001 |
US $2.45 |
||
|
49020G
|
49020G
49729-2J016
Clamp
9809--01 ~ ; QG18DE |
49729-2J016 |
— | ||
| replacement | |||||
|
49020G
|
49020G
497292J01B Clamp9809--01 ~ ; QG18DE |
497292J01B |
from US $1.96 |
||
|
49020G
|
49020G
49729-2J016
Clamp
9809--01 ~ ; QG18DE |
49729-2J016 |
— | ||
| replacement | |||||
|
49020G
|
49020G
497292J01B Clamp9809--01 ~ ; QG18DE |
497292J01B |
from US $1.96 |
||
|
49020GS
|
49020GS
49729-2J016
Clamp
9809--01 ~ ; QG18DE |
49729-2J016 |
— | ||
| replacement | |||||
|
49020GS
|
49020GS
497292J01B Clamp9809--01 ~ ; QG18DE |
497292J01B |
from US $1.96 |
||
|
49020GW
|
49020GW
49729-2J016
Clamp
9809--01 ~ ; QG18DE |
49729-2J016 |
— | ||
| replacement | |||||
|
49020GW
|
49020GW
497292J01B Clamp9809--01 ~ ; QG18DE |
497292J01B |
from US $1.96 |
||
|
49125
|
49125
491800M000 Tank Assy-Reservoir9809--01 ~ ; QG18DE |
491800M000 |
US $226.08 |
||
|
49125
|
49125
49190-2J000 Bracket-Reservoir Tank9809--01 ~ ; QG18DE |
49190-2J000 |
US $55.30 |
||
|
49125
|
49125
18316S3260 Bush9809--01 ~ ; QG18DE |
18316S3260 |
from US $3.42 |
||
|
49125G
|
49125G
49190-2J000 Bracket-Reservoir Tank9809--01 ~ ; QG18DE |
49190-2J000 |
US $55.30 |
||
|
49125P
|
49125P
18316S3260 Bush9809--01 ~ ; QG18DE |
18316S3260 |
from US $3.42 |
||
|
49181
|
49181
49181-0M000 Cap Assy-Pump9809--01 ~ ; QG18DE |
49181-0M000 |
US $20.45 |
||
|
492
|
Power steering gear
492
|
||||
|
49455+A
|
49455+A
4974501E00 SEAL-O RING9809--01 ~ ; QG18DE |
4974501E00 |
US $2.78 |
||
|
49713
|
49713
49713-2J001 Tube-Connector To Pump9809--01 ~ ; QG18DE |
49713-2J001 |
US $174.24 |
||
|
49717M
|
49717M
497176J000 Hose Assy-Suction, Power Steering9809--01 ~ ; QG18DE |
497176J000 |
US $30.22 |
||
|
49719M
|
49719M
497268E105 TUBE ASSY-POWER STEERING9809--01 ~ ; QG18DE |
497268E105 |
US $43.06 |
||
|
49720
|
49720
497206J000 Hose Assy-Pressure, Power Steering9809--01 ~ ; QG18DE |
497206J000 |
US $213.12 |
||
|
49726
|
49726
49726Y0100 Washer-Copper9809--01 ~ ; QG18DE |
49726Y0100 |
from US $1.74 |
||
|
49726
|
49726
49726Y0100 Washer-Copper9809--01 ~ ; QG18DE |
49726Y0100 |
from US $1.74 |
||
|
49726
|
49726
49726Y0100 Washer-Copper9809--01 ~ ; QG18DE |
49726Y0100 |
from US $1.74 |
||
|
49726
|
49726
49726Y0100 Washer-Copper9809--01 ~ ; QG18DE |
49726Y0100 |
from US $1.74 |
||
|
49728+A
|
49728+A
49728-55S00
Collar
9809--01 ~ ; QG18DE |
49728-55S00 |
— | ||
| replacement | |||||
|
49728+A
|
49728+A
49728-55S0A Collar-Insulator9809--01 ~ ; QG18DE |
49728-55S0A |
US $2.64 |
||
|
49728M
|
49728M
49728-55S00
Collar
9809--01 ~ ; QG18DE |
49728-55S00 |
— | ||
| replacement | |||||
|
49728M
|
49728M
49728-55S0A Collar-Insulator9809--01 ~ ; QG18DE |
49728-55S0A |
US $2.64 |
||
|
49730MA
|
49730MA
49730-6J000 Bracket-Tube9809--01 ~ ; QG18DE |
49730-6J000 |
US $10.80 |
||
|
49732MA
|
49732MA
49732-5V000 Bracket-Power Steering Tube9809--01 ~ ; QG18DE |
49732-5V000 |
US $14.11 |
||
|
49761+A
|
49761+A
49761V5400 Switch-Pressure, Power Steering9809--01 ~ ; QG18DE |
49761V5400 |
US $59.04 |
||
|
49762+A
|
49762+A
49762AA000 Valve Assy-Air Control9809--01 ~ ; QG18DE |
49762AA000 |
US $101.09 |
||
