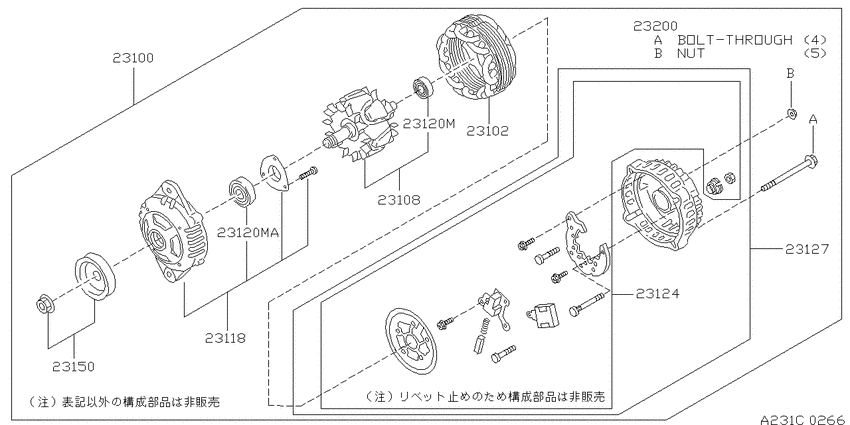

Alternator (1998-09-01 ~ ; 日立; CD20E) Diagram Nissan BLUEBIRD
- Year
- 1996 - 1998
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT.F5
- grade
- XE
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-2J600 Alternator Assy9809--01 ~ ; CD20E; ﾋﾀﾁ |
23100-2J600 |
US $1,349.45 |
||
|
23100
|
23100
23100-8E100 ALTERNATOR ASSY9601--01 ~ 9809--01; CD20; ﾋﾀﾁ |
23100-8E100 |
US $1,568 |
||
|
23100
|
23100
0122100381 NUT9601--01 ~ 9809--01; CD20 |
0122100381 |
from US $5.37 |
||
|
23102
|
23102
23102-31U00 Stator Assy9601--01 ~ 9809--01; CD20; ﾋﾀﾁ |
23102-31U00 |
US $515.42 |
||
|
23108
|
23108
23108-2J600 Rotor Assy9809--01 ~ 9910--01; CD20E; ﾋﾀﾁ |
23108-2J600 |
US $458.78 |
||
|
23108
|
23108
23108-2J601 Rotor Assy9910--01 ~ ; CD20E; ﾋﾀﾁ |
23108-2J601 |
US $421.97 |
||
|
23108
|
23108
23108-8E100 ROTOR ASSY9601--01 ~ 9809--01; CD20; ﾋﾀﾁ |
23108-8E100 |
US $339.84 |
||
|
23118
|
23118
23118-2J600 Cover Assy-Front9601--01 ~ 9809--01; CD20; ﾋﾀﾁ |
23118-2J600 |
US $162.72 |
||
|
23120M
|
23120M
23120-0M000 Bearing-Ball9601--01 ~ 9809--01; CD20; ﾋﾀﾁ |
23120-0M000 |
US $42.34 |
||
|
23120M
|
23120M
23120-0M005 Bearing-Ball9601--01 ~ 9809--01; CD20; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23120MA
|
23120MA
23120-0M005 Bearing-Ball9601--01 ~ 9809--01; CD20; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23124
|
23124
23124-2J603 Rectifier Assy9809--01 ~ ; CD20E; ﾋﾀﾁ |
23124-2J603 |
US $573.48 |
||
|
23124
|
23124
23124-8E100 Rectifier Assy9601--01 ~ 9709--01; CD20; ﾋﾀﾁ |
23124-8E100 |
US $688.18 |
||
|
23124
|
23124
23124-8E103 Rectifier Assy9709--01 ~ 9809--01; CD20; ﾋﾀﾁ |
23124-8E103 |
US $681.10 |
||
|
23127
|
23127
23127-2J604 Cover Assy-Rear9809--01 ~ ; CD20E; ﾋﾀﾁ |
23127-2J604 |
US $621.62 |
||
|
23127
|
23127
23127-8E100 COVER ASSY-REAR9601--01 ~ 9709--01; CD20; ﾋﾀﾁ |
23127-8E100 |
US $676.85 |
||
|
23127
|
23127
23127-8E102 COVER ASSY-REAR9709--01 ~ 9806--01; CD20; ﾋﾀﾁ |
23127-8E102 |
US $744.82 |
||
|
23127
|
23127
23127-8E104 COVER ASSY-REAR9806--01 ~ 9809--01; CD20; ﾋﾀﾁ |
23127-8E104 |
US $740.57 |
||
|
23150
|
23150
23150-2J600 Pulley Assy9601--01 ~ 9809--01; CD20; ﾋﾀﾁ |
23150-2J600 |
US $146.88 |
||
|
23200
|
23200
23200-0M000 Screw Set9601--01 ~ 9809--01; CD20; ﾋﾀﾁ |
23200-0M000 |
US $8.50 |
