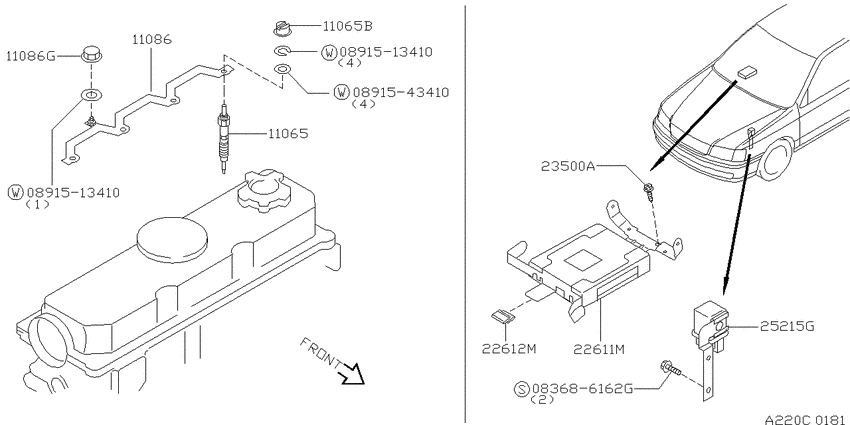

Ignition System (1996-01-01 ~ 1998-09-01; CD20) Diagram Nissan BLUEBIRD
- Year
- 1996 - 1998
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT.F5
- grade
- XE
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083686162G
|
083686162G
083686162G
SCRHEX HDPP W
|
083686162G |
— | ||
|
0891513410
|
0891513410
0891513410
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
0891513410 |
— | ||
|
0891513410
|
0891513410
0891513410
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
0891513410 |
— | ||
|
0891543410
|
0891543410
08915-43410
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43410 |
— | ||
|
11065
|
11065
11065-57J00 Plug-Glow9601--01 ~ 9709--01; CD20; [B512] |
11065-57J00 |
from US $56.41 |
||
|
11065
|
11065
110655C900 Plug-Glow9601--01 ~ 9709--01; *CD20; ｶﾝﾚｲﾁ ｼﾖｳ |
110655C900 |
US $72 |
||
|
11065
|
11065
11066V7205 Nut9601--01 ~ 9709--01; CD20 |
11066V7205 |
from US $1.48 |
||
|
11065B
|
11065B
11066V7205 Nut9601--01 ~ 9709--01; CD20 |
11066V7205 |
from US $1.48 |
||
|
11086
|
11086
11086-57J00 Cable Assy9601--01 ~ 9709--01; CD20 |
11086-57J00 |
US $26.50 |
||
|
11086
|
11086
11086-57J10 Cable Assy9709--01 ~ 9809--01; CD20 |
11086-57J10 |
US $25.78 |
||
|
11086
|
11086
11066-V7202 Nut9601--01 ~ 9809--01; CD20 |
11066-V7202 |
US $3.46 |
||
|
11086G
|
11086G
11066-V7202 Nut9601--01 ~ 9809--01; CD20 |
11066-V7202 |
US $3.46 |
||
|
22611M
|
22611M
23710-8E100 ENGINE CONTROL MODULE9601--01 ~ 9809--01; CD20.MT.F5 |
23710-8E100 |
US $931.73 |
||
|
22612M
|
22612M
23714-86E00
BRACKET-CONTROL UNIT
9601--01 ~ 9809--01; CD20 |
23714-86E00 |
— | ||
| replacement | |||||
|
22612M
|
22612M
23714-86E0B Bracket-Cont Unit9601--01 ~ 9809--01; CD20 |
23714-86E0B |
US $5.68 |
||
|
23500A
|
23500A
0145600411 SCREW9601--01 ~ 9809--01; CD20 |
0145600411 |
US $1.67 |
||
|
25215G
|
25215G
25230-8E100
ﾘﾚｰ ｱﾂｾﾝﾌﾞﾘｰ,ｸﾞﾛｰ ﾌﾟﾗｸﾞ
9601--01 ~ 9809--01; CD20 |
25230-8E100 |
— | ||
