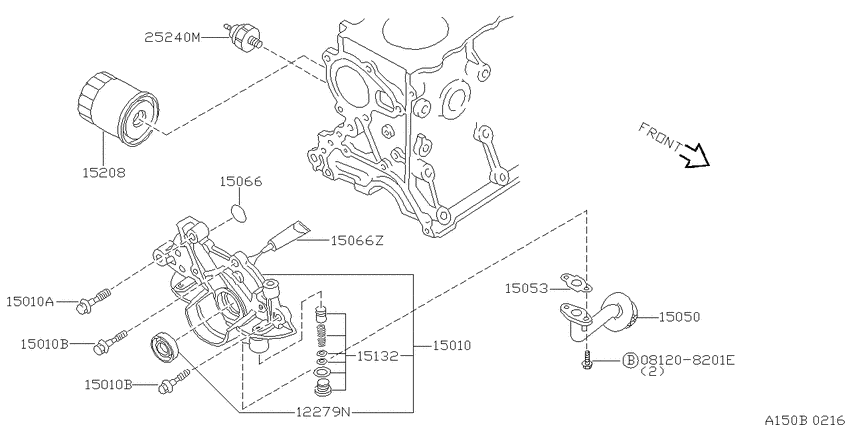

Lubricating system (1998-09-01 ~ 1999-10-01; CD20E) Diagram Nissan BLUEBIRD
- Year
- 1996 - 1998
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT.F5
- grade
- XE
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
12279N
|
12279N
13510V7200 Seal-Oil, Crankshaft Front9601--01 ~ 9809--01; CD20 |
13510V7200 |
from US $9.84 |
||
|
12279N
|
12279N
13510-V7201 Seal-Oil, Crankshaft Front9910--01 ~ ; CD20E |
13510-V7201 |
from US $6.77 |
||
| replacement | |||||
|
12279N
|
12279N
1351010Y12 Seal-Oil, Crankshaft Front9910--01 ~ ; CD20E |
1351010Y12 |
from US $9.23 |
||
|
15010
|
15010
15010-0E400 Pump Assy-Oil9601--01 ~ 9809--01; CD20 |
15010-0E400 |
US $237.60 |
||
|
15010
|
15010
15010-2N100 Pump Assy-Oil9809--01 ~ 9910--01; CD20E |
15010-2N100 |
US $264.96 |
||
|
15010
|
15010
15010-2N101 Pump Assy-Oil9910--01 ~ ; CD20E |
15010-2N101 |
US $216 |
||
|
15010
|
15010
15060-D0102
Bolt
9601--01 ~ 9809--01; CD20 |
15060-D0102 |
— | ||
|
15010
|
15010
13512-D0102 Bolt-Oil Pump9601--01 ~ 9809--01; CD20 |
13512-D0102 |
US $3.06 |
||
|
15010A
|
15010A
15060-D0102
Bolt
9601--01 ~ 9809--01; CD20 |
15060-D0102 |
— | ||
|
15010B
|
15010B
13512-D0102 Bolt-Oil Pump9601--01 ~ 9809--01; CD20 |
13512-D0102 |
US $3.06 |
||
|
15010B
|
15010B
13512-D0102 Bolt-Oil Pump9601--01 ~ 9809--01; CD20 |
13512-D0102 |
US $3.06 |
||
|
15050
|
15050
15050-57J01 Strainer Assy-Oil9601--01 ~ 9809--01; CD20 |
15050-57J01 |
US $47.81 |
||
|
15053
|
15053
150531E400 Gasket-Oil Strainer9601--01 ~ 9809--01; CD20 |
150531E400 |
from US $1.67 |
||
|
15066
|
15066
15066-77A00
Seal-O Ring
9601--01 ~ 9809--01; CD20 |
15066-77A00 |
— | ||
| replacement | |||||
|
15066
|
15066
150664J600 Seal-O Ring9601--01 ~ 9809--01; CD20 |
150664J600 |
US $6.51 |
||
|
15066
|
15066
KA76015000
Gasket-Liquid
9601--01 ~ 9809--01; CD20; [K504] |
KA76015000 |
— | ||
|
15066Z
|
15066Z
KA76015000
Gasket-Liquid
9601--01 ~ 9809--01; CD20; [K504] |
KA76015000 |
— | ||
|
15132
|
15132
15132-2N125 Valve Assy-Oil Regulator9809--01 ~ ; CD20E |
15132-2N125 |
US $11.95 |
||
|
15132
|
15132
15132-57J10 Valve Assy-Oil Regulator9601--01 ~ 9809--01; CD20 |
15132-57J10 |
US $13.10 |
||
|
15208
|
15208
AY100NS011
Filter Assy-Oil
9601--01 ~ 9809--01; CD20 |
AY100NS011 |
— | ||
| replacement | |||||
|
15208
|
15208
AY100NS012 Filter Assy-Oil9601--01 ~ 9809--01; CD20 |
AY100NS012 |
US $32.38 |
||
|
25240M
|
25240M
25240-89910
Switch Assy-Oil Pressure
9601--01 ~ 9709--01; CD20 |
25240-89910 |
— | ||
| replacement | |||||
|
25240M
|
25240M
25240G150A SW OIL PRESSURE9601--01 ~ 9709--01; CD20 |
25240G150A |
from US $18.43 |
||
