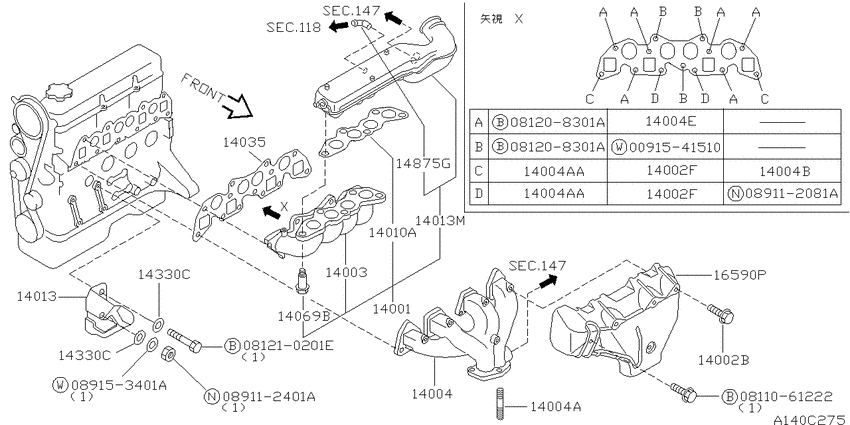

Manifold (1998-09-01 ~ 1999-10-01; CD20E) Diagram Nissan BLUEBIRD
- Year
- 1996 - 1998
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT.F5
- grade
- XE
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0091541510
|
0091541510
00915-41510 WASHER-PLAIN |
00915-41510 |
US $1.93 |
||
|
0811061222
|
0811061222
0811061222
Bolt-hexagon
|
0811061222 |
— | ||
|
081208301A
|
081208301A
081208301A Bolt-hexagon |
081208301A |
US $0.57 |
||
|
081208301A
|
081208301A
081208301A Bolt-hexagon |
081208301A |
US $0.57 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.59 |
||
|
089112401A
|
089112401A
089112401A Nut |
089112401A |
from US $2.21 |
||
|
089153401A
|
089153401A
089153401A Washer-Spring |
089153401A |
US $0.63 |
||
|
118
|
Crankcase ventilation
118
|
||||
|
118
|
Crankcase ventilation
118
|
||||
|
14001
|
14001
14001-0M901 Manifold Assy-Intake9601--01 ~ 9809--01; CD20 |
14001-0M901 |
US $395.06 |
||
|
14002B
|
14002B
0112104871 BOLT9601--01 ~ 9709--01; CD20 |
0112104871 |
US $2.45 |
||
|
14002B
|
14002B
0112107141 BOLT9709--01 ~ 9809--01; CD20 |
0112107141 |
from US $2.88 |
||
|
14002F
|
14002F
14037-W4800 Washer-Plain9601--01 ~ 9809--01; CD20 |
14037-W4800 |
US $2.45 |
||
|
14002F
|
14002F
14037-W4800 Washer-Plain9601--01 ~ 9809--01; CD20 |
14037-W4800 |
US $2.45 |
||
|
14003
|
14003
14003-0M901 Manifold-Intake9601--01 ~ 9809--01; CD20 |
14003-0M901 |
US $239.04 |
||
|
14004
|
14004
14004-60J00 Manifold-Exhaust9601--01 ~ 9809--01; CD20 |
14004-60J00 |
US $304.44 |
||
|
14004
|
14004
14064-58Y00 Stud9601--01 ~ 9809--01; CD20 |
14064-58Y00 |
US $3.46 |
||
|
14004
|
14004
14064-H5002 Stud9601--01 ~ 9809--01; CD20 |
14064-H5002 |
US $3.46 |
||
|
14004
|
14004
14039W1500 Nut9601--01 ~ 9809--01; CD20 |
14039W1500 |
US $2.36 |
||
|
14004
|
14004
14037N3600 Yoke-Manifold9601--01 ~ 9809--01; CD20 |
14037N3600 |
US $1.74 |
||
|
14004A
|
14004A
14064-58Y00 Stud9601--01 ~ 9809--01; CD20 |
14064-58Y00 |
US $3.46 |
||
|
14004A
|
14004A
14064-H5002 Stud9601--01 ~ 9809--01; CD20 |
14064-H5002 |
US $3.46 |
||
|
14004AA
|
14004AA
14064-H5002 Stud9601--01 ~ 9809--01; CD20 |
14064-H5002 |
US $3.46 |
||
|
14004AA
|
14004AA
14064-H5002 Stud9601--01 ~ 9809--01; CD20 |
14064-H5002 |
US $3.46 |
||
|
14004B
|
14004B
14039W1500 Nut9601--01 ~ 9809--01; CD20 |
14039W1500 |
US $2.36 |
||
|
14004E
|
14004E
14037N3600 Yoke-Manifold9601--01 ~ 9809--01; CD20 |
14037N3600 |
US $1.74 |
||
|
14010A
|
14010A
14033-0M900 Gasket-Manifold, Upper9601--01 ~ 9809--01; CD20 |
14033-0M900 |
US $5.18 |
||
|
14013
|
14013
14013-57J01 Plate-Heat Shield, Front9601--01 ~ 9709--01; CD20 |
14013-57J01 |
US $36.86 |
||
|
14013
|
14013
14010-0M900 Collector-Intake Manifold9601--01 ~ 9809--01; CD20 |
14010-0M900 |
US $237.60 |
||
|
14013M
|
14013M
14010-0M900 Collector-Intake Manifold9601--01 ~ 9809--01; CD20 |
14010-0M900 |
US $237.60 |
||
|
14035
|
14035
1403557J01 Gasket-Manifold9601--01 ~ 9809--01; CD20 |
1403557J01 |
US $30.82 |
||
|
14069B
|
14069B
14031-V7202 Bolt9601--01 ~ 9809--01; CD20 |
14031-V7202 |
US $4.18 |
||
|
14330C
|
14330C
01311-01091 WASHER-PLAIN9601--01 ~ 9709--01; CD20 |
01311-01091 |
US $1.93 |
||
|
14330C
|
14330C
01311-01091 WASHER-PLAIN9601--01 ~ 9709--01; CD20 |
01311-01091 |
US $1.93 |
||
|
147
|
Egr parts
147
|
||||
|
147
|
Egr parts
147
|
||||
|
147
|
Egr parts
147
|
||||
|
147
|
Egr parts
147
|
||||
|
14875G
|
14875G
13267-23000 Connector-Breather Tube9601--01 ~ 9809--01; CD20 |
13267-23000 |
US $9.79 |
||
|
16590P
|
16590P
16590-0M900 Cover-Exhaust Manifold9601--01 ~ 9809--01; CD20 |
16590-0M900 |
US $79.49 |
||
