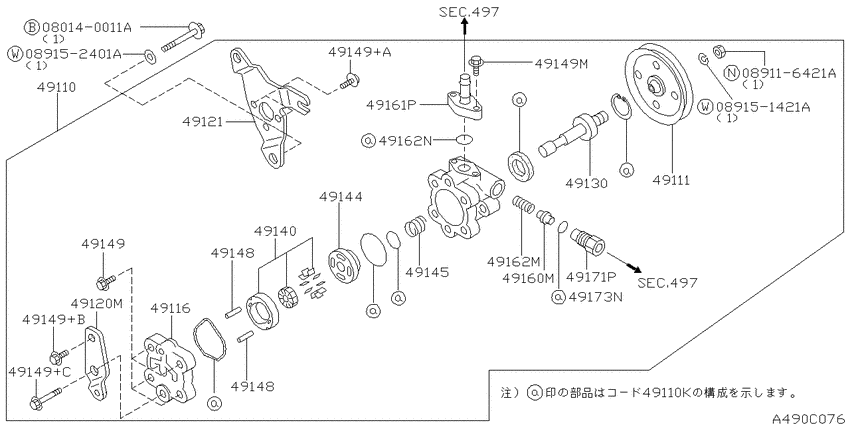

Power steering pump (1996-01-01 ~ 1998-09-01; CD20) Diagram Nissan BLUEBIRD
- Year
- 1996 - 1998
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT.F5
- grade
- XE
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080140011A
|
080140011A
08014-0011A
Bolt-hexagon
|
08014-0011A |
— | ||
|
089116421A
|
089116421A
089116421A Nut |
089116421A |
US $3.06 |
||
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
49110
|
49110
49110-8E100 PUMP ASSY-POWER STEERING9601--01 ~ 9809--01; CD20 |
49110-8E100 |
US $1,666 |
||
|
49110
|
49110
49591-2S425 Seal Kit-Power Steering Pump9601--01 ~ 9809--01; CD20 |
49591-2S425 |
from US $14.40 |
||
|
49110K
|
49110K
49591-2S425 Seal Kit-Power Steering Pump9601--01 ~ 9809--01; CD20 |
49591-2S425 |
from US $14.40 |
||
|
49111
|
49111
4913257J00 Pulley-Power Steering Pump9601--01 ~ 9809--01; CD20 |
4913257J00 |
US $74.88 |
||
|
49116
|
49116
49116-51E01 COVER-REAR,POWER STEERING PUMP9601--01 ~ 9809--01; CD20 |
49116-51E01 |
US $33.70 |
||
|
49120M
|
49120M
49122-74N00 Bracket Assy-Power Steering Pump9601--01 ~ 9809--01; CD20 |
49122-74N00 |
US $61.92 |
||
|
49121
|
49121
49121-74N00 Bracket Assy-Power Steering Pump9601--01 ~ 9809--01; CD20 |
49121-74N00 |
US $33.55 |
||
|
49130
|
49130
49130-59Y00 Shaft-Drive, Power Steering Pump9601--01 ~ 9809--01; CD20 |
49130-59Y00 |
US $45.79 |
||
|
49140
|
49140
49140-0M000 Rotor & Camring Set-Power Steering Pump0006--01 ~ ; CD20E |
49140-0M000 |
from US $117.64 |
||
|
49140
|
49140
49140-57J00 Rotor & Camring Set-Power Steering Pump9601--01 ~ 9809--01; CD20 |
49140-57J00 |
US $143.57 |
||
|
49144
|
49144
49144-15V00 Plate-Side, Power Steering Pump9601--01 ~ 9809--01; CD20 |
49144-15V00 |
US $31.68 |
||
|
49144
|
49144
49144-7T000 Plate-Side, Power Steering Pump0006--01 ~ ; CD20E |
49144-7T000 |
US $33.70 |
||
|
49145
|
49145
49145-19V00 Spring-Side Plate9601--01 ~ 9809--01; CD20 |
49145-19V00 |
US $11.09 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump9601--01 ~ 9809--01; CD20 |
49148-15V00 |
US $2.49 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump9601--01 ~ 9809--01; CD20 |
49148-15V00 |
US $2.49 |
||
|
49149
|
49149
49149-F6601 Bolt-Bracket, Power Steering Pump9601--01 ~ 9809--01; CD20 |
49149-F6601 |
US $4.32 |
||
|
49149
|
49149
49149-15V00 Bolt-Bracket, Power Steering Pump9601--01 ~ 9809--01; CD20 |
49149-15V00 |
US $6.19 |
||
|
49149
|
49149
49149-15C10 Bolt-Bracket, Power Steering Pump9601--01 ~ 9809--01; CD20 |
49149-15C10 |
US $3.46 |
||
|
49149
|
49149
49149-57J00 Bolt-Bracket, Power Steering Pump9601--01 ~ 9809--01; CD20 |
49149-57J00 |
US $3.46 |
||
|
49149
|
49149
49164-16V00 Bolt-Power Steering Pump9601--01 ~ 9809--01; CD20 |
49164-16V00 |
US $4.90 |
||
|
49149
|
49149
49164-AD100 Bolt-Power Steering Pump0006--01 ~ ; CD20E |
49164-AD100 |
US $2.45 |
||
|
49149+A
|
49149+A
49149-15V00 Bolt-Bracket, Power Steering Pump9601--01 ~ 9809--01; CD20 |
49149-15V00 |
US $6.19 |
||
|
49149+B
|
49149+B
49149-15C10 Bolt-Bracket, Power Steering Pump9601--01 ~ 9809--01; CD20 |
49149-15C10 |
US $3.46 |
||
|
49149+C
|
49149+C
49149-57J00 Bolt-Bracket, Power Steering Pump9601--01 ~ 9809--01; CD20 |
49149-57J00 |
US $3.46 |
||
|
49149M
|
49149M
49164-16V00 Bolt-Power Steering Pump9601--01 ~ 9809--01; CD20 |
49164-16V00 |
US $4.90 |
||
|
49149M
|
49149M
49164-AD100 Bolt-Power Steering Pump0006--01 ~ ; CD20E |
49164-AD100 |
US $2.45 |
||
|
49160M
|
49160M
49165-8E100 VALVE ASSY-FLOW CONTROL9601--01 ~ 9809--01; CD20 |
49165-8E100 |
US $91.01 |
||
|
49161P
|
49161P
49161-85G00 Connector-Inlet9601--01 ~ 9809--01; CD20 |
49161-85G00 |
US $24.34 |
||
|
49162M
|
49162M
4916719V00 Spring-Flow Control Valve9601--01 ~ 9809--01; CD20 |
4916719V00 |
US $10.94 |
||
|
49162N
|
49162N
4916226E00 SEAL-INLET CONNECTOR9709--01 ~ 9809--01; CD20 |
4916226E00 |
from US $1.65 |
||
|
49171P
|
49171P
49171-59Y00 Connector-Outlet9601--01 ~ 9809--01; CD20 |
49171-59Y00 |
US $30.10 |
||
|
49173N
|
49173N
49173-50L00 Seal-Outlet Connector9709--01 ~ 9809--01; CD20 |
49173-50L00 |
US $5.04 |
||
|
