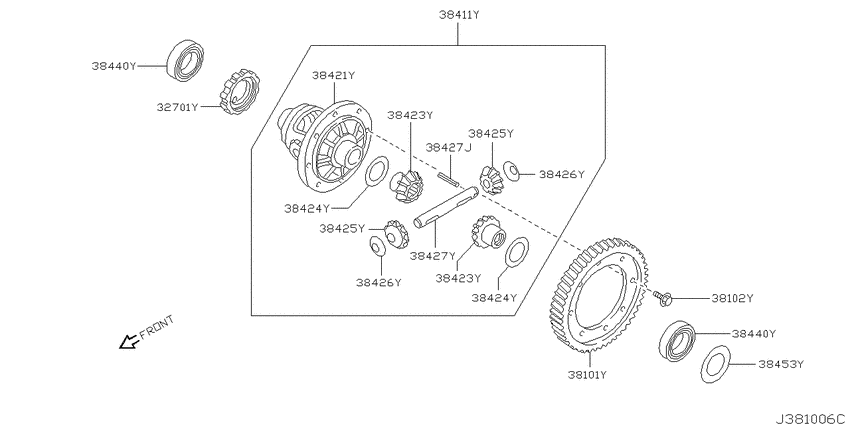

Front final drive (2000-08-01 ~ 2003-02-01; QG15DE.AT.F4) Diagram Nissan BLUEBIRD SYLPHY
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- I
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-31X00 Gear-Drive, Speedometer0008--01 ~ 0302--01; QG15DE.AT.F4 |
32701-31X00 |
from US $11.95 |
||
|
38101Y
|
38101Y
38101-31X01 Gear-Final Drive0008--01 ~ 0302--01; QG15DE.AT.F4 |
38101-31X01 |
US $138.96 |
||
|
38102Y
|
38102Y
38102-31X00 Bolt-Drive Gear0008--01 ~ 0302--01; QG15DE.AT.F4 |
38102-31X00 |
US $2.45 |
||
|
38102Y
|
38102Y
38102-31X01 Bolt-Drive Gear0302--01 ~ ; QG15DE.AT.F4 |
38102-31X01 |
US $2.45 |
||
|
38411Y
|
38411Y
38411-31X05 Case Compl-Differential0008--01 ~ 0206--01; QG15DE.AT.F4 |
38411-31X05 |
US $774.55 |
||
| replacement | |||||
|
38411Y
|
38411Y
38411-3MX0A Case Compl-Differential0008--01 ~ 0206--01; QG15DE.AT.F4 |
38411-3MX0A |
US $774.55 |
||
|
38411Y
|
38411Y
38411-31X12 Case Compl-Differential0206--01 ~ 0212--01; QG15DE.AT.F4 |
38411-31X12 |
US $1,115.81 |
||
|
38411Y
|
38411Y
38411-8E000 CASE COMPL-DIFFERENTIAL0212--01 ~ 0302--01; QG15DE.AT.F4 |
38411-8E000 |
US $774.55 |
||
|
38421Y
|
38421Y
38421-31X00 Case-Differential0008--01 ~ 0206--01; QG15DE.AT.F4 |
38421-31X00 |
US $460.20 |
||
|
38421Y
|
38421Y
38421-31X10 Case-Differential0206--01 ~ 0212--01; QG15DE.AT.F4 |
38421-31X10 |
US $679.68 |
||
|
38421Y
|
38421Y
38421-8E000 CASE-DIFFERENTIAL0212--01 ~ 0302--01; QG15DE.AT.F4 |
38421-8E000 |
US $372.41 |
||
|
38423Y
|
38423Y
3842331X00 Gear-Side0008--01 ~ 0206--01; QG15DE.AT.F4 |
3842331X00 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-8E000 GEAR-SIDE0212--01 ~ 0302--01; QG15DE.AT.F4 |
38423-8E000 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-D2100 Gear-Side0206--01 ~ 0212--01; QG15DE.AT.F4 |
38423-D2100 |
US $100.80 |
||
|
38423Y
|
38423Y
3842331X00 Gear-Side0008--01 ~ 0206--01; QG15DE.AT.F4 |
3842331X00 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-8E000 GEAR-SIDE0212--01 ~ 0302--01; QG15DE.AT.F4 |
38423-8E000 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-D2100 Gear-Side0206--01 ~ 0212--01; QG15DE.AT.F4 |
38423-D2100 |
US $100.80 |
||
|
38424Y
|
38424Y
38424-31X00 Washer-Thrust, Side Gear0008--01 ~ 0302--01; QG15DE.AT.F4; T=0.75-0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-31X00 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X01 Washer-Thrust, Side Gear0008--01 ~ 0206--01; QG15DE.AT.F4; T=0.80-0.85 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-31X01 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X02 Washer-Thrust, Side Gear0008--01 ~ 0206--01; QG15DE.AT.F4; T=0.85-0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-31X02 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X03 Washer-Thrust, Side Gear0008--01 ~ 0206--01; QG15DE.AT.F4; T=0.90-0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-31X03 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X04 Washer-Thrust, Side Gear0008--01 ~ 0206--01; QG15DE.AT.F4; T=0.95-1.00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-31X04 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear0206--01 ~ 0302--01; QG15DE.AT.F4; T=0.80-0.85 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear0206--01 ~ 0302--01; QG15DE.AT.F4; T=0.85-0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear0206--01 ~ 0302--01; QG15DE.AT.F4; T=0.90-0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear0206--01 ~ 0302--01; QG15DE.AT.F4; T=0.95-1.00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2115 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X00 Washer-Thrust, Side Gear0008--01 ~ 0302--01; QG15DE.AT.F4; T=0.75-0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-31X00 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X01 Washer-Thrust, Side Gear0008--01 ~ 0206--01; QG15DE.AT.F4; T=0.80-0.85 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-31X01 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X02 Washer-Thrust, Side Gear0008--01 ~ 0206--01; QG15DE.AT.F4; T=0.85-0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-31X02 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X03 Washer-Thrust, Side Gear0008--01 ~ 0206--01; QG15DE.AT.F4; T=0.90-0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-31X03 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X04 Washer-Thrust, Side Gear0008--01 ~ 0206--01; QG15DE.AT.F4; T=0.95-1.00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-31X04 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear0206--01 ~ 0302--01; QG15DE.AT.F4; T=0.80-0.85 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear0206--01 ~ 0302--01; QG15DE.AT.F4; T=0.85-0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear0206--01 ~ 0302--01; QG15DE.AT.F4; T=0.90-0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear0206--01 ~ 0302--01; QG15DE.AT.F4; T=0.95-1.00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2115 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-01M05 Pinion-Mate0008--01 ~ 0206--01; QG15DE.AT.F4 |
38425-01M05 |
US $33.98 |
||
|
38425Y
|
38425Y
38425-U3000 Pinion-Mate0206--01 ~ 0302--01; QG15DE.AT.F4 |
38425-U3000 |
US $38.59 |
||
|
38425Y
|
38425Y
38425-01M05 Pinion-Mate0008--01 ~ 0206--01; QG15DE.AT.F4 |
38425-01M05 |
US $33.98 |
||
|
38425Y
|
38425Y
38425-U3000 Pinion-Mate0206--01 ~ 0302--01; QG15DE.AT.F4 |
38425-U3000 |
US $38.59 |
||
|
38426Y
|
38426Y
38426-01M14 Washer-Thrust, Pinion Mate0008--01 ~ 0206--01; QG15DE.AT.F4 |
38426-01M14 |
from US $2.78 |
||
|
38426Y
|
38426Y
38426-31X10 Washer-Thrust, Pinion Mate0206--01 ~ 0302--01; QG15DE.AT.F4 |
38426-31X10 |
US $2.45 |
||
|
38426Y
|
38426Y
38426-01M14 Washer-Thrust, Pinion Mate0008--01 ~ 0206--01; QG15DE.AT.F4 |
38426-01M14 |
from US $2.78 |
||
|
38426Y
|
38426Y
38426-31X10 Washer-Thrust, Pinion Mate0206--01 ~ 0302--01; QG15DE.AT.F4 |
38426-31X10 |
US $2.45 |
||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft0008--01 ~ 0302--01; QG15DE.AT.F4 |
38428-P0100 |
from US $0.86 |
||
|
38427Y
|
38427Y
38427-31X05 Shaft-Pinion Mate0008--01 ~ 0206--01; QG15DE.AT.F4 |
38427-31X05 |
US $63.22 |
||
|
38427Y
|
38427Y
38427-31X12 Shaft-Pinion Mate0206--01 ~ 0302--01; QG15DE.AT.F4 |
38427-31X12 |
US $63.22 |
||
|
38440Y
|
38440Y
31409-31X00 Bearing-Differential Side0008--01 ~ 0302--01; QG15DE.AT.F4 |
31409-31X00 |
US $55.58 |
||
|
38440Y
|
38440Y
31409-31X03 Bearing-Differential Side0302--01 ~ ; QG15DE.AT.F4 |
31409-31X03 |
US $35.14 |
||
|
38440Y
|
38440Y
31409-31X00 Bearing-Differential Side0008--01 ~ 0302--01; QG15DE.AT.F4 |
31409-31X00 |
US $55.58 |
||
|
38440Y
|
38440Y
31409-31X03 Bearing-Differential Side0302--01 ~ ; QG15DE.AT.F4 |
31409-31X03 |
US $35.14 |
||
|
38453Y
|
38453Y
38454-M8001 Shim-Adjust, Side Bearing0302--01 ~ ; QG15DE.AT.F4; T=0.48,ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8001 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8003 Shim-Adjust, Side Bearing0302--01 ~ ; QG15DE.AT.F4; T=0.56 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8003 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8005 Shim-Adjust, Side Bearing0302--01 ~ ; QG15DE.AT.F4; T=0.64 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8005 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8007 Shim-Adjust, Side Bearing0302--01 ~ ; QG15DE.AT.F4; T=0.72 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8007 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8009 Shim-Adjust, Side Bearing0008--01 ~ 0302--01; QG15DE.AT.F4; T=0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8009 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8011 Shim-Adjust, Side Bearing0008--01 ~ 0302--01; QG15DE.AT.F4; T=0.88 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8011 |
US $6.34 |
||
|
38453Y
|
38453Y
38454-M8013 Shim-Adjust, Side Bearing0008--01 ~ 0302--01; QG15DE.AT.F4; T=0.96 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8013 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-M8015 Shim-Adjust, Side Bearing0008--01 ~ 0302--01; QG15DE.AT.F4; T=1.04 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8015 |
US $5.47 |
||
