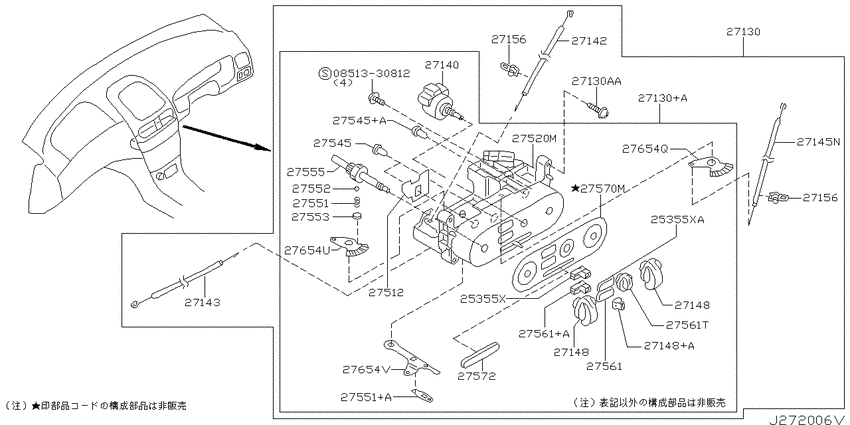

Control unit (2001-04-01 ~ 2003-02-01; S.BC) Diagram Nissan BLUEBIRD SYLPHY
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- BC
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0851330812
|
0851330812
08513-30812
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-30812 |
— | ||
|
25355X
|
25355X
25355-4M460 Knob-Rear Defoger Switch0104--01 ~ 0302--01; S.BC |
25355-4M460 |
US $1.87 |
||
|
25355X
|
25355X
25355-7M000 Knob-Rear Defoger Switch0104--01 ~ 0302--01; S.BC |
25355-7M000 |
US $4.61 |
||
|
25355XA
|
25355XA
25355-7M000 Knob-Rear Defoger Switch0104--01 ~ 0302--01; S.BC |
25355-7M000 |
US $4.61 |
||
|
27130
|
27130
27510-7M001 Control Assy0104--01 ~ 0205--01; S.BC |
27510-7M001 |
US $389.40 |
||
|
27130
|
27130
27510-7M005 Control Assy0205--01 ~ 0302--01; S.BC; [B517] |
27510-7M005 |
US $277.92 |
||
|
27130
|
27130
27510-7M011
Control Assy
0104--01 ~ 0302--01; S.BC |
27510-7M011 |
— | ||
|
27130
|
27130
0145100581 SCREW0104--01 ~ 0302--01; S.BC |
0145100581 |
from US $0.78 |
||
|
27130+A
|
27130+A
27510-7M011
Control Assy
0104--01 ~ 0302--01; S.BC |
27510-7M011 |
— | ||
|
27130AA
|
27130AA
0145100581 SCREW0104--01 ~ 0302--01; S.BC |
0145100581 |
from US $0.78 |
||
|
27140
|
27140
27660-4M400 Switch-Fan0104--01 ~ 0302--01; S.BC |
27660-4M400 |
from US $34.71 |
||
|
27142
|
27142
27541-4M400 Cable-Control, Mode Door0104--01 ~ 0302--01; S.BC |
27541-4M400 |
US $11.23 |
||
|
27143
|
27143
27540-4M400 Cable-Control, Air Intake Door0104--01 ~ 0302--01; S.BC |
27540-4M400 |
US $6.19 |
||
|
27145N
|
27145N
27542-4U010 Cable-Temperature Control0104--01 ~ 0302--01; S.BC |
27542-4U010 |
US $13.25 |
||
|
27148
|
27148
27559-4M400 Knob-Control0104--01 ~ 0302--01; S.BC |
27559-4M400 |
from US $4.18 |
||
|
27148
|
27148
27560-4M400 Knob-Control0104--01 ~ 0302--01; S.BC |
27560-4M400 |
US $2.59 |
||
|
27148
|
27148
27559-4M400 Knob-Control0104--01 ~ 0302--01; S.BC |
27559-4M400 |
from US $4.18 |
||
|
27148
|
27148
27560-4M400 Knob-Control0104--01 ~ 0302--01; S.BC |
27560-4M400 |
US $2.59 |
||
|
27148+A
|
27148+A
27560-4M400 Knob-Control0104--01 ~ 0302--01; S.BC |
27560-4M400 |
US $2.59 |
||
|
27156
|
27156
27156-S0100 Clamp-Cable0104--01 ~ 0302--01; S.BC |
27156-S0100 |
from US $0.98 |
||
|
27156
|
27156
27156-S0100 Clamp-Cable0104--01 ~ 0302--01; S.BC |
27156-S0100 |
from US $0.98 |
||
|
27156
|
27156
27156-S0100 Clamp-Cable0104--01 ~ 0302--01; S.BC |
27156-S0100 |
from US $0.98 |
||
|
27156
|
27156
27156-S0100 Clamp-Cable0104--01 ~ 0302--01; S.BC |
27156-S0100 |
from US $0.98 |
||
|
27512
|
27512
27512-4M461 Amplifier-Control0104--01 ~ 0302--01; S.BC; [B517] |
27512-4M461 |
US $96.48 |
||
|
27520M
|
27520M
27520-4M410 Base-Control0104--01 ~ 0302--01; S.BC |
27520-4M410 |
US $20.16 |
||
|
27545
|
27545
275454M411 Lamp Assy-Heater Control0104--01 ~ 0302--01; S.BC |
275454M411 |
from US $6.66 |
||
|
27545
|
27545
275454M421 Lamp Assy-Heater Control0104--01 ~ 0302--01; S.BC |
275454M421 |
US $8.50 |
||
|
27545+A
|
27545+A
275454M421 Lamp Assy-Heater Control0104--01 ~ 0302--01; S.BC |
275454M421 |
US $8.50 |
||
|
27551
|
27551
27551-4M410 Spring0104--01 ~ 0302--01; S.BC |
27551-4M410 |
US $1.87 |
||
|
27551
|
27551
27635-01A00 Clip0104--01 ~ 0302--01; S.BC |
27635-01A00 |
US $1.15 |
||
|
27551+A
|
27551+A
27635-01A00 Clip0104--01 ~ 0302--01; S.BC |
27635-01A00 |
US $1.15 |
||
|
27552
|
27552
27552-4M400 Ball0104--01 ~ 0302--01; S.BC |
27552-4M400 |
US $1.87 |
||
|
27553
|
27553
27553-4M400 Plate0104--01 ~ 0302--01; S.BC |
27553-4M400 |
US $3.89 |
||
|
27555
|
27555
275554M400 Lens-Heater Control0104--01 ~ 0302--01; S.BC |
275554M400 |
US $3.46 |
||
|
27561
|
27561
275684M460 Button-Air Conditioner0104--01 ~ 0302--01; S.BC |
275684M460 |
US $1.87 |
||
|
27561
|
27561
275687M000 Button-Air Conditioner0104--01 ~ 0302--01; S.BC |
275687M000 |
US $5.90 |
||
|
27561
|
27561
275A1-4M410 Button-Fan0104--01 ~ 0302--01; S.BC |
275A1-4M410 |
from US $3.31 |
||
|
27561+A
|
27561+A
275687M000 Button-Air Conditioner0104--01 ~ 0302--01; S.BC |
275687M000 |
US $5.90 |
||
|
27561T
|
27561T
275A1-4M410 Button-Fan0104--01 ~ 0302--01; S.BC |
275A1-4M410 |
from US $3.31 |
||
|
27570M
|
27570M
27570-4M410 Finisher Assy-Control0104--01 ~ 0302--01; S.BC |
27570-4M410 |
US $14.54 |
||
|
27572
|
27572
27572-4M420 Panel-Finisher0104--01 ~ 0302--01; S.BC |
27572-4M420 |
US $1.87 |
||
|
27654Q
|
27654Q
27527-4M400 Lever-Temp Control0104--01 ~ 0302--01; S.BC |
27527-4M400 |
US $1.87 |
||
|
27654U
|
27654U
27526-4M400 Lever-Mode0104--01 ~ 0302--01; S.BC |
27526-4M400 |
US $10.80 |
||
|
27654V
|
27654V
27525-4M460 Lever-Intake0104--01 ~ 0302--01; S.BC |
27525-4M460 |
US $3.74 |
