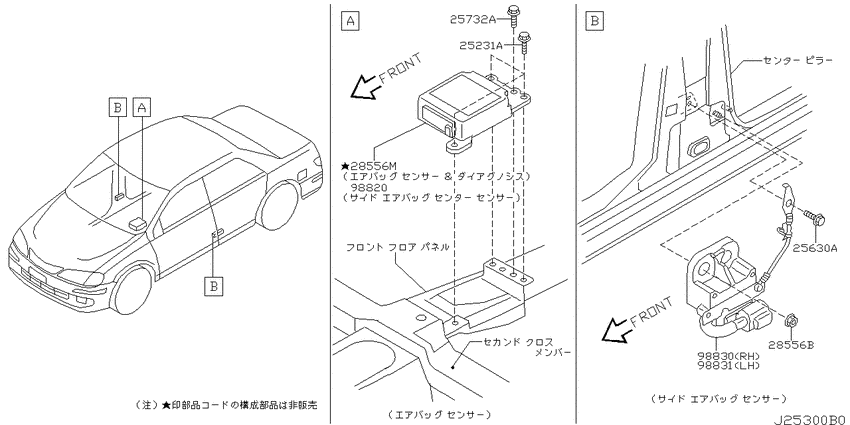

Electrical unit (2000-08-01 ~ 2001-10-01; ﾎﾞﾃﾞｨ; S) Diagram Nissan BLUEBIRD SYLPHY
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- BC
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25231A
|
25231A
0114100461 BOLT0104--01 ~ 0302--01; S |
0114100461 |
US $2.45 |
||
|
25732A
|
25732A
0145600031 SCREW0008--01 ~ 0302--01; S |
0145600031 |
from US $1.11 |
||
|
28556B
|
28556B
01225-00871 NUT0008--01 ~ 0302--01; *S |
01225-00871 |
US $1.73 |
||
|
28556M
|
28556M
28556-6N026 Sensor & Diagnosis-Air Bag0104--01 ~ 0110--01; S.BC |
28556-6N026 |
US $825.53 |
||
|
28556M
|
28556M
28556-6N027 Sensor & Diagnosis-Air Bag0204--01 ~ 0302--01; S |
28556-6N027 |
US $825.53 |
||
|
98820
|
98820
98820-6N325 ｾﾝｻ-,ｻｲﾄﾞ ｴｱ- ﾊﾞﾂｸ ｾﾝﾀ-0104--01 ~ 0110--01; *S.BC |
98820-6N325 |
US $935.98 |
||
|
98820
|
98820
98820-6N326 ｾﾝｻ-,ｻｲﾄﾞ ｴｱ- ﾊﾞﾂｸ ｾﾝﾀ-0204--01 ~ 0302--01; *S |
98820-6N326 |
US $935.98 |
||
|
98830
|
98830
98830-4M426 Sensor-Side Air Bag, Rh0104--01 ~ 0110--01; *S.BC |
98830-4M426 |
US $337.01 |
||
|
98831
|
98831
98831-4M426 Sensor-Side Air Bag, Lh0104--01 ~ 0110--01; *S.BC |
98831-4M426 |
US $337.01 |
