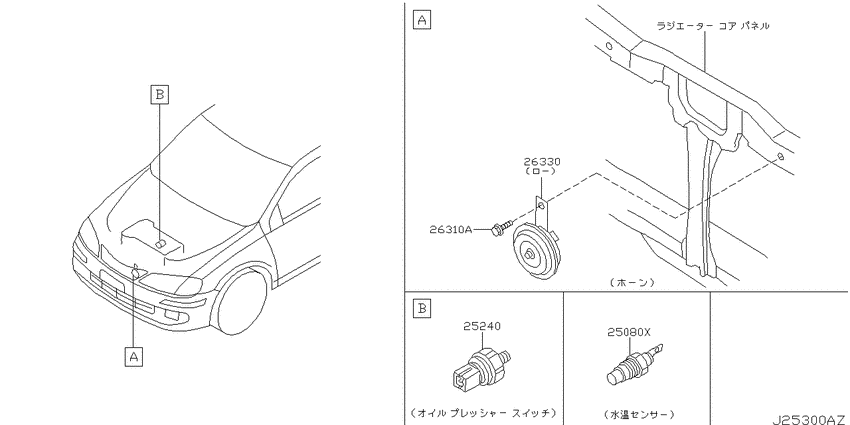

Electrical unit (2000-08-01 ~ 2003-02-01; ｴﾝｼﾞﾝ ﾙｰﾑ; S) Diagram Nissan BLUEBIRD SYLPHY
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- BC
- body
- S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25080X
|
25080X
2508089907 Sensor-Temperature0008--01 ~ 0302--01; S |
2508089907 |
from US $18.63 |
||
|
25240
|
25240
25240-89960
Switch Assy-Oil Pressure
0008--01 ~ 0302--01; S |
25240-89960 |
— | ||
| replacement | |||||
|
25240
|
25240
252408996E Switch Assy-Oil Pressure0008--01 ~ 0302--01; S |
252408996E |
from US $16.43 |
||
|
26310A
|
26310A
01125-00931 SCREW0209--01 ~ 0302--01; S.BC |
01125-00931 |
US $2.45 |
||
|
26310A
|
26310A
01125-03231 BOLT0008--01 ~ 0209--01; S |
01125-03231 |
US $1.73 |
||
|
26330
|
26330
25620-4M400 Horn Assy-Electric Low0104--01 ~ 0302--01; S.BC |
25620-4M400 |
US $53.28 |
||
