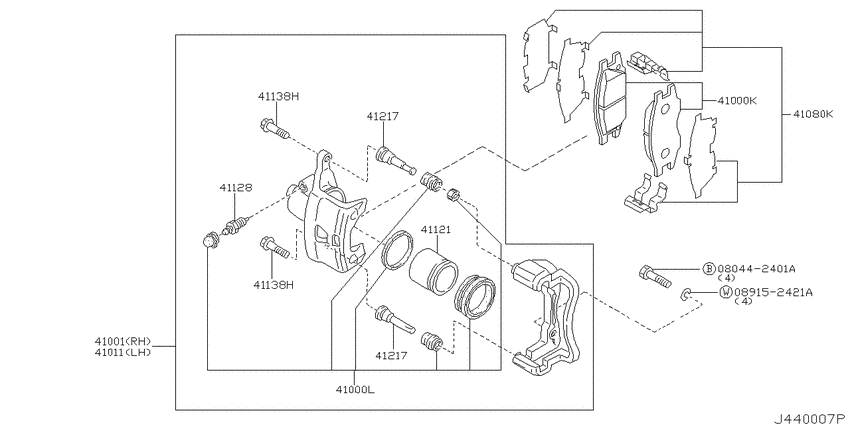

Front brake (2001-07-01 ~ 2001-10-01; QG15DE +QG18DE +QR20DD) Diagram Nissan BLUEBIRD SYLPHY
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- BC
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080442401A
|
080442401A
080442401A Bolt-hexagon |
080442401A |
US $1.91 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
41000K
|
41000K
AY040-NS096 Pad Kit-Disc Brake0008--01 ~ 0302--01; QG15DE +QG18DE +QR20DD |
AY040-NS096 |
US $142.56 |
||
|
41000L
|
41000L
AY600NS008 Seal Kit-Disc Brake0008--01 ~ 0302--01; QG15DE +QG18DE +QR20DD |
AY600NS008 |
US $41.76 |
||
|
41001
|
41001
410014M400 Caliper Assy-Front Rh, W/o Pads Or Shims0008--01 ~ 0302--01; QG15DE +QG18DE +QR20DD |
410014M400 |
US $335.59 |
||
|
41011
|
41011
410114M400 Caliper Assy-Front Lh, W/o Pads Or Shims0008--01 ~ 0302--01; QG15DE +QG18DE +QR20DD |
410114M400 |
US $335.59 |
||
|
41080K
|
41080K
410804M425 Hardware Kit-Front Disc Brake Pad0008--01 ~ 0302--01; QG15DE +QG18DE +QR20DD |
410804M425 |
from US $59.76 |
||
|
41121
|
41121
4112140F00 Piston-Cylinder0104--01 ~ 0110--01; QG15DE.BC +QG18DE.BC |
4112140F00 |
US $35.14 |
||
|
41128
|
41128
4112888E01
SCREW-BLEEDER
0104--01 ~ 0110--01; QG15DE.BC +QG18DE.BC |
4112888E01 |
— | ||
| replacement | |||||
|
41128
|
41128
41128AW70A Screw-Bleeder0104--01 ~ 0110--01; QG15DE.BC +QG18DE.BC |
41128AW70A |
from US $7.63 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
0104--01 ~ 0110--01; QG15DE.BC +QG18DE.BC |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt0104--01 ~ 0110--01; QG15DE.BC +QG18DE.BC |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
0104--01 ~ 0110--01; QG15DE.BC +QG18DE.BC |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt0104--01 ~ 0110--01; QG15DE.BC +QG18DE.BC |
44141AW70A |
from US $3.35 |
||
|
41217
|
41217
4113901A01 Pin0104--01 ~ 0110--01; QG15DE.BC +QG18DE.BC |
4113901A01 |
from US $7.63 |
||
|
41217
|
41217
4113901A01 Pin0104--01 ~ 0110--01; QG15DE.BC +QG18DE.BC |
4113901A01 |
from US $7.63 |
||
