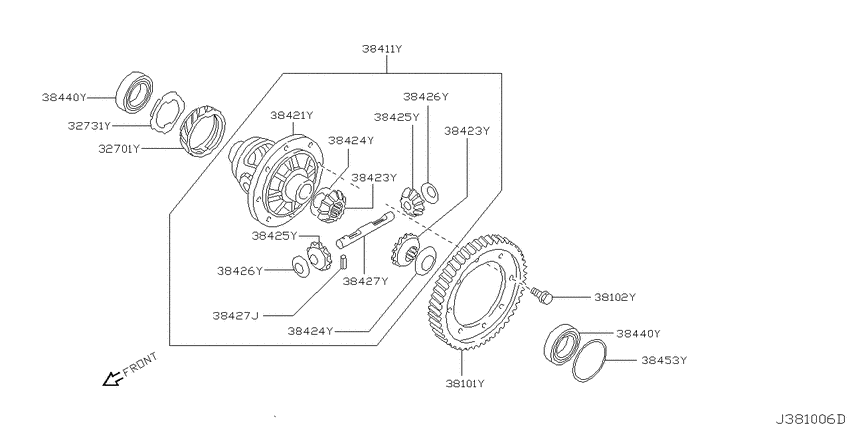

Front final drive (2000-08-01 ~ 2003-02-01; QG15DE.MT) Diagram Nissan BLUEBIRD SYLPHY
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- BC
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-01M00 Gear-Drive, Speedometer0008--01 ~ 0302--01; QG15DE.MT |
32701-01M00 |
US $19.44 |
||
|
32701Y
|
32701Y
32701-D2100 Gear-Drive, Speedometer0110--01 ~ 0302--01; *QG15DE.BC.MT |
32701-D2100 |
US $19.44 |
||
|
32731Y
|
32731Y
38431-D2100 Stopper-Speedometer Drive Gear0110--01 ~ 0302--01; *QG15DE.BC.MT |
38431-D2100 |
US $4.75 |
||
|
32731Y
|
32731Y
38431-M8003 Stopper-Speedometer Drive Gear0008--01 ~ 0302--01; QG15DE.MT |
38431-M8003 |
US $2.88 |
||
|
38101Y
|
38101Y
38101-54A06 Gear-Final Drive0008--01 ~ 0302--01; QG15DE.MT |
38101-54A06 |
US $138.96 |
||
|
38101Y
|
38101Y
38101-6J009 Gear-Final Drive0110--01 ~ 0302--01; *QG15DE.BC.MT |
38101-6J009 |
US $181.44 |
||
|
38102Y
|
38102Y
38102-6J000 Bolt-Drive Gear0008--01 ~ 0302--01; QG15DE.MT |
38102-6J000 |
US $2.45 |
||
|
38411Y
|
38411Y
38411-01M64 Case Compl-Differential0008--01 ~ 0302--01; QG15DE.MT |
38411-01M64 |
US $774.55 |
||
|
38411Y
|
38411Y
38411-67Y01 Case Compl-Differential0110--01 ~ 0302--01; *QG15DE.BC.MT |
38411-67Y01 |
US $774.55 |
||
|
38421Y
|
38421Y
38421-01M00 Case-Differential0008--01 ~ 0302--01; QG15DE.MT |
38421-01M00 |
US $471.53 |
||
|
38421Y
|
38421Y
38421-D2100 Case-Differential0110--01 ~ 0302--01; *QG15DE.BC.MT |
38421-D2100 |
US $471.53 |
||
|
38423Y
|
38423Y
38423-01M00 Gear-Side0008--01 ~ 0302--01; QG15DE.MT |
38423-01M00 |
US $98.35 |
||
|
38423Y
|
38423Y
38423-D2100 Gear-Side0110--01 ~ 0302--01; *QG15DE.BC.MT |
38423-D2100 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-01M00 Gear-Side0008--01 ~ 0302--01; QG15DE.MT |
38423-01M00 |
US $98.35 |
||
|
38423Y
|
38423Y
38423-D2100 Gear-Side0110--01 ~ 0302--01; *QG15DE.BC.MT |
38423-D2100 |
US $100.80 |
||
|
38424Y
|
38424Y
38424-01M10 Washer-Thrust, Side Gear0104--01 ~ 0302--01; QG15DE.MT; T=0.76-0.81 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-01M10 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M11 Washer-Thrust, Side Gear0104--01 ~ 0302--01; QG15DE.MT; T=0.81-0.86 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-01M11 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M12 Washer-Thrust, Side Gear0104--01 ~ 0302--01; QG15DE.MT; T=0.86-0.91 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-01M12 |
US $4.16 |
||
|
38424Y
|
38424Y
38424-01M13 Washer-Thrust, Side Gear0104--01 ~ 0302--01; QG15DE.MT; T=0.91-0.96 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-01M13 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear0110--01 ~ 0302--01; *QG15DE.BC.MT; T=0.75-0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear0110--01 ~ 0302--01; *QG15DE.BC.MT; T=0.80-0.85 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear0110--01 ~ 0302--01; *QG15DE.BC.MT; T=0.85-0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear0110--01 ~ 0302--01; *QG15DE.BC.MT; T=0.90-0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear0110--01 ~ 0302--01; *QG15DE.BC.MT; T=0.95-1.00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2115 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-01M10 Washer-Thrust, Side Gear0104--01 ~ 0302--01; QG15DE.MT; T=0.76-0.81 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-01M10 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M11 Washer-Thrust, Side Gear0104--01 ~ 0302--01; QG15DE.MT; T=0.81-0.86 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-01M11 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-01M12 Washer-Thrust, Side Gear0104--01 ~ 0302--01; QG15DE.MT; T=0.86-0.91 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-01M12 |
US $4.16 |
||
|
38424Y
|
38424Y
38424-01M13 Washer-Thrust, Side Gear0104--01 ~ 0302--01; QG15DE.MT; T=0.91-0.96 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-01M13 |
US $3.46 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear0110--01 ~ 0302--01; *QG15DE.BC.MT; T=0.75-0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear0110--01 ~ 0302--01; *QG15DE.BC.MT; T=0.80-0.85 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear0110--01 ~ 0302--01; *QG15DE.BC.MT; T=0.85-0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear0110--01 ~ 0302--01; *QG15DE.BC.MT; T=0.90-0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear0110--01 ~ 0302--01; *QG15DE.BC.MT; T=0.95-1.00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2115 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-01M05 Pinion-Mate0008--01 ~ 0110--01; QG15DE.MT |
38425-01M05 |
US $33.98 |
||
|
38425Y
|
38425Y
38425-U3000 Pinion-Mate0110--01 ~ 0302--01; *QG15DE.BC.MT |
38425-U3000 |
US $38.59 |
||
|
38425Y
|
38425Y
38425-01M05 Pinion-Mate0008--01 ~ 0110--01; QG15DE.MT |
38425-01M05 |
US $33.98 |
||
|
38425Y
|
38425Y
38425-U3000 Pinion-Mate0110--01 ~ 0302--01; *QG15DE.BC.MT |
38425-U3000 |
US $38.59 |
||
|
38426Y
|
38426Y
38426-01M14 Washer-Thrust, Pinion Mate0008--01 ~ 0110--01; QG15DE.MT |
38426-01M14 |
from US $2.78 |
||
|
38426Y
|
38426Y
38426-31X10 Washer-Thrust, Pinion Mate0110--01 ~ 0302--01; *QG15DE.BC.MT |
38426-31X10 |
US $2.45 |
||
|
38426Y
|
38426Y
38426-01M14 Washer-Thrust, Pinion Mate0008--01 ~ 0110--01; QG15DE.MT |
38426-01M14 |
from US $2.78 |
||
|
38426Y
|
38426Y
38426-31X10 Washer-Thrust, Pinion Mate0110--01 ~ 0302--01; *QG15DE.BC.MT |
38426-31X10 |
US $2.45 |
||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft0110--01 ~ 0302--01; *QG15DE.BC.MT |
38428-P0100 |
from US $0.86 |
||
|
38427J
|
38427J
38428U1500 Pin-Lock, Pinion Shaft0008--01 ~ 0302--01; QG15DE.MT |
38428U1500 |
from US $0.50 |
||
|
38427Y
|
38427Y
38427-01M00 Shaft-Pinion Mate0008--01 ~ 0302--01; QG15DE.MT |
38427-01M00 |
US $12.90 |
||
|
38427Y
|
38427Y
38427-D2102 Shaft-Pinion Mate0110--01 ~ 0302--01; *QG15DE.BC.MT |
38427-D2102 |
US $18.72 |
||
|
38440Y
|
38440Y
384405U401 Bearing-Differential Side0104--01 ~ 0110--01; QG15DE.BC.MT |
384405U401 |
US $35.14 |
||
|
38440Y
|
38440Y
38440-5U402 Bearing-Differential Side0112--01 ~ 0302--01; QG15DE.MT |
38440-5U402 |
US $35.14 |
||
|
38440Y
|
38440Y
38440-6J001 Bearing-Differential Side0110--01 ~ 0302--01; *QG15DE.BC.MT |
38440-6J001 |
US $35.14 |
||
|
38440Y
|
38440Y
384405U401 Bearing-Differential Side0104--01 ~ 0110--01; QG15DE.BC.MT |
384405U401 |
US $35.14 |
||
|
38440Y
|
38440Y
38440-5U402 Bearing-Differential Side0112--01 ~ 0302--01; QG15DE.MT |
38440-5U402 |
US $35.14 |
||
|
38440Y
|
38440Y
38440-6J001 Bearing-Differential Side0110--01 ~ 0302--01; *QG15DE.BC.MT |
38440-6J001 |
US $35.14 |
||
|
38453Y
|
38453Y
38454-M8000 Shim-Adjust, Side Bearing0008--01 ~ 0302--01; QG15DE.MT; T=0.44,ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8000 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8001 Shim-Adjust, Side Bearing0008--01 ~ 0302--01; QG15DE.MT; T=0.48,ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8001 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8002 Shim-Adjust, Side Bearing0110--01 ~ 0302--01; *QG15DE.BC.MT; T=0.52 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8002 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-M8003 Shim-Adjust, Side Bearing0008--01 ~ 0302--01; QG15DE.MT; T=0.56 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8003 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8004 Shim-Adjust, Side Bearing0008--01 ~ 0302--01; QG15DE.MT; T=0.60 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8004 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8005 Shim-Adjust, Side Bearing0008--01 ~ 0302--01; QG15DE.MT; T=0.64 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8005 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8006 Shim-Adjust, Side Bearing0008--01 ~ 0302--01; QG15DE.MT; T=0.68 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8006 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8007 Shim-Adjust, Side Bearing0008--01 ~ 0302--01; QG15DE.MT; T=0.72 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8007 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8008 Shim-Adjust, Side Bearing0008--01 ~ 0302--01; QG15DE.MT; T=0.76 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8008 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8009 Shim-Adjust, Side Bearing0008--01 ~ 0302--01; QG15DE.MT; T=0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8009 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8010 Shim-Adjust, Side Bearing0008--01 ~ 0302--01; QG15DE.MT; T=0.84 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8010 |
US $6.34 |
||
|
38453Y
|
38453Y
38454-M8011 Shim-Adjust, Side Bearing0008--01 ~ 0302--01; QG15DE.MT; T=0.88 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8011 |
US $6.34 |
