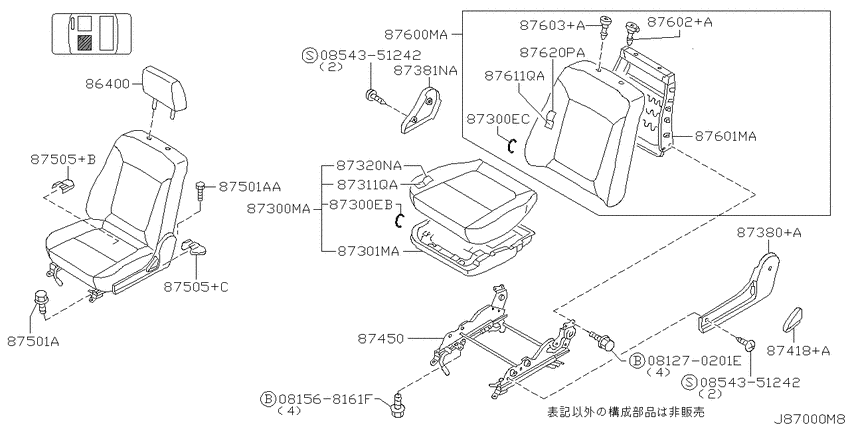

Front seat (2001-10-01 ~ 2003-02-01; LHシート; S) Diagram Nissan BLUEBIRD SYLPHY
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- BC
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
081568161F
|
081568161F
081568161F
BOLTHEXPP WW
|
081568161F |
— | ||
|
0854351242
|
0854351242
0854351242 SCREWTAPPING |
0854351242 |
US $2.21 |
||
|
0854351242
|
0854351242
0854351242 SCREWTAPPING |
0854351242 |
US $2.21 |
||
|
86400
|
86400
86400-5M311 Head Rest Assy-Front Seat0104--01 ~ 0110--01; S.BC |
86400-5M311 |
US $197.28 |
||
|
86400
|
86400
86400-6M006 Head Rest Assy-Front Seat0110--01 ~ 0302--01; *S.QG15DE.BC |
86400-6M006 |
US $197.28 |
||
|
86400
|
86400
86400-6N311 ﾍﾂﾄﾞ ﾚｽﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ0104--01 ~ 0110--01; *S.BC |
86400-6N311 |
US $257.76 |
||
|
87300EB
|
87300EB
8690132200 Clip0008--01 ~ 0302--01; S |
8690132200 |
from US $0.22 |
||
|
87300EC
|
87300EC
8690132200 Clip0008--01 ~ 0302--01; S |
8690132200 |
from US $0.22 |
||
|
87300MA
|
87300MA
87350-6N301 ｸﾂｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ0110--01 ~ 0302--01; S.BC; [D105] |
87350-6N301 |
US $1,244.66 |
||
|
87300MA
|
87300MA
87350-6N306 ｸﾂｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ0104--01 ~ 0110--01; S.BC; [D105] |
87350-6N306 |
US $950.14 |
||
|
87301MA
|
87301MA
87351-89900 Frame Assy-Front Seat Cushion0008--01 ~ 0302--01; S |
87351-89900 |
US $244.80 |
||
|
87311QA
|
87311QA
87361-4M500 ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0008--01 ~ 0302--01; S |
87361-4M500 |
US $188.64 |
||
|
87320NA
|
87320NA
87370-6N306 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0104--01 ~ 0302--01; *S.BC; [D105] |
87370-6N306 |
US $477.19 |
||
|
87380+A
|
87380+A
87380-89901 Finisher Assy-Cushion, Front Seat Lh0104--01 ~ 0302--01; S.BC |
87380-89901 |
US $25.78 |
||
|
87381NA
|
87381NA
87381-89901 Finisher-Cushion, Front Seat Inner Lh0104--01 ~ 0302--01; S.BC |
87381-89901 |
US $25.78 |
||
|
87418+A
|
87418+A
87468-89901 Knob-Reclining Device0104--01 ~ 0302--01; S.BC |
87468-89901 |
US $8.35 |
||
|
87450
|
87450
87450-4M410 Adjuster Assy-Front Seat, Lh0104--01 ~ 0110--01; S.BC |
87450-4M410 |
US $317.18 |
||
|
87450
|
87450
87450-6M001 Adjuster Assy-Front Seat, Lh0104--01 ~ 0110--01; *S.BC |
87450-6M001 |
US $317.18 |
||
|
87450
|
87450
87450-6N060 ｱｼﾞﾔｽﾀ- ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ lh0110--01 ~ 0302--01; S |
87450-6N060 |
US $484.27 |
||
|
87501A
|
87501A
86899-50J00 Bolt0008--01 ~ 0110--01; *S |
86899-50J00 |
US $3.06 |
||
|
87501A
|
87501A
0112107251 BOLT0008--01 ~ 0110--01; *S |
0112107251 |
from US $1.18 |
||
|
87501AA
|
87501AA
0112107251 BOLT0008--01 ~ 0110--01; *S |
0112107251 |
from US $1.18 |
||
|
87505+B
|
87505+B
87558-4M400 Cover-Seat Slide0104--01 ~ 0110--01; S.BC |
87558-4M400 |
US $13.86 |
||
|
87505+B
|
87505+B
87558-6N061 ｶﾊﾞ-,ｼ-ﾄ ｽﾗｲﾄﾞ0110--01 ~ 0302--01; S.BC |
87558-6N061 |
US $12.96 |
||
|
87505+C
|
87505+C
875594M400
Cover-Seat Slide
0104--01 ~ 0110--01; S.BC |
875594M400 |
— | ||
|
87505+C
|
87505+C
87559-6N061 ｶﾊﾞ-,ｼ-ﾄ ｽﾗｲﾄﾞ0110--01 ~ 0302--01; S.BC |
87559-6N061 |
US $12.96 |
||
|
87600MA
|
87600MA
87650-6N306 ﾊﾞﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ0104--01 ~ 0302--01; S.BC; [D105] |
87650-6N306 |
US $950.14 |
||
|
87601MA
|
87601MA
87601-89900 Frame Assy-Front Seat Back0008--01 ~ 0302--01; S |
87601-89900 |
US $205.92 |
||
|
87601MA
|
87601MA
87651-79903 Frame Assy-Front Seat Back0008--01 ~ 0302--01; *S |
87651-79903 |
US $226.08 |
||
|
87602+A
|
87602+A
87602-79910 ﾎﾙﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾍﾂﾄﾞﾚｽﾄ ﾛﾂｸ0104--01 ~ 0302--01; *S.BC |
87602-79910 |
US $5.04 |
||
|
87602+A
|
87602+A
87602-89910 Holder Assy-Headrest, Lock0104--01 ~ 0302--01; S.BC |
87602-89910 |
US $5.47 |
||
|
87603+A
|
87603+A
87603-79910 ﾎﾙﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾍﾂﾄﾞﾚｽﾄ ﾌﾘ-0104--01 ~ 0302--01; *S.BC |
87603-79910 |
US $5.04 |
||
|
87603+A
|
87603+A
87603-89910 Holder Assy-Headrest, Free0104--01 ~ 0302--01; S.BC |
87603-89910 |
US $5.47 |
||
|
87611QA
|
87611QA
87661-6N005 ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0012--01 ~ 0302--01; S |
87661-6N005 |
US $188.64 |
||
|
87611QA
|
87611QA
87661-6N040 Pad-Front Seat Back0012--01 ~ 0302--01; *S |
87661-6N040 |
US $191.52 |
||
|
87620PA
|
87620PA
87670-6N306 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0104--01 ~ 0302--01; S.BC; [D105] |
87670-6N306 |
US $477.19 |
||
|
87620PA
|
87620PA
87670-6N341 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0104--01 ~ 0302--01; *S.BC; [D105] |
87670-6N341 |
US $624.46 |
