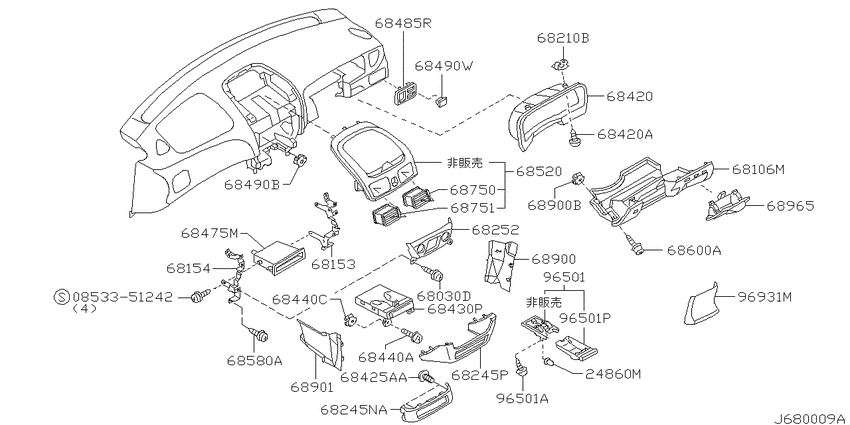

Instrument panel, pad & cluster lid (2001-04-01 ~ 2003-02-01; インストパッド&クラスターリッド; S.BC) Diagram Nissan BLUEBIRD SYLPHY
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- BC
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0853351242
|
0853351242
0853351242
Screw
|
0853351242 |
— | ||
|
24860M
|
24860M
24860-5V000 Socket & Bulb0104--01 ~ 0302--01; S.BC |
24860-5V000 |
US $16.42 |
||
|
68030D
|
68030D
0145100581 SCREW0104--01 ~ 0302--01; S.BC |
0145100581 |
from US $0.72 |
||
|
68106M
|
68106M
68106-4M710 ﾊﾟﾈﾙ,ｲﾝｽﾄﾙﾒﾝﾄ ﾛｱ ﾄﾞﾗｲﾊﾞ-0104--01 ~ 0302--01; S.BC |
68106-4M710 |
US $100.80 |
||
|
68153
|
68153
28038-4M700 Bracket-Radio Mounting, Rh0104--01 ~ 0302--01; S.BC |
28038-4M700 |
US $24.77 |
||
|
68154
|
68154
28039-4M700 Bracket-Radio Mounting, Lh0104--01 ~ 0302--01; S.BC |
28039-4M700 |
US $24.77 |
||
|
68210B
|
68210B
68191-51E00
NUT
0104--01 ~ 0302--01; S.BC |
68191-51E00 |
— | ||
| replacement | |||||
|
68210B
|
68210B
6819151E0A Nut0104--01 ~ 0302--01; S.BC |
6819151E0A |
US $1.39 |
||
|
68245NA
|
68245NA
68262-4M900
ﾘﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｸﾗｽﾀ- ﾛｱ
0104--01 ~ 0110--01; S.BC |
68262-4M900 |
— | ||
|
68245NA
|
68245NA
68262-4M902 LID ASSY0110--01 ~ 0302--01; S.BC |
68262-4M902 |
US $67.39 |
||
|
68245P
|
68245P
68246-4M700 ﾘﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｸﾗｽﾀ- ﾛｱ0104--01 ~ 0302--01; S.BC |
68246-4M700 |
US $90 |
||
|
68252
|
68252
27575-4M700 ﾌｲﾆﾂｼﾔ-,ﾋ-ﾀ- ｺﾝﾄﾛ-ﾙ0104--01 ~ 0110--01; S.BC |
27575-4M700 |
US $32.83 |
||
|
68252
|
68252
27575-4M702 ﾌｲﾆﾂｼﾔ-,ﾋ-ﾀ- ｺﾝﾄﾛ-ﾙ0110--01 ~ 0302--01; S.BC |
27575-4M702 |
US $55.87 |
||
|
68420
|
68420
68240-4M710 ﾘﾂﾄﾞ,ｸﾗｽﾀ-0104--01 ~ 0110--01; S.BC |
68240-4M710 |
US $145.44 |
||
|
68420
|
68420
68240-4M711 ﾘﾂﾄﾞ,ｸﾗｽﾀ-0110--01 ~ 0302--01; S.BC |
68240-4M711 |
US $144 |
||
|
68420
|
68420
0145100581 SCREW0104--01 ~ 0302--01; S.BC |
0145100581 |
from US $0.72 |
||
|
68420A
|
68420A
0145100581 SCREW0104--01 ~ 0302--01; S.BC |
0145100581 |
from US $0.72 |
||
|
68425AA
|
68425AA
0145100581 SCREW0104--01 ~ 0302--01; S.BC |
0145100581 |
from US $0.72 |
||
|
68430P
|
68430P
68430-4M710 ﾎﾙﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｶﾂﾌﾟ0104--01 ~ 0110--01; S.BC |
68430-4M710 |
US $61.49 |
||
|
68430P
|
68430P
68430-4M711 HOLDER ASSYCUP0110--01 ~ 0302--01; S.BC |
68430-4M711 |
US $55.73 |
||
|
68440A
|
68440A
0145100581 SCREW0104--01 ~ 0302--01; S.BC |
0145100581 |
from US $0.72 |
||
|
68440C
|
68440C
68191-51E00
NUT
0104--01 ~ 0302--01; S.BC |
68191-51E00 |
— | ||
| replacement | |||||
|
68440C
|
68440C
6819151E0A Nut0104--01 ~ 0302--01; S.BC |
6819151E0A |
US $1.39 |
||
|
68475M
|
68475M
6847535F00 Pocket-Deck0104--01 ~ 0302--01; S.BC |
6847535F00 |
from US $17.19 |
||
|
68485R
|
68485R
68485-4M700 ﾊﾟﾈﾙ,ｽｲﾂﾁ0104--01 ~ 0302--01; S.BC |
68485-4M700 |
US $26.93 |
||
|
68490B
|
68490B
68191-51E00
NUT
0104--01 ~ 0302--01; S.BC |
68191-51E00 |
— | ||
| replacement | |||||
|
68490B
|
68490B
6819151E0A Nut0104--01 ~ 0302--01; S.BC |
6819151E0A |
US $1.39 |
||
|
68490W
|
68490W
6896064J10 Mask-Switch0104--01 ~ 0302--01; S.BC |
6896064J10 |
from US $9.30 |
||
|
68520
|
68520
682608M600 ﾘﾂﾄﾞ,ｸﾗｽﾀ-0104--01 ~ 0110--01; S.BC |
682608M600 |
US $178.56 |
||
| replacement | |||||
|
68520
|
68520
68260-6M60A
Cluster lid
0104--01 ~ 0110--01; S.BC |
68260-6M60A |
— | ||
|
68520
|
68520
68260-8M602 ﾘﾂﾄﾞ,ｸﾗｽﾀ-0110--01 ~ 0302--01; S.BC |
68260-8M602 |
US $178.56 |
||
|
68580A
|
68580A
0145100681 SCREW0104--01 ~ 0302--01; S.BC |
0145100681 |
US $1.73 |
||
|
68600A
|
68600A
0145100581 SCREW0104--01 ~ 0302--01; S.BC |
0145100581 |
from US $0.72 |
||
|
68750
|
68750
68750-4M700 ﾍﾞﾝﾁﾚｰﾀｰ ｱﾂｾﾝﾌﾞﾘｰ,ｾﾝﾀｰ rh0104--01 ~ 0302--01; S.BC |
68750-4M700 |
US $70.56 |
||
|
68751
|
68751
68751-4M700 ﾍﾞﾝﾁﾚｰﾀｰ ｱﾂｾﾝﾌﾞﾘｰ,ｾﾝﾀｰ lh0104--01 ~ 0302--01; S.BC |
68751-4M700 |
US $70.56 |
||
|
68900
|
68900
68920-4M700 ｶﾊﾞ-,ｲﾝｽﾄﾙﾒﾝﾄ ﾛｱ rh0104--01 ~ 0302--01; S.BC |
68920-4M700 |
US $43.49 |
||
|
68900
|
68900
68191-51E00
NUT
0104--01 ~ 0302--01; S.BC |
68191-51E00 |
— | ||
| replacement | |||||
|
68900
|
68900
6819151E0A Nut0104--01 ~ 0302--01; S.BC |
6819151E0A |
US $1.39 |
||
|
68900B
|
68900B
68191-51E00
NUT
0104--01 ~ 0302--01; S.BC |
68191-51E00 |
— | ||
| replacement | |||||
|
68900B
|
68900B
6819151E0A Nut0104--01 ~ 0302--01; S.BC |
6819151E0A |
US $1.39 |
||
|
68901
|
68901
68921-4M700 ｶﾊﾞ-,ｲﾝｽﾄﾙﾒﾝﾄ ﾛｱ lh0104--01 ~ 0302--01; S.BC |
68921-4M700 |
US $43.49 |
||
|
68965
|
68965
68964-4M700 LIDFUSE BLOCK0104--01 ~ 0302--01; S.BC |
68964-4M700 |
from US $22.32 |
||
|
96501
|
96501
68800-4M700 ｱｼﾕﾄﾚ-,ｲﾝｽﾄﾙﾒﾝﾄ0104--01 ~ 0110--01; S.BC |
68800-4M700 |
US $54.14 |
||
|
96501
|
96501
68800-4M702 ｱｼﾕﾄﾚ-,ｲﾝｽﾄﾙﾒﾝﾄ0110--01 ~ 0302--01; S.BC |
68800-4M702 |
US $59.90 |
||
|
96501
|
96501
0145100581 SCREW0104--01 ~ 0302--01; S.BC |
0145100581 |
from US $0.72 |
||
|
96501
|
96501
68810-4M700 ｱｼﾕﾄﾚ-,ｲﾝﾅ- ｲﾝｽﾄﾙﾒﾝﾄ0104--01 ~ 0110--01; S.BC |
68810-4M700 |
US $32.83 |
||
|
96501
|
96501
68810-4M702 ASHTRAYINNER0110--01 ~ 0302--01; S.BC |
68810-4M702 |
US $27.22 |
||
|
96501A
|
96501A
0145100581 SCREW0104--01 ~ 0302--01; S.BC |
0145100581 |
from US $0.72 |
||
|
96501P
|
96501P
68810-4M700 ｱｼﾕﾄﾚ-,ｲﾝﾅ- ｲﾝｽﾄﾙﾒﾝﾄ0104--01 ~ 0110--01; S.BC |
68810-4M700 |
US $32.83 |
||
|
96501P
|
96501P
68810-4M702 ASHTRAYINNER0110--01 ~ 0302--01; S.BC |
68810-4M702 |
US $27.22 |
||
|
96931M
|
96931M
96931-4M700 ﾌｲﾆﾂｼﾔｰ,ｺﾝｿﾛｰﾙ0104--01 ~ 0302--01; S.BC |
96931-4M700 |
US $13.97 |
||
