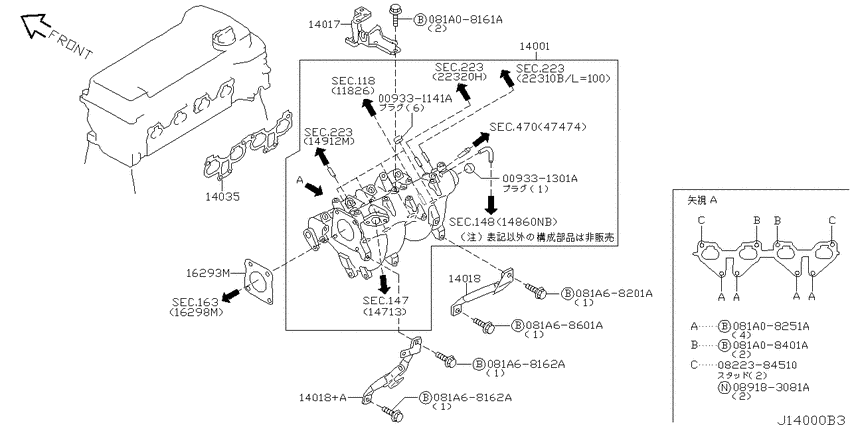

Manifold (2000-08-01 ~ 2003-02-01; インテーク パーツ; QG15DE) Diagram Nissan BLUEBIRD SYLPHY
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- BC
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331141A
|
009331141A
00933-1141A Plug-Welch |
00933-1141A |
US $2.21 |
||
|
009331301A
|
009331301A
009331301A Plug-Welch |
009331301A |
from US $1.15 |
||
|
081A08161A
|
081A08161A
081A0-8161A BOLTFLANGE |
081A0-8161A |
US $1.30 |
||
|
081A08251A
|
081A08251A
081A0-8251A
BOLTFLANGE
|
081A0-8251A |
— | ||
|
081A08401A
|
081A08401A
081A08401A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
081A08401A |
— | ||
|
081A68162A
|
081A68162A
081A68162A
BOLT
|
081A68162A |
— | ||
|
081A68162A
|
081A68162A
081A68162A
BOLT
|
081A68162A |
— | ||
|
081A68201A
|
081A68201A
081A68201A BOLTFLANGE |
081A68201A |
US $1.24 |
||
|
081A68601A
|
081A68601A
081A6-8601A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
081A6-8601A |
— | ||
|
0822384510
|
0822384510
08223-84510
STUD
|
08223-84510 |
— | ||
|
089183081A
|
089183081A
089183081A NUT FLANGE HEX |
089183081A |
US $1 |
||
|
118
|
Crankcase ventilation
118
|
||||
|
14001
|
14001
14001-6N010 Manifold Assy-Intake0008--01 ~ 0302--01; QG15DE |
14001-6N010 |
US $533.83 |
||
|
14017
|
14017
14017-4M500 Support-Manifold0008--01 ~ 0302--01; QG15DE |
14017-4M500 |
US $31.68 |
||
|
14018
|
14018
14018-4M500 Support-Manifold0008--01 ~ 0302--01; QG15DE |
14018-4M500 |
US $23.18 |
||
|
14018
|
14018
14018-4M510 Support-Manifold0008--01 ~ 0302--01; QG15DE |
14018-4M510 |
US $23.18 |
||
|
14018+A
|
14018+A
14018-4M510 Support-Manifold0008--01 ~ 0302--01; QG15DE |
14018-4M510 |
US $23.18 |
||
|
14035
|
14035
140354M500 Gasket-Manifold0008--01 ~ 0302--01; QG15DE |
140354M500 |
US $23.62 |
||
|
147
|
Egr parts
147
|
||||
|
148
|
Secondary air system
148
|
||||
|
16293M
|
16293M
161754M500 Gasket-Throttle Chamber0008--01 ~ 0302--01; QG15DE |
161754M500 |
from US $4 |
||
|
163
|
Throttle chamber
163
|
||||
|
163
|
Throttle chamber
163
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
470
|
Brake servo & servo control
470
|
||||
