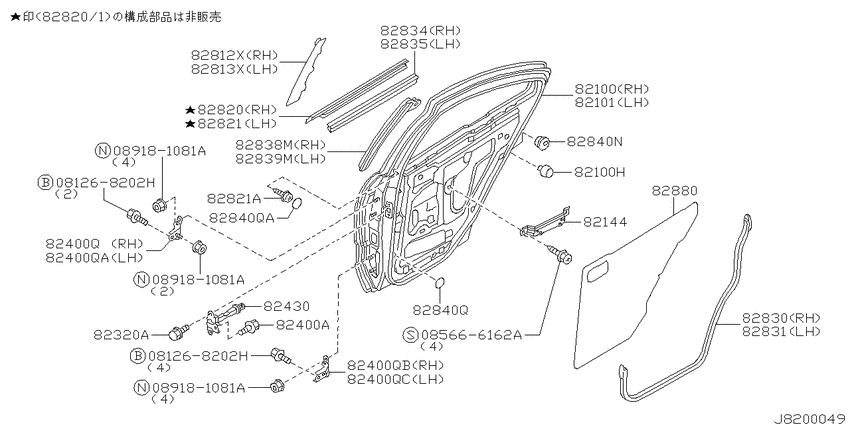

Rear door panel & fitting (2001-10-01 ~ 2003-02-01; S) Diagram Nissan BLUEBIRD SYLPHY
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- BC
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268202H
|
081268202H
08126-8202H Bolt-hexagon |
08126-8202H |
US $3.06 |
||
|
081268202H
|
081268202H
08126-8202H Bolt-hexagon |
08126-8202H |
US $3.06 |
||
|
085666162A
|
085666162A
085666162A SCREWTAPPING |
085666162A |
US $2.21 |
||
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
82100
|
82100
H21004M5MM Rr ﾄﾞｱ rh0008--01 ~ 0302--01; S |
H21004M5MM |
US $608.88 |
||
|
82100
|
82100
80872W1011 Bumper Rubber-Door0008--01 ~ 0302--01; S |
80872W1011 |
from US $3.32 |
||
|
82100H
|
82100H
80872W1011 Bumper Rubber-Door0008--01 ~ 0302--01; S |
80872W1011 |
from US $3.32 |
||
|
82101
|
82101
H21014M5MM Rr ﾄﾞｱ lh0008--01 ~ 0302--01; S |
H21014M5MM |
US $608.88 |
||
|
82144
|
82144
82144-4M430 Frame-Rear Door Inner, Rh0008--01 ~ 0302--01; S |
82144-4M430 |
US $38.45 |
||
|
82320A
|
82320A
01121-07261 BOLT0110--01 ~ 0302--01; S |
01121-07261 |
from US $0.11 |
||
|
82400A
|
82400A
80498-40U00
Bolt
0008--01 ~ 0302--01; S |
80498-40U00 |
— | ||
| replacement | |||||
|
82400A
|
82400A
80498-40U0B Bolt0008--01 ~ 0302--01; S |
80498-40U0B |
from US $0.87 |
||
|
82400Q
|
82400Q
82400-3J100 Hinge Assy-Rear Door, Upper Rh0008--01 ~ 0302--01; S |
82400-3J100 |
US $35.42 |
||
|
82400Q
|
82400Q
82401-3J100 Hinge Assy-Rear Door, Upper Lh0008--01 ~ 0302--01; S |
82401-3J100 |
US $35.42 |
||
|
82400Q
|
82400Q
824203J100 Hinge Assy-Front Door0008--01 ~ 0302--01; S |
824203J100 |
from US $40.61 |
||
|
82400Q
|
82400Q
824213J100 Hinge Assy-Front Door0008--01 ~ 0302--01; S |
824213J100 |
from US $38.79 |
||
|
82400QA
|
82400QA
82401-3J100 Hinge Assy-Rear Door, Upper Lh0008--01 ~ 0302--01; S |
82401-3J100 |
US $35.42 |
||
|
82400QB
|
82400QB
824203J100 Hinge Assy-Front Door0008--01 ~ 0302--01; S |
824203J100 |
from US $40.61 |
||
|
82400QC
|
82400QC
824213J100 Hinge Assy-Front Door0008--01 ~ 0302--01; S |
824213J100 |
from US $38.79 |
||
|
82430
|
82430
82430-4M400 Link-Check, Rear Door0008--01 ~ 0302--01; S |
82430-4M400 |
US $34.78 |
||
|
82812X
|
82812X
82812-4M500
ﾃｰﾌﾟ ﾘｱ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ,rh
0008--01 ~ 0302--01; S |
82812-4M500 |
— | ||
| replacement | |||||
|
82812X
|
82812X
828128N700 ﾃｰﾌﾟ ﾘｱ ﾄﾞｱ,rh0008--01 ~ 0302--01; S |
828128N700 |
from US $16.34 |
||
|
82813X
|
82813X
82813-4M500
ﾃｰﾌﾟ ﾘｱ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ,lh
0008--01 ~ 0302--01; S |
82813-4M500 |
— | ||
| replacement | |||||
|
82813X
|
82813X
828138N700 ﾃｰﾌﾟ ﾘｱ ﾄﾞｱ,lh0008--01 ~ 0302--01; S |
828138N700 |
US $20.80 |
||
|
82820
|
82820
828204M510 MOULDINGREAR D0008--01 ~ 0302--01; S |
828204M510 |
US $74.30 |
||
|
82821
|
82821
828214M510 MOULDINGREAR D0008--01 ~ 0302--01; S |
828214M510 |
from US $74.30 |
||
|
82821
|
82821
01464-00181 SCREW0008--01 ~ 0302--01; S |
01464-00181 |
US $0.86 |
||
|
82821A
|
82821A
01464-00181 SCREW0008--01 ~ 0302--01; S |
01464-00181 |
US $0.86 |
||
|
82830
|
82830
82830-4M422 Weatherstrip-Rear Door, Rh0008--01 ~ 0302--01; S |
82830-4M422 |
from US $43.11 |
||
|
82831
|
82831
828314M422 Weatherstrip-Rear Door, Lh0008--01 ~ 0302--01; S |
828314M422 |
US $40.61 |
||
|
82834
|
82834
82834-4M700 ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾘﾔ ﾄﾞｱ ｲﾝｻｲﾄﾞ rh0104--01 ~ 0302--01; S |
82834-4M700 |
US $27.50 |
||
|
82835
|
82835
82835-4M700 ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾘﾔ ﾄﾞｱ ｲﾝｻｲﾄﾞ lh0104--01 ~ 0302--01; S |
82835-4M700 |
US $27.50 |
||
|
82838M
|
82838M
828384M700 SEALREAR DOOR0008--01 ~ 0302--01; S |
828384M700 |
from US $20.92 |
||
|
82839M
|
82839M
828394M700 SEALREAR DOOR0008--01 ~ 0302--01; S |
828394M700 |
US $20.92 |
||
|
82840N
|
82840N
82840-40U00 Cover-Child Lock Lever0008--01 ~ 0302--01; S |
82840-40U00 |
US $6.91 |
||
|
82840Q
|
82840Q
808404M410
Cover-Hole, Front Door Inside
0008--01 ~ 0302--01; S |
808404M410 |
— | ||
| replacement | |||||
|
82840Q
|
82840Q
80840-1VA0C Cover-Hole0008--01 ~ 0302--01; S |
80840-1VA0C |
US $8.73 |
||
|
82840Q
|
82840Q
64892W5000 Unit Assy-Divider Tachometer0008--01 ~ 0302--01; S |
64892W5000 |
from US $0.96 |
||
|
82840QA
|
82840QA
64892W5000 Unit Assy-Divider Tachometer0008--01 ~ 0302--01; S |
64892W5000 |
from US $0.96 |
||
|
82880
|
82880
828604M401 Screen-Sealing, Rear Door0008--01 ~ 0302--01; S |
828604M401 |
US $14.69 |
||
