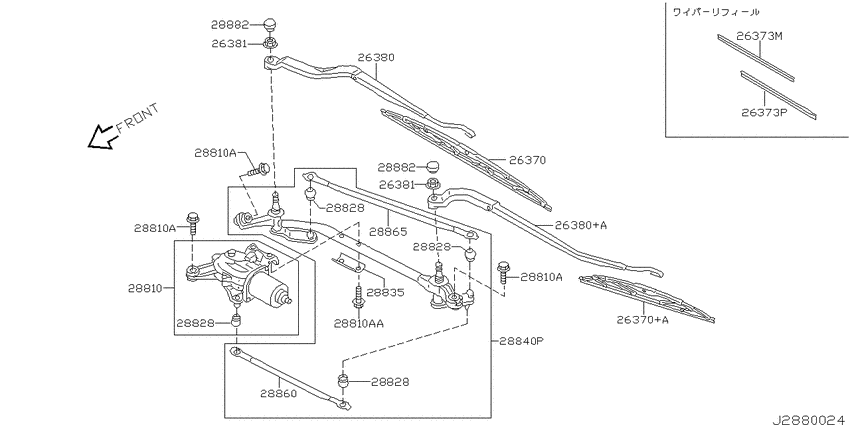

Windshield wiper (2000-08-01 ~ 2001-10-01; S) Diagram Nissan BLUEBIRD SYLPHY
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- BC
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26370
|
26370
AY002U550R Blade Assy-Windshield Wiper0008--01 ~ 0302--01; S |
AY002U550R |
US $33.12 |
||
|
26370
|
26370
AY001U400R Blade Assy-Rear Window Wiper0008--01 ~ 0302--01; S |
AY001U400R |
US $23.04 |
||
|
26370+A
|
26370+A
AY001U400R Blade Assy-Rear Window Wiper0008--01 ~ 0302--01; S |
AY001U400R |
US $23.04 |
||
|
26373M
|
26373M
AY020AW550
Refill-Wiper Blade, Driver
0104--01 ~ 0110--01; *S.BC |
AY020AW550 |
— | ||
| replacement | |||||
|
26373M
|
26373M
AY020AW55X Refill-Wiper Blade, Driver0104--01 ~ 0110--01; *S.BC |
AY020AW55X |
US $8.23 |
||
|
26373P
|
26373P
AY020TW40A Refill-Wiper Blade Assist0104--01 ~ 0110--01; *S.BC |
AY020TW40A |
US $7.26 |
||
|
26380
|
26380
28881-4M400 Arm Assy-Windshield Wiper0008--01 ~ 0111--01; S |
28881-4M400 |
US $53.57 |
||
|
26380
|
26380
288814M410 Arm Assy-Windshield Wiper0111--01 ~ 0302--01; S |
288814M410 |
US $53.28 |
||
|
26380
|
26380
28886-4M400 Arm Assy-Windshield Wiper0008--01 ~ 0111--01; S |
28886-4M400 |
US $53.57 |
||
|
26380
|
26380
288864M410 Arm Assy-Windshield Wiper0111--01 ~ 0207--01; S |
288864M410 |
US $53.57 |
||
|
26380
|
26380
28886-4M415 Arm Assy-Windshield Wiper0207--01 ~ 0302--01; S |
28886-4M415 |
US $53.28 |
||
|
26380+A
|
26380+A
28886-4M400 Arm Assy-Windshield Wiper0008--01 ~ 0111--01; S |
28886-4M400 |
US $53.57 |
||
|
26380+A
|
26380+A
288864M410 Arm Assy-Windshield Wiper0111--01 ~ 0207--01; S |
288864M410 |
US $53.57 |
||
|
26380+A
|
26380+A
28886-4M415 Arm Assy-Windshield Wiper0207--01 ~ 0302--01; S |
28886-4M415 |
US $53.28 |
||
|
26381
|
26381
28889-50J10 Nut-Wiper Arm0008--01 ~ 0302--01; S |
28889-50J10 |
US $3.46 |
||
|
26381
|
26381
28889-50J10 Nut-Wiper Arm0008--01 ~ 0302--01; S |
28889-50J10 |
US $3.46 |
||
|
28810
|
28810
28810-4M400 Motor Assy-Windshield Wiper0008--01 ~ 0302--01; S |
28810-4M400 |
US $287.45 |
||
|
28810
|
28810
0143601741 SCREW0008--01 ~ 0302--01; S |
0143601741 |
US $1.73 |
||
|
28810
|
28810
288994M410 Screw0008--01 ~ 0302--01; S |
288994M410 |
US $2.45 |
||
| replacement | |||||
|
28810
|
28810
28899-4M41A
Screw
0008--01 ~ 0302--01; S |
28899-4M41A |
— | ||
|
28810A
|
28810A
0143601741 SCREW0008--01 ~ 0302--01; S |
0143601741 |
US $1.73 |
||
|
28810A
|
28810A
288994M410 Screw0008--01 ~ 0302--01; S |
288994M410 |
US $2.45 |
||
| replacement | |||||
|
28810A
|
28810A
28899-4M41A
Screw
0008--01 ~ 0302--01; S |
28899-4M41A |
— | ||
|
28810A
|
28810A
0143601741 SCREW0008--01 ~ 0302--01; S |
0143601741 |
US $1.73 |
||
|
28810A
|
28810A
288994M410 Screw0008--01 ~ 0302--01; S |
288994M410 |
US $2.45 |
||
| replacement | |||||
|
28810A
|
28810A
28899-4M41A
Screw
0008--01 ~ 0302--01; S |
28899-4M41A |
— | ||
|
28810A
|
28810A
0143601741 SCREW0008--01 ~ 0302--01; S |
0143601741 |
US $1.73 |
||
|
28810A
|
28810A
288994M410 Screw0008--01 ~ 0302--01; S |
288994M410 |
US $2.45 |
||
| replacement | |||||
|
28810A
|
28810A
28899-4M41A
Screw
0008--01 ~ 0302--01; S |
28899-4M41A |
— | ||
|
28810AA
|
28810AA
288994M410 Screw0008--01 ~ 0302--01; S |
288994M410 |
US $2.45 |
||
| replacement | |||||
|
28810AA
|
28810AA
28899-4M41A
Screw
0008--01 ~ 0302--01; S |
28899-4M41A |
— | ||
|
28828
|
28828
2882865F01 Seal-Ball Retainer0104--01 ~ 0110--01; S.BC |
2882865F01 |
from US $1.83 |
||
|
28828
|
28828
2882865F01 Seal-Ball Retainer0104--01 ~ 0110--01; S.BC |
2882865F01 |
from US $1.83 |
||
|
28828
|
28828
2882865F01 Seal-Ball Retainer0104--01 ~ 0110--01; S.BC |
2882865F01 |
from US $1.83 |
||
|
28828
|
28828
2882865F01 Seal-Ball Retainer0104--01 ~ 0110--01; S.BC |
2882865F01 |
from US $1.83 |
||
|
28840P
|
28840P
28840-4M500 Link Assy-Wiper0008--01 ~ 0302--01; S |
28840-4M500 |
US $85.39 |
||
|
28860
|
28860
28841-4M400 Link Assy-Connecting, No 10008--01 ~ 0302--01; S |
28841-4M400 |
US $12.53 |
||
|
28865
|
28865
28842-4M400 Link Assy-Connecting, No 20008--01 ~ 0302--01; S |
28842-4M400 |
US $12.53 |
||
|
28882
|
28882
2888250J00 Cover-Wiper Arm0008--01 ~ 0302--01; S; [B113] |
2888250J00 |
US $4.30 |
||
|
28882
|
28882
2888250J00 Cover-Wiper Arm0008--01 ~ 0302--01; S; [B113] |
2888250J00 |
US $4.30 |
||
