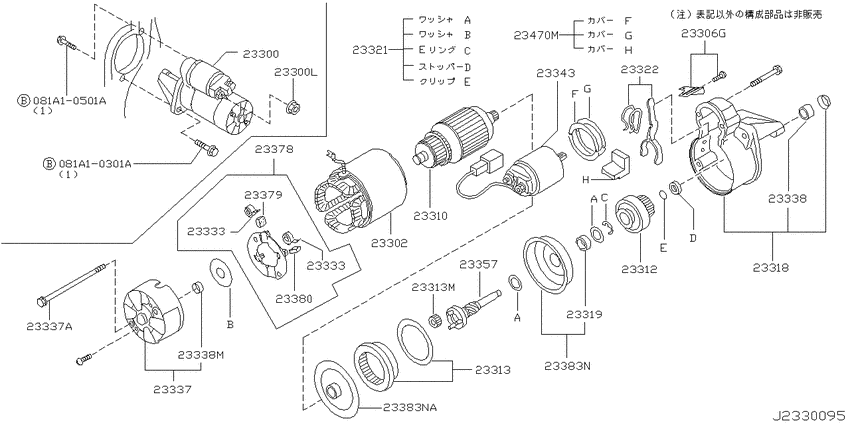

Starter motor (2000-08-01 ~ ; 日立; QG18DE) Diagram Nissan BLUEBIRD SYLPHY
- Year
- 2001 - 2012
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- BC
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A10301A
|
081A10301A
081A10301A ﾎﾞﾙﾄ |
081A10301A |
US $3.22 |
||
|
081A10501A
|
081A10501A
081A10501A ﾎﾞﾙﾄ |
081A10501A |
US $2.34 |
||
|
23300
|
23300
23300-6N160 Motor Assy-Starter0008--01 ~ ; 2WD.QG18DE; ﾋﾀﾁ |
23300-6N160 |
US $1,309.80 |
||
|
23300
|
23300
0122100381 NUT0008--01 ~ ; QG18DE |
0122100381 |
from US $5.85 |
||
|
23300L
|
23300L
0122100381 NUT0008--01 ~ ; QG18DE |
0122100381 |
from US $5.85 |
||
|
23302
|
23302
23302-2J200 Yoke Assy0008--01 ~ ; QG18DE; ﾋﾀﾁ |
23302-2J200 |
US $253.44 |
||
| replacement | |||||
|
23302
|
23302
23302-0M30A Yoke Assy0008--01 ~ ; QG18DE; ﾋﾀﾁ |
23302-0M30A |
US $253.44 |
||
|
23306G
|
23306G
23347-73Y00 Plate-Connecting0008--01 ~ ; QG18DE; ﾋﾀﾁ |
23347-73Y00 |
US $28.51 |
||
|
23310
|
23310
23310-6N160 Armature Assy0008--01 ~ ; 2WD.QG18DE; ﾋﾀﾁ |
23310-6N160 |
US $468.70 |
||
|
23312
|
23312
23312-50Y01 Pinion Assy0008--01 ~ ; QG18DE; ﾋﾀﾁ |
23312-50Y01 |
US $117.36 |
||
|
23313
|
23313
23361-6N160 Gear0008--01 ~ ; 2WD.QG18DE; ﾋﾀﾁ |
23361-6N160 |
US $59.47 |
||
|
23313
|
23313
23367-6N160 Planet Gear0008--01 ~ ; 2WD.QG18DE; ﾋﾀﾁ |
23367-6N160 |
US $17.28 |
||
|
23313M
|
23313M
23367-6N160 Planet Gear0008--01 ~ ; 2WD.QG18DE; ﾋﾀﾁ |
23367-6N160 |
US $17.28 |
||
|
23318
|
23318
23318-6N160 Case Assy-Gear0008--01 ~ ; 2WD.QG18DE; ﾋﾀﾁ |
23318-6N160 |
US $159.84 |
||
|
23319
|
23319
23319-97E00 METAL-GEAR CASE0008--01 ~ ; QG18DE; ﾋﾀﾁ |
23319-97E00 |
US $11.66 |
||
|
23321
|
23321
233200M300 Washer Set-Thrust0008--01 ~ ; QG18DE; ﾋﾀﾁ |
233200M300 |
US $6.34 |
||
|
23322
|
23322
233220M300 Lever Set-Shift0008--01 ~ ; QG18DE; ﾋﾀﾁ |
233220M300 |
from US $19.30 |
||
|
23333
|
23333
23333-50Y02 Spring-Brush0008--01 ~ ; QG18DE; ﾋﾀﾁ |
23333-50Y02 |
US $6.24 |
||
|
23333
|
23333
23333-50Y02 Spring-Brush0008--01 ~ ; QG18DE; ﾋﾀﾁ |
23333-50Y02 |
US $6.24 |
||
|
23337
|
23337
23337-AA300 Cover Assy-Rear0008--01 ~ ; 2WD.QG18DE; ﾋﾀﾁ |
23337-AA300 |
US $43.06 |
||
|
23337
|
23337
23340-M4900 Bolt-Through0008--01 ~ ; QG18DE; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through0008--01 ~ ; QG18DE; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23338
|
23338
23338N3300 Metal-Rear Cover0008--01 ~ ; QG18DE; ﾋﾀﾁ |
23338N3300 |
US $5.18 |
||
|
23338
|
23338
2333897E00 BEARING-REAR COVER0008--01 ~ ; QG18DE; ﾋﾀﾁ |
2333897E00 |
US $10.37 |
||
|
23338M
|
23338M
2333897E00 BEARING-REAR COVER0008--01 ~ ; QG18DE; ﾋﾀﾁ |
2333897E00 |
US $10.37 |
||
|
23343
|
23343
23343-70Y01 Switch Assy-Magnetic0008--01 ~ ; 2WD.QG18DE; ﾋﾀﾁ |
23343-70Y01 |
US $204.48 |
||
|
23357
|
23357
23357-6N160 Shaft-Pinion0008--01 ~ ; 2WD.QG18DE; ﾋﾀﾁ |
23357-6N160 |
US $108.43 |
||
|
23378
|
23378
23378-0M300 Holder Assy-Brush0008--01 ~ ; QG18DE; ﾋﾀﾁ |
23378-0M300 |
US $54.43 |
||
|
23379
|
23379
23379-0M300 Brush-Minus0008--01 ~ ; QG18DE; ﾋﾀﾁ |
23379-0M300 |
US $10.08 |
||
|
23380
|
23380
23380-0M300 Brush-Plus0008--01 ~ ; QG18DE; ﾋﾀﾁ |
23380-0M300 |
US $15.98 |
||
|
23383N
|
23383N
23383-2J201 Bracket Assy-Center0008--01 ~ ; QG18DE; ﾋﾀﾁ |
23383-2J201 |
US $26.78 |
||
|
23383N
|
23383N
23383-6N160 Bracket Assy-Center0008--01 ~ ; 2WD.QG18DE; ﾋﾀﾁ |
23383-6N160 |
US $42.34 |
||
|
23383NA
|
23383NA
23383-6N160 Bracket Assy-Center0008--01 ~ ; 2WD.QG18DE; ﾋﾀﾁ |
23383-6N160 |
US $42.34 |
||
|
23470M
|
23470M
23470-0M300 Cover-Dust0008--01 ~ ; QG18DE; ﾋﾀﾁ |
23470-0M300 |
US $10.08 |
||
