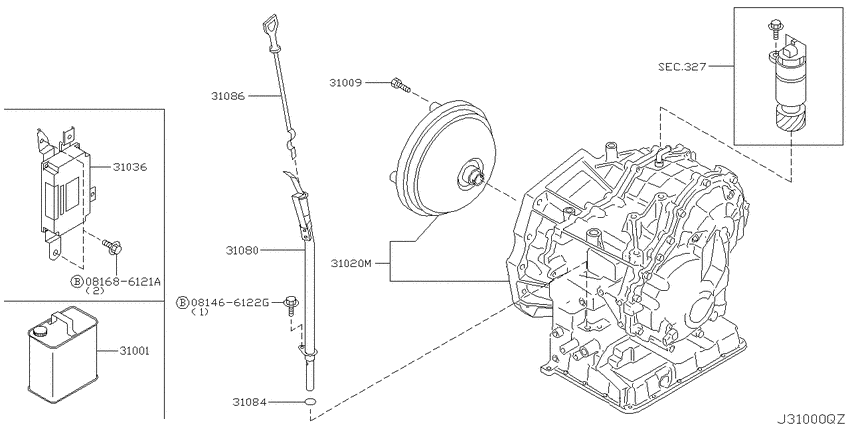

Auto transmission,transaxle & fitting (2003-03-01 ~ ; &アッセンブリー&フィッティング パーツ; CVT) Diagram Nissan BLUEBIRD SYLPHY
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- QR20DD
- drive
- 2WD
- transmission
- CVT
- grade
- XJ/G
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
31001
|
31001
KLE50-00004
Fluid-Automatic Transmission (cannot be supplied)
0302--01 ~ ; CVT; ﾆﾂｻﾝ CVT ﾌﾙｰﾄﾞ NS1[M310] |
KLE50-00004 |
— | ||
| replacement | |||||
|
31001
|
31001
KLE520000403 Atf(cvt)0302--01 ~ ; CVT; ﾆﾂｻﾝ CVT ﾌﾙｰﾄﾞ NS1[M310] |
KLE520000403 |
US $66.41 |
||
|
31009
|
31009
3100921X00 Bolt-Self Lock0302--01 ~ ; CVT |
3100921X00 |
from US $4.85 |
||
|
31020M
|
31020M
31020-8E075 TRANSAXLE ASSY-AUTOMATIC0302--01 ~ ; CVT |
31020-8E075 |
US $5,600 |
||
|
31036
|
31036
31036-6N600 Control Unit-Shift0302--01 ~ 0304--01; CVT |
31036-6N600 |
US $597.55 |
||
|
31036
|
31036
31036-6N601 Control Unit-Shift0304--01 ~ ; CVT |
31036-6N601 |
US $597.55 |
||
|
31080
|
31080
310805U000 Pipe Assy-Oil Charging0302--01 ~ ; CVT |
310805U000 |
US $53.42 |
||
|
31084
|
31084
31084M7500 Seal-O Ring0302--01 ~ 0412--01; CVT |
31084M7500 |
US $1.15 |
||
|
31084
|
31084
31084M750A Seal-O Ring0412--01 ~ ; CVT |
31084M750A |
US $1.67 |
||
|
31086
|
31086
31086-5J015 Gauge Assy-Oil Level0302--01 ~ ; CVT |
31086-5J015 |
US $18.43 |
||
|
327
|
Speedometer pinion
327
|
||||
