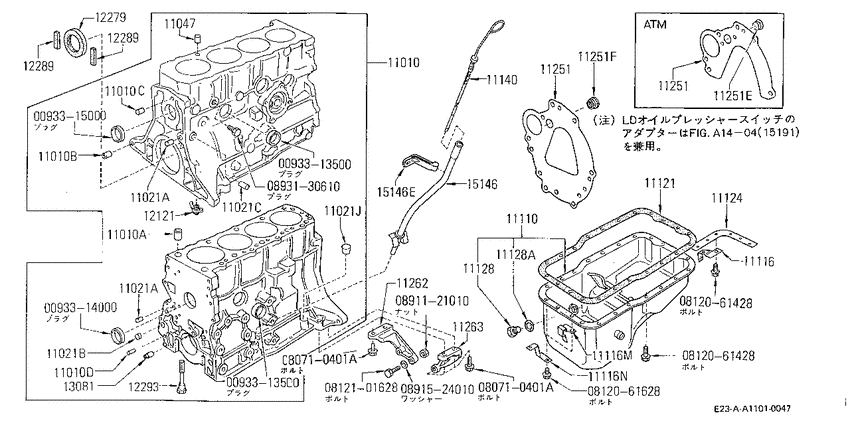

Cylinder - block & ｵｲﾙﾊﾟﾝ (1982-05-01 ~ ; LD20T) Diagram Nissan CARAVAN/HOMY
- Year
- 1982 - 2012
- Sales region
- Japan
- Engine
- LD20T
- transmission
- F5
- Number of doors
- 4D
- grade
- SGL
- body
- K
- body type
- SB
- capacity
- 8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0093313500
|
0093313500
00933-13500
PLUG-WELCH
|
00933-13500 |
— | ||
| replacement | |||||
|
0093313500
|
0093313500
00933-1355A
Plug-welch
|
00933-1355A |
— | ||
|
0093313500
|
0093313500
00933-13500
PLUG-WELCH
|
00933-13500 |
— | ||
| replacement | |||||
|
0093313500
|
0093313500
00933-1355A
Plug-welch
|
00933-1355A |
— | ||
|
0093315000
|
0093315000
00933-15000
PLUG-WELCH
|
00933-15000 |
— | ||
| replacement | |||||
|
0093315000
|
0093315000
00933-15010 PLUG-WELCH |
00933-15010 |
from US $1.52 |
||
|
080710401A
|
080710401A
08071-0401A
Bolt-hexagon
|
08071-0401A |
— | ||
|
080710401A
|
080710401A
08071-0401A
Bolt-hexagon
|
08071-0401A |
— | ||
|
0812061428
|
0812061428
0812061428
Bolt-hexagon
|
0812061428 |
— | ||
|
0812061428
|
0812061428
0812061428
Bolt-hexagon
|
0812061428 |
— | ||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
US $2.21 |
||
|
0812101628
|
0812101628
0812101628
Bolt-hexagon
|
0812101628 |
— | ||
|
0891121010
|
0891121010
08911-21010
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-21010 |
— | ||
|
0891524010
|
0891524010
08915-24010
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-24010 |
— | ||
|
0893130610
|
0893130610
08931-30610
ﾌﾟﾗｸﾞ,ｽﾚﾂﾄﾞ
|
08931-30610 |
— | ||
|
11010
|
11010
11010-W3490 Block Assy-Cylinder8205--01 ~ ; LD20T |
11010-W3490 |
US $2,030 |
||
|
11010
|
11010
11053V0700 Dowel-Block To Head8205--01 ~ ; LD20T |
11053V0700 |
from US $0.72 |
||
|
11010
|
11010
1102221000 Dowel-Block To Transmission8205--01 ~ ; LD20T; ﾌﾞﾛﾂｸ ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ |
1102221000 |
from US $0.59 |
||
|
11010
|
11010
30412-H1000
Dowel-Block
8205--01 ~ ; LD20T; ﾌﾞﾛﾂｸ ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ |
30412-H1000 |
— | ||
|
11010
|
11010
1104673402 Dowel-Water Pump8205--01 ~ ; LD20T |
1104673402 |
from US $0.48 |
||
|
11010A
|
11010A
11053V0700 Dowel-Block To Head8205--01 ~ ; LD20T |
11053V0700 |
from US $0.72 |
||
|
11010B
|
11010B
1102221000 Dowel-Block To Transmission8205--01 ~ ; LD20T; ﾌﾞﾛﾂｸ ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ |
1102221000 |
from US $0.59 |
||
|
11010C
|
11010C
30412-H1000
Dowel-Block
8205--01 ~ ; LD20T; ﾌﾞﾛﾂｸ ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ |
30412-H1000 |
— | ||
|
11010D
|
11010D
1104673402 Dowel-Water Pump8205--01 ~ ; LD20T |
1104673402 |
from US $0.48 |
||
|
11021A
|
11021A
11024K0100 Plug-Taper8205--01 ~ ; LD20T; ﾒｲﾝ ｷﾞﾔﾗﾘ- ﾖｳ |
11024K0100 |
from US $0.52 |
||
|
11021A
|
11021A
11024K0100 Plug-Taper8205--01 ~ ; LD20T; ﾒｲﾝ ｷﾞﾔﾗﾘ- ﾖｳ |
11024K0100 |
from US $0.52 |
||
|
11021B
|
11021B
01647-00011 Plug-Taper8205--01 ~ ; LD20T |
01647-00011 |
US $1.73 |
||
|
11021C
|
11021C
11021-21000
Plug-Welch
8205--01 ~ ; LD20T |
11021-21000 |
— | ||
| replacement | |||||
|
11021C
|
11021C
009331401A Plug-Welch8205--01 ~ ; LD20T |
009331401A |
from US $1.13 |
||
|
11021J
|
11021J
11022-U6700 Plug-Taper, Level Gauge8205--01 ~ ; LD20T |
11022-U6700 |
US $3.06 |
||
|
11047
|
11047
11047-21000 Jet-Oil, Cylinder Head8205--01 ~ ; LD20T |
11047-21000 |
US $1.52 |
||
|
11110
|
11110
11110-W3400 Pan Assy-Oil8205--01 ~ 8301--01; LD20T |
11110-W3400 |
US $167.04 |
||
|
11110
|
11110
11110-W3401 Pan Assy-Oil8301--01 ~ ; LD20T |
11110-W3401 |
US $167.04 |
||
|
11121
|
11121
11121-A3500 Gasket-Oil Pan8205--01 ~ ; LD20T |
11121-A3500 |
US $12.10 |
||
|
11124
|
11124
11124-W0400 Reinforcement-Oil Pan8205--01 ~ ; LD20T |
11124-W0400 |
US $8.93 |
||
|
11128
|
11128
1112869200
Plug-Drain
8205--01 ~ ; LD20T |
1112869200 |
— | ||
| replacement | |||||
|
11128
|
11128
11128-6920A Plug-Drain8205--01 ~ ; LD20T |
11128-6920A |
from US $7.44 |
||
|
11128
|
11128
1102661000 Washer-Drain Plug8205--01 ~ ; LD20T |
1102661000 |
from US $0.85 |
||
|
11128A
|
11128A
1102661000 Washer-Drain Plug8205--01 ~ ; LD20T |
1102661000 |
from US $0.85 |
||
|
11140
|
11140
11140-R8400 Gauge-Oil Level8205--01 ~ 8207--01; LD20T |
11140-R8400 |
US $11.38 |
||
|
11140
|
11140
11140-R8401 Gauge-Oil Level8207--01 ~ ; LD20T |
11140-R8401 |
US $11.38 |
||
|
11251
|
11251
30411-W1700
Plate-Engine, Rear
8205--01 ~ 8301--01; LD20T.MT |
30411-W1700 |
— | ||
|
11251
|
11251
30411-W3400 Plate-Engine, Rear8301--01 ~ ; LD20T.MT |
30411-W3400 |
US $44.78 |
||
|
11251
|
11251
27035-V0700 Plug-Rubber, Rear Plate8205--01 ~ ; LD20T |
27035-V0700 |
US $3.02 |
||
|
11251
|
11251
30411-W1700
Plate-Engine, Rear
8205--01 ~ 8301--01; LD20T.MT |
30411-W1700 |
— | ||
|
11251
|
11251
30411-W3400 Plate-Engine, Rear8301--01 ~ ; LD20T.MT |
30411-W3400 |
US $44.78 |
||
|
11251
|
11251
27035-V0700 Plug-Rubber, Rear Plate8205--01 ~ ; LD20T |
27035-V0700 |
US $3.02 |
||
|
11251F
|
11251F
27035-V0700 Plug-Rubber, Rear Plate8205--01 ~ ; LD20T |
27035-V0700 |
US $3.02 |
||
|
11262
|
11262
30429-H7900 Gusset-Cylinder Block, Rh8205--01 ~ ; LD20T |
30429-H7900 |
US $57.46 |
||
|
11263
|
11263
30430-K1200 Gusset-Cylinder Block, Lh8205--01 ~ ; LD20T |
30430-K1200 |
US $55.87 |
||
|
12121
|
12121
11560-W3400 Jet Assy-Oil8205--01 ~ 8307--01; LD20T |
11560-W3400 |
US $48.67 |
||
|
12121
|
12121
11560-W3401 Jet Assy-Oil8307--01 ~ ; LD20T |
11560-W3401 |
US $49.68 |
||
|
12279
|
12279
12279-R4601
Seal-Oil, Crankshaft Rear
8205--01 ~ ; LD20T; ｾﾝﾀｸ NOK |
12279-R4601 |
— | ||
| replacement | |||||
|
12279
|
12279
12279-5L300
Seal-Oil, Crankshaft Rear
8205--01 ~ ; LD20T; ｾﾝﾀｸ NOK |
12279-5L300 |
— | ||
|
12279
|
12279
12279R4611 Seal-Oil, Crankshaft Rear8205--01 ~ ; LD20T; ｾﾝﾀｸ NDK |
12279R4611 |
US $21.74 |
||
|
12289
|
12289
12289-V0700 Seal-Oil, Rear Bearing Cap Side8205--01 ~ ; LD20T |
12289-V0700 |
US $2.30 |
||
|
12289
|
12289
12289-V0700 Seal-Oil, Rear Bearing Cap Side8205--01 ~ ; LD20T |
12289-V0700 |
US $2.30 |
||
|
12293
|
12293
12293-V0700 Bolt-Main Bearing Cap8205--01 ~ ; LD20T |
12293-V0700 |
US $2.45 |
||
|
13081
|
13081
13081-21000 Jet-Oil, Timing Chain8205--01 ~ ; LD20T |
13081-21000 |
US $2.45 |
||
|
15146
|
15146
15146-W3401 Guide-Oil Level Gauge8205--01 ~ ; LD20T |
15146-W3401 |
US $20.88 |
||
|
15146
|
15146
15147-W3401 Support Assy-Oil Level Gauge8205--01 ~ ; LD20T |
15147-W3401 |
US $15.12 |
||
|
15146E
|
15146E
15147-W3401 Support Assy-Oil Level Gauge8205--01 ~ ; LD20T |
15147-W3401 |
US $15.12 |
||
