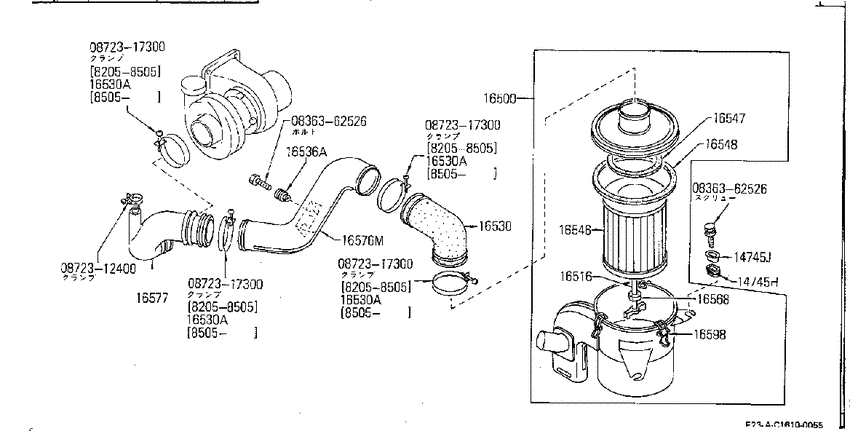

ｴｱ ｸﾘ-ﾅ- & ｴｱ ﾌﾛ- ﾒ-ﾀ- (1982-05-01 ~ ; LD20T) Diagram Nissan CARAVAN/HOMY
- Year
- 1982 - 2012
- Sales region
- Japan
- Engine
- LD20T
- transmission
- F5
- Number of doors
- 4D
- grade
- SGL
- body
- K
- body type
- SB
- capacity
- 8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836362526
|
0836362526
08363-62526
BOLT-REAR WIPER MOTOR
|
08363-62526 |
— | ||
|
0836362526
|
0836362526
08363-62526
BOLT-REAR WIPER MOTOR
|
08363-62526 |
— | ||
|
0872312400
|
0872312400
08723-12400
CLAMP-HOSE,B
|
08723-12400 |
— | ||
| replacement | |||||
|
0872312400
|
0872312400
0155501121 CLAMP-HOSE |
0155501121 |
US $3.06 |
||
|
0872317300
|
0872317300
08723-17300 CLAMP-HOSE |
08723-17300 |
US $3.46 |
||
|
0872317300
|
0872317300
08723-17300 CLAMP-HOSE |
08723-17300 |
US $3.46 |
||
|
0872317300
|
0872317300
08723-17300 CLAMP-HOSE |
08723-17300 |
US $3.46 |
||
|
0872317300
|
0872317300
08723-17300 CLAMP-HOSE |
08723-17300 |
US $3.46 |
||
|
14745H
|
14745H
28732-U8600 Mounting Rubber8205--01 ~ ; LD20T |
28732-U8600 |
US $2.45 |
||
|
14745J
|
14745J
28733-R9000 Collar-Mounting Rubber8205--01 ~ ; LD20T |
28733-R9000 |
US $4.32 |
||
|
16500
|
16500
16500-R8400 Air Cleaner8205--01 ~ 8311--01; LD20T |
16500-R8400 |
US $275.04 |
||
|
16500
|
16500
16500-R8401 Air Cleaner8311--01 ~ ; K.LD20T |
16500-R8401 |
US $286.56 |
||
|
16516
|
16516
16516-L1100 Bolt-Center8205--01 ~ ; LD20T |
16516-L1100 |
US $10.08 |
||
| replacement | |||||
|
16516
|
16516
16516-G2760 Bolt-Center8205--01 ~ ; LD20T |
16516-G2760 |
US $10.08 |
||
|
16530
|
16530
16576-R8400 Duct-Air8205--01 ~ 8311--01; LD20T |
16576-R8400 |
US $89.14 |
||
|
16530
|
16530
16576-R8401 Duct-Air8311--01 ~ ; LD20T |
16576-R8401 |
US $89.14 |
||
|
16530
|
16530
01555-00073 CLAMP-HOSE8505--01 ~ ; LD20T |
01555-00073 |
US $4.03 |
||
|
16530A
|
16530A
01555-00073 CLAMP-HOSE8505--01 ~ ; LD20T |
01555-00073 |
US $4.03 |
||
|
16530A
|
16530A
01555-00073 CLAMP-HOSE8505--01 ~ ; LD20T |
01555-00073 |
US $4.03 |
||
|
16530A
|
16530A
01555-00073 CLAMP-HOSE8505--01 ~ ; LD20T |
01555-00073 |
US $4.03 |
||
|
16530A
|
16530A
01555-00073 CLAMP-HOSE8505--01 ~ ; LD20T |
01555-00073 |
US $4.03 |
||
|
16536A
|
16536A
64840-W5501 Grommet8205--01 ~ ; LD20T |
64840-W5501 |
US $5.33 |
||
|
16546
|
16546
AY120NS013 Element Assy-Air8205--01 ~ ; LD20T |
AY120NS013 |
US $47.52 |
||
|
16547
|
16547
16547-47000 Packing8205--01 ~ ; LD20T |
16547-47000 |
US $5.76 |
||
|
16548
|
16548
16548-R9000 Packing8205--01 ~ ; LD20T |
16548-R9000 |
US $10.80 |
||
|
16568
|
16568
16518-99003 Packing8205--01 ~ ; LD20T |
16518-99003 |
US $3.60 |
||
|
16576M
|
16576M
16577-R8400 Pipe Assy-Air Duct8205--01 ~ 8311--01; LD20T.MT |
16577-R8400 |
US $112.18 |
||
|
16576M
|
16576M
16577-R8401 Pipe Assy-Air Duct8311--01 ~ 8403--01; LD20T.MT |
16577-R8401 |
US $112.18 |
||
|
16576M
|
16576M
16577-R8402 Pipe Assy-Air Duct8403--01 ~ ; LD20T.MT |
16577-R8402 |
US $112.18 |
||
|
16577
|
16577
16578-R8400
Duct Assy-Air
8205--01 ~ 8311--01; LD20T |
16578-R8400 |
— | ||
|
16577
|
16577
16578-R8401 Duct Assy-Air8311--01 ~ 8506--01; LD20T |
16578-R8401 |
US $214.56 |
||
|
16577
|
16577
16578-R8402 Duct Assy-Air8506--01 ~ ; LD20T |
16578-R8402 |
US $214.56 |
||
|
16598
|
16598
16598-M7000 Clip8205--01 ~ 8304--01; LD20T |
16598-M7000 |
US $3.02 |
||
