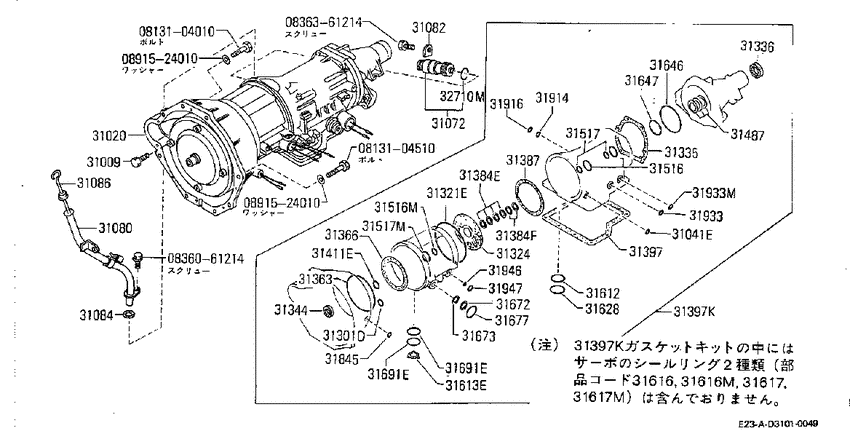

AT transmission & transaxle assembly (1983-04-01 ~ ; 4N71B) Diagram Nissan CARAVAN/HOMY
- Year
- 1982 - 2012
- Sales region
- Japan
- Engine
- LD20T
- transmission
- FA
- Number of doors
- 4D
- grade
- SGL
- body
- K
- body type
- SB
- capacity
- 8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0813104510
|
0813104510
08131-04510
Bolt-hexagon
|
08131-04510 |
— | ||
|
0836061214
|
0836061214
08360-61214
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61214 |
— | ||
|
0836361214
|
0836361214
08363-61214
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61214 |
— | ||
|
0891524010
|
0891524010
08915-24010
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-24010 |
— | ||
|
0891524010
|
0891524010
08915-24010
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-24010 |
— | ||
|
31009
|
31009
31009-01X00 Bolt-Self Lock8008--01 ~ ; AT |
31009-01X00 |
US $4.18 |
||
|
31020
|
31020
31020-X2684
Transmission Assy-Automatic
8205--01 ~ 8304--01; LD20T.AT; 3N71B |
31020-X2684 |
— | ||
|
31020
|
31020
31020-X8660 Transmission Assy-Automatic8501--01 ~ ; LD20T.AT; 4N71B |
31020-X8660 |
US $5,194 |
||
|
31020
|
31020
31020-X8690
Transmission Assy-Automatic
8304--01 ~ 8306--01; LD20T.AT; 4N71B |
31020-X8690 |
— | ||
|
31020
|
31020
31020-X8691 Transmission Assy-Automatic8306--01 ~ 8501--01; LD20T.AT; 4N71B |
31020-X8691 |
US $4,760 |
||
|
31041E
|
31041E
31042-X8600 Seal-Ring, Oil Pressure Switch8304--01 ~ ; LD20T.4N71B |
31042-X8600 |
US $1.82 |
||
|
31072
|
31072
32702-F6122
Pinion Assy-Speedometer
8606--01 ~ ; K.LD20T.AT; ｵﾚﾝｼﾞ 22T |
32702-F6122 |
— | ||
|
31072
|
31072
32702-P2620 Pinion Assy-Speedometer8008--01 ~ 8205--01; K.AT |
32702-P2620 |
US $18.29 |
||
|
31072
|
31072
32702-P2622 Pinion Assy-Speedometer8304--01 ~ 8306--01; LD20T.AT |
32702-P2622 |
US $18.72 |
||
|
31072
|
31072
32702-V1022 Pinion Assy-Speedometer8306--01 ~ 8501--01; LD20T.AT; ｵﾚﾝｼﾞ 22T |
32702-V1022 |
US $27.65 |
||
|
31080
|
31080
31080-R8210
Pipe Assy-Oil Charging
8205--01 ~ 8304--01; K.LD20T.AT |
31080-R8210 |
— | ||
|
31080
|
31080
31080-R8270 Pipe Assy-Oil Charging8304--01 ~ ; K.LD20T.AT |
31080-R8270 |
US $37.58 |
||
|
31082
|
31082
32718-14600
Plate-Lock, Speedometer Pinion
8008--01 ~ ; AT |
32718-14600 |
— | ||
| replacement | |||||
|
31082
|
31082
3271814601 Plate-Lock8008--01 ~ ; AT |
3271814601 |
US $2.64 |
||
|
31084
|
31084
31084-20300 Seal-O Ring8008--01 ~ ; AT |
31084-20300 |
US $1.58 |
||
|
31086
|
31086
31086-02C00 Gauge Assy-Oil Level8205--01 ~ 8304--01; LD20T.AT |
31086-02C00 |
US $30.53 |
||
|
31086
|
31086
31086-V2700 Gauge Assy-Oil Level8304--01 ~ 8312--01; K.LD20T.AT |
31086-V2700 |
US $22.61 |
||
| replacement | |||||
|
31086
|
31086
31086-V2702 Gauge Assy-Oil Level8304--01 ~ 8312--01; K.LD20T.AT |
31086-V2702 |
US $22.75 |
||
|
31086
|
31086
31086-V2701 Gauge Assy-Oil Level8312--01 ~ ; K.LD20T.AT |
31086-V2701 |
US $32.26 |
||
| replacement | |||||
|
31086
|
31086
31086-V2702 Gauge Assy-Oil Level8312--01 ~ ; K.LD20T.AT |
31086-V2702 |
US $22.75 |
||
|
31301D
|
31301D
31954-X6100 Seal-Oil8304--01 ~ ; LD20T.4N71B |
31954-X6100 |
US $2.45 |
||
|
31321E
|
31321E
31363-X0100 Seal-Lathe Cut Ring8304--01 ~ ; LD20T.4N71B |
31363-X0100 |
US $4.75 |
||
|
31324
|
31324
31324-X8600 Gasket-Drum Support, Front8304--01 ~ ; LD20T.4N71B |
31324-X8600 |
US $4.18 |
||
|
31335
|
31335
31335-X0100 Gasket-Extension8008--01 ~ ; AT |
31335-X0100 |
US $4.18 |
||
| replacement | |||||
|
31335
|
31335
31338-X0100 Gasket-Extension8008--01 ~ ; AT |
31338-X0100 |
US $4.18 |
||
|
31336
|
31336
31336X0101 Seal-Oil, Rear Extension8008--01 ~ 8304--01; AT |
31336X0101 |
US $4.57 |
||
|
31336
|
31336
31336-X8000 Seal-Oil, Rear Extension8305--01 ~ ; LD20T.4N71B |
31336-X8000 |
US $7.63 |
||
|
31344
|
31344
31344X0101 Seal-Oil Pump Housing8008--01 ~ 8503--01; AT |
31344X0101 |
US $5.62 |
||
|
31344
|
31344
31344-X0102 Seal-Oil Pump Housing8503--01 ~ ; AT |
31344-X0102 |
US $5.62 |
||
|
31363
|
31363
31363-X0100 Seal-Lathe Cut Ring8008--01 ~ ; AT |
31363-X0100 |
US $4.75 |
||
|
31366
|
31366
31366-X0101
Gasket-Oil Pump
8008--01 ~ 8304--01; AT |
31366-X0101 |
— | ||
|
31366
|
31366
31366-X8600 Gasket-Oil Pump8304--01 ~ ; AT |
31366-X8600 |
US $4.18 |
||
| replacement | |||||
|
31366
|
31366
31366-X8601 Gasket-Oil Pump8304--01 ~ ; AT |
31366-X8601 |
US $9.65 |
||
|
31384E
|
31384E
31361-X8600 Ring-Seal8304--01 ~ ; LD20T.4N71B |
31361-X8600 |
US $7.49 |
||
|
31384F
|
31384F
31362-X8600 Ring-Seal8304--01 ~ ; LD20T.4N71B |
31362-X8600 |
US $7.49 |
||
|
31387
|
31387
31387-X8600 Gasket-Oil Pump8304--01 ~ ; LD20T.4N71B |
31387-X8600 |
US $4.18 |
||
| replacement | |||||
|
31387
|
31387
31387-X8601 Gasket-Oil Pump8304--01 ~ ; LD20T.4N71B |
31387-X8601 |
US $4.18 |
||
|
31397
|
31397
31397-X0101 Gasket-Oil Pan8008--01 ~ 8302--01; AT |
31397-X0101 |
US $13.54 |
||
| replacement | |||||
|
31397
|
31397
31397X0103 Gasket-Oil Pan8008--01 ~ 8302--01; AT |
31397X0103 |
from US $13.82 |
||
|
31397
|
31397
31397-X0102 Gasket-Oil Pan8302--01 ~ ; AT |
31397-X0102 |
US $13.82 |
||
| replacement | |||||
|
31397
|
31397
31397X0103 Gasket-Oil Pan8302--01 ~ ; AT |
31397X0103 |
from US $13.82 |
||
|
31397
|
31397
31397-X0189 Gasket & Seal Kit-Auto Transmission8008--01 ~ ; (Z20+SD22+SD23+LD20T).3N71B |
31397-X0189 |
US $195.84 |
||
| replacement | |||||
|
31397
|
31397
C1397-X018K
Gasket & seal kit-auto transmission
8008--01 ~ ; (Z20+SD22+SD23+LD20T).3N71B |
C1397-X018K |
— | ||
|
31397
|
31397
31397-X8785
Gasket & Seal Kit-Auto Transmission
8304--01 ~ 8503--01; LD20T.4N71B |
31397-X8785 |
— | ||
|
31397
|
31397
31397-X8786
Gasket & Seal Kit-Auto Transmission
8503--01 ~ ; LD20T.4N71B |
31397-X8786 |
— | ||
| replacement | |||||
|
31397
|
31397
31397X8789 Gasket & Seal Kit-Auto Transmission8503--01 ~ ; LD20T.4N71B |
31397X8789 |
US $245.34 |
||
|
31397K
|
31397K
31397-X0189 Gasket & Seal Kit-Auto Transmission8008--01 ~ ; (Z20+SD22+SD23+LD20T).3N71B |
31397-X0189 |
US $195.84 |
||
| replacement | |||||
|
31397K
|
31397K
C1397-X018K
Gasket & seal kit-auto transmission
8008--01 ~ ; (Z20+SD22+SD23+LD20T).3N71B |
C1397-X018K |
— | ||
|
31397K
|
31397K
31397-X8785
Gasket & Seal Kit-Auto Transmission
8304--01 ~ 8503--01; LD20T.4N71B |
31397-X8785 |
— | ||
|
31397K
|
31397K
31397-X8786
Gasket & Seal Kit-Auto Transmission
8503--01 ~ ; LD20T.4N71B |
31397-X8786 |
— | ||
| replacement | |||||
|
31397K
|
31397K
31397X8789 Gasket & Seal Kit-Auto Transmission8503--01 ~ ; LD20T.4N71B |
31397X8789 |
US $245.34 |
||
|
31487
|
31487
31487-X0100 Ring-Seal8008--01 ~ 8306--01; AT |
31487-X0100 |
US $6.34 |
||
|
31487
|
31487
31487-X8000 Ring-Seal8306--01 ~ ; AT |
31487-X8000 |
US $6.48 |
||
|
31516
|
31516
31516-X0100 Seal-Lathe Cut Ring8008--01 ~ ; AT |
31516-X0100 |
US $5.18 |
||
|
31516
|
31516
31516-X0100 Seal-Lathe Cut Ring8304--01 ~ ; LD20T.4N71B |
31516-X0100 |
US $5.18 |
||
|
31516
|
31516
31516-X0100 Seal-Lathe Cut Ring8008--01 ~ ; AT |
31516-X0100 |
US $5.18 |
||
|
31516M
|
31516M
31516-X0100 Seal-Lathe Cut Ring8304--01 ~ ; LD20T.4N71B |
31516-X0100 |
US $5.18 |
||
|
31517
|
31517
31517-X0100 Seal-O Ring8008--01 ~ ; AT |
31517-X0100 |
US $2.45 |
||
|
31517
|
31517
31517-X0100 Seal-O Ring8304--01 ~ ; LD20T.4N71B |
31517-X0100 |
US $2.45 |
||
|
31517
|
31517
31517-X0100 Seal-O Ring8008--01 ~ ; AT |
31517-X0100 |
US $2.45 |
||
|
31517M
|
31517M
31517-X0100 Seal-O Ring8304--01 ~ ; LD20T.4N71B |
31517-X0100 |
US $2.45 |
||
|
31612
|
31612
31612-X0300 Seal-Lathe Cut Ring8008--01 ~ ; AT |
31612-X0300 |
US $2.36 |
||
|
31613E
|
31613E
31612-X3101 Gasket-Overdrive Servo Retainer Cover8304--01 ~ ; LD20T.4N71B |
31612-X3101 |
US $1.73 |
||
| replacement | |||||
|
31613E
|
31613E
31623-X3100 Gasket-Retainer, Servo8304--01 ~ ; LD20T.4N71B |
31623-X3100 |
US $1.73 |
||
|
31628
|
31628
31628-X0100 Seal-O Ring8008--01 ~ ; AT |
31628-X0100 |
US $1.67 |
||
|
31646
|
31646
31646-X0100 Seal-Lathe Cut Ring8008--01 ~ ; AT |
31646-X0100 |
US $4.18 |
||
|
31647
|
31647
31647-X0100 Seal-O Ring8008--01 ~ ; AT |
31647-X0100 |
US $1.73 |
||
|
31672
|
31672
31672-X8600 Ring-Seal, Overdrive Accumulator Piston8304--01 ~ ; LD20T.4N71B |
31672-X8600 |
US $6.19 |
||
|
31673
|
31673
31673-X8600 Ring-Seal, Overdrive Accumulator Piston8304--01 ~ 8305--01; LD20T.4N71B |
31673-X8600 |
US $6.19 |
||
|
31673
|
31673
31673-X8610 Ring-Seal, Overdrive Accumulator Piston8305--01 ~ ; LD20T.4N71B |
31673-X8610 |
US $6.19 |
||
|
31691E
|
31691E
31692X8600 Seal-O Ring, Overdrive Servo Piston Retai8304--01 ~ ; LD20T.4N71B |
31692X8600 |
US $6.19 |
||
|
31691E
|
31691E
31692X8600 Seal-O Ring, Overdrive Servo Piston Retai8304--01 ~ ; LD20T.4N71B |
31692X8600 |
US $6.19 |
||
|
31914
|
31914
31914-X0100 Seal-O Ring8008--01 ~ ; AT |
31914-X0100 |
US $0.86 |
||
|
31916
|
31916
31916-X0100 Seal-O Ring8008--01 ~ ; AT |
31916-X0100 |
US $0.72 |
||
|
31933
|
31933
31933X0100 Seal-O Ring8008--01 ~ ; AT |
31933X0100 |
US $0.81 |
||
|
31933
|
31933
31933X0100 Seal-O Ring8008--01 ~ ; AT |
31933X0100 |
US $0.81 |
||
|
31933M
|
31933M
31933X0100 Seal-O Ring8008--01 ~ ; AT |
31933X0100 |
US $0.81 |
||
|
31946
|
31946
31946-X8600 Seal-O Ring, Overdrive Release Solenoid8304--01 ~ ; LD20T.4N71B |
31946-X8600 |
US $2.64 |
||
|
31947
|
31947
31947-X8600 Seal-O Ring, Overdrive Release Solenoid8304--01 ~ ; LD20T.4N71B |
31947-X8600 |
US $2.64 |
||
|
32710M
|
32710M
32710P9000 Seal-O Ring, Speedometer Pinion8008--01 ~ ; AT; |
32710P9000 |
US $1.73 |
||
