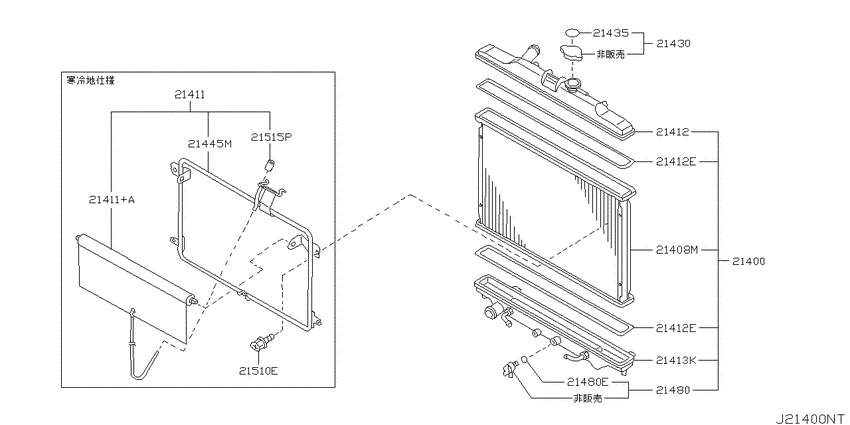

Radiator, shroud & fitting (2003-05-01 ~ 2004-08-01; ラジエーター; KA24DE) Diagram Nissan CARAVAN/HOMY
- Year
- 2003 - 2007
- Sales region
- Japan
- Engine
- KA24DE
- drive
- 2WD
- grade
- SILK
- body
- COACH
- floor
- LD
- capacity
- 8
- roof/door
- SR/5D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21400
|
21400
21460VW000 Radiator Assy0305--01 ~ 0408--01; KA24DE |
21460VW000 |
US $1,336.70 |
||
|
21400
|
21400
01456-00451 SCREW0305--01 ~ 0408--01; KA24DE |
01456-00451 |
from US $0.28 |
||
|
21408M
|
21408M
21411VW000 Core Assy-Radiator0305--01 ~ 0408--01; KA24DE |
21411VW000 |
US $897.74 |
||
|
21411
|
21411
21420-VX100 Shutter Assy-Radiator0305--01 ~ 0408--01; *KA24DE |
21420-VX100 |
US $396.48 |
||
|
21411
|
21411
21420-VX50A Shutter Assy-Radiator0704--01 ~ 0709--01; *KA24DE |
21420-VX50A |
US $396.48 |
||
|
21411
|
21411
21421-01N00 Shutter Assy-Radiator0305--01 ~ 0408--01; *KA24DE |
21421-01N00 |
US $154.08 |
||
|
21411+A
|
21411+A
21421-01N00 Shutter Assy-Radiator0305--01 ~ 0408--01; *KA24DE |
21421-01N00 |
US $154.08 |
||
|
21412
|
21412
21412VW000 Tank-Radiator, Upper0305--01 ~ 0408--01; KA24DE |
21412VW000 |
from US $72.86 |
||
|
21412
|
21412
21414-VW000 Seal-Packing, Radiator0305--01 ~ 0408--01; KA24DE; ｱﾂﾊﾟｰ |
21414-VW000 |
US $20.02 |
||
|
21412
|
21412
21414-VW200 Seal-Packing, Radiator0305--01 ~ 0408--01; KA24DE; ﾛｱｰ |
21414-VW200 |
US $20.02 |
||
|
21412E
|
21412E
21414-VW000 Seal-Packing, Radiator0305--01 ~ 0408--01; KA24DE; ｱﾂﾊﾟｰ |
21414-VW000 |
US $20.02 |
||
|
21412E
|
21412E
21414-VW200 Seal-Packing, Radiator0305--01 ~ 0408--01; KA24DE; ﾛｱｰ |
21414-VW200 |
US $20.02 |
||
|
21412E
|
21412E
21414-VW000 Seal-Packing, Radiator0305--01 ~ 0408--01; KA24DE; ｱﾂﾊﾟｰ |
21414-VW000 |
US $20.02 |
||
|
21412E
|
21412E
21414-VW200 Seal-Packing, Radiator0305--01 ~ 0408--01; KA24DE; ﾛｱｰ |
21414-VW200 |
US $20.02 |
||
|
21413K
|
21413K
21463-VW000 Tank Kit-Radiator Lower0305--01 ~ 0408--01; KA24DE |
21463-VW000 |
US $180 |
||
|
21430
|
21430
2143001F02
Cap Assy-Radiator
0305--01 ~ 0408--01; KA24DE |
2143001F02 |
— | ||
| replacement | |||||
|
21430
|
21430
21430-7999C Cap Assy-Radiator0305--01 ~ 0408--01; KA24DE |
21430-7999C |
from US $10.18 |
||
|
21435
|
21435
21435-89960 Label-Caution, Radiator0305--01 ~ 0408--01; KA24DE; ｷﾔﾂﾌﾟ |
21435-89960 |
US $3.18 |
||
|
21445M
|
21445M
21425-VX100 Bracket-Air Guide0305--01 ~ 0408--01; *KA24DE |
21425-VX100 |
US $10.66 |
||
|
21445M
|
21445M
21425-VX50A Bracket-Air Guide0704--01 ~ 0709--01; *KA24DE |
21425-VX50A |
US $10.66 |
||
|
21480
|
21480
2144001G10 Cock-Water Drain0305--01 ~ 0408--01; KA24DE |
2144001G10 |
US $8.06 |
||
|
21480
|
21480
2141688M00 Packing-Drain0305--01 ~ 0408--01; KA24DE |
2141688M00 |
US $2.45 |
||
|
21480E
|
21480E
2141688M00 Packing-Drain0305--01 ~ 0408--01; KA24DE |
2141688M00 |
US $2.45 |
||
|
21510E
|
21510E
01456-00451 SCREW0305--01 ~ 0408--01; *KA24DE |
01456-00451 |
from US $0.28 |
||
|
21515P
|
21515P
21423-R8001 Clip0305--01 ~ 0408--01; *KA24DE |
21423-R8001 |
US $5.47 |
||
