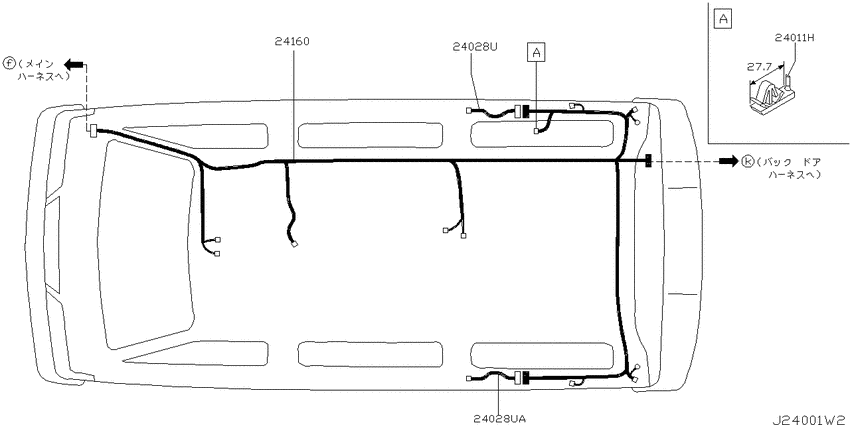

Wiring (2003-05-01 ~ 2004-08-01; ﾙ-ﾑﾗﾝﾌﾟ ﾊ-ﾈｽ; $SLB.KA24DE +BUS.KA24DE +COACH +CHILD) Diagram Nissan CARAVAN/HOMY
- Year
- 2003 - 2007
- Sales region
- Japan
- Engine
- KA24DE
- drive
- 2WD
- grade
- SILK
- body
- COACH
- floor
- LD
- capacity
- 8
- roof/door
- SR/5D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24011H
|
24011H
2434679900 Clip-Connector0305--01 ~ 0408--01; $SLB.KA24DE +BUS.KA24DE +COACH +CHILD |
2434679900 |
US $3.46 |
||
|
24028U
|
24028U
24168-VW010 Harness-Sub0305--01 ~ 0512--01; %SLB.(SR/5D+HR/5D).KA24DE +COACH.SR/5D |
24168-VW010 |
US $24.77 |
||
|
24028U
|
24028U
24168-VW011 Harness-Sub0512--01 ~ 0709--01; COACH.SR/5D |
24168-VW011 |
US $24.77 |
||
|
24028U
|
24028U
24168-VW020 Harness-Sub0305--01 ~ 0408--01; $SLB.KA24DE +BUS.KA24DE +COACH +CHILD |
24168-VW020 |
US $24.77 |
||
|
24028UA
|
24028UA
24168-VW020 Harness-Sub0305--01 ~ 0408--01; $SLB.KA24DE +BUS.KA24DE +COACH +CHILD |
24168-VW020 |
US $24.77 |
||
|
24160
|
24160
24160-VX200 Harness Assy-Room Lamp0305--01 ~ 0512--01; COACH.SR/5D |
24160-VX200 |
US $477.19 |
||
|
24160
|
24160
24160-VX52B Harness Assy-Room Lamp0512--01 ~ 0709--01; COACH.SR/5D |
24160-VX52B |
US $477.19 |
