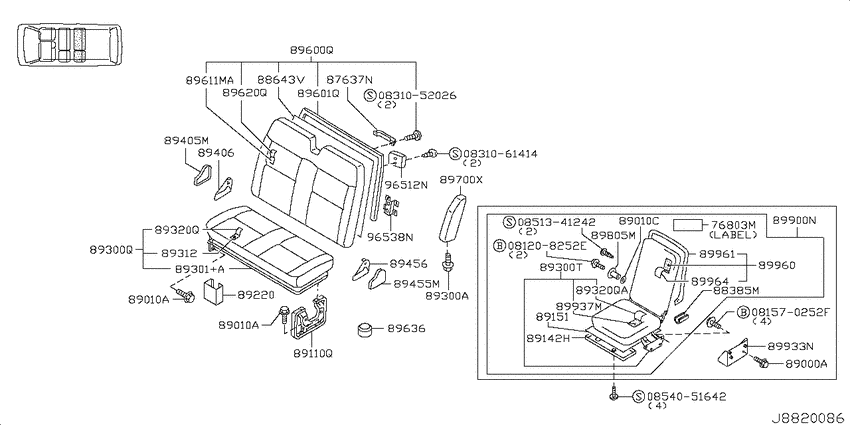

3rd seat (2007-09-01 ~ ; コーチ標準 3RD; COACH.SR/4D) Diagram Nissan CARAVAN/HOMY
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- QR25DE
- drive
- 2WD
- grade
- DX
- body
- COACH
- floor
- LD
- capacity
- 10
- roof/door
- SR/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208252E
|
081208252E
08120-8252E Bolt-hexagon |
08120-8252E |
US $1.93 |
||
|
081570252F
|
081570252F
081570252F
BOLT
|
081570252F |
— | ||
|
0831052026
|
0831052026
08310-52026
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-52026 |
— | ||
|
0831061414
|
0831061414
08310-61414
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-61414 |
— | ||
|
0851341242
|
0851341242
08513-41242
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-41242 |
— | ||
|
0854051642
|
0854051642
0854051642
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
0854051642 |
— | ||
|
76803M
|
76803M
88090-VZ00B Label-Caution Rear Seat0709--01 ~ ; COACH.SR/4D |
88090-VZ00B |
US $7.06 |
||
|
87637N
|
87637N
73940-50A12 Assist Strap-Front0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
73940-50A12 |
US $22.90 |
||
|
88385M
|
88385M
88385-R8000 Bumper-Seat Cushion0709--01 ~ ; COACH.SR/4D |
88385-R8000 |
US $4.32 |
||
|
88643V
|
88643V
88643-VX000 Supporter-Rear Seat Back, Rh0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
88643-VX000 |
US $67.25 |
||
|
88643V
|
88643V
88643-VX000 Supporter-Rear Seat Back, Rh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
88643-VX000 |
US $67.25 |
||
|
88643V
|
88643V
88643-VX005 Supporter-Rear Seat Back, Rh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX LH |
88643-VX005 |
US $44.78 |
||
|
89000A
|
89000A
01121-00903 BOLT0709--01 ~ ; COACH.SR/4D |
01121-00903 |
US $3.46 |
||
|
89010A
|
89010A
88999-WJ101 Bolt-Special0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
88999-WJ101 |
US $4.18 |
||
|
89010A
|
89010A
88999-WJ101 Bolt-Special0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
88999-WJ101 |
US $4.18 |
||
|
89010A
|
89010A
88921-VH560 Bolt0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
88921-VH560 |
US $2.30 |
||
|
89010A
|
89010A
88999-WJ101 Bolt-Special0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH LH |
88999-WJ101 |
US $4.18 |
||
|
89010A
|
89010A
88999-WJ101 Bolt-Special0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX LH |
88999-WJ101 |
US $4.18 |
||
|
89010A
|
89010A
88921-VH560 Bolt0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX LH |
88921-VH560 |
US $2.30 |
||
|
89010A
|
89010A
88999-WJ101 Bolt-Special0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
88999-WJ101 |
US $4.18 |
||
|
89010A
|
89010A
88999-WJ101 Bolt-Special0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
88999-WJ101 |
US $4.18 |
||
|
89010A
|
89010A
88921-VH560 Bolt0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
88921-VH560 |
US $2.30 |
||
|
89010A
|
89010A
88999-WJ101 Bolt-Special0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH LH |
88999-WJ101 |
US $4.18 |
||
|
89010A
|
89010A
88999-WJ101 Bolt-Special0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX LH |
88999-WJ101 |
US $4.18 |
||
|
89010A
|
89010A
88921-VH560 Bolt0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX LH |
88921-VH560 |
US $2.30 |
||
|
89010C
|
89010C
89971WJ100 Washer-Lock0709--01 ~ ; COACH.SR/4D |
89971WJ100 |
US $0.72 |
||
|
89110Q
|
89110Q
89120-VX000 New Genuine Part0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
89120-VX000 |
US $134.50 |
||
|
89142H
|
89142H
89980-VZ00B Finisher Assy-Seat Cushion0709--01 ~ ; COACH.SR/4D |
89980-VZ00B |
US $67.25 |
||
|
89151
|
89151
89933-WJ100 Set Seat Plate0709--01 ~ ; COACH.SR/4D |
89933-WJ100 |
US $17.57 |
||
|
89220
|
89220
74289-VW700 Cover-Leg, 2Nd Seat0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
74289-VW700 |
US $13.10 |
||
|
89300A
|
89300A
87850VE005 Bolt0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
87850VE005 |
US $3.46 |
||
|
89300Q
|
89300Q
89320-VZ12B Cushion Assy-Rear Seat, Rh0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX[D105] |
89320-VZ12B |
US $889.25 |
||
|
89300Q
|
89300Q
89320-VZ12D Cushion Assy-Rear Seat, Rh0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH[D105] |
89320-VZ12D |
US $1,139.88 |
||
|
89300T
|
89300T
89935-VZ00B Cushion Assy-Rear Seat0709--01 ~ ; COACH.SR/4D |
89935-VZ00B |
US $482.86 |
||
|
89300T
|
89300T
89935-VZ00D Cushion Assy-Rear Seat0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH SPARE |
89935-VZ00D |
US $620.21 |
||
|
89301+A
|
89301+A
89321-VX000 Frame Assy-Rear Seat Cushion, Rh0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
89321-VX000 |
US $286.03 |
||
|
89301+A
|
89301+A
89341-VX060 Frame Assy-3Rd Seat Cushion0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH |
89341-VX060 |
US $286.03 |
||
|
89312
|
89312
89317-VX000 Pad-Rear Seat Cushion, Rh0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
89317-VX000 |
US $252 |
||
|
89312
|
89312
89317-VX060 Pad-Rear Seat Cushion, Rh0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH |
89317-VX060 |
US $252 |
||
|
89312
|
89312
89317-VX000 Pad-Rear Seat Cushion, Rh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
89317-VX000 |
US $252 |
||
|
89312
|
89312
89317-VX060 Pad-Rear Seat Cushion, Rh0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH |
89317-VX060 |
US $252 |
||
|
89320Q
|
89320Q
89324-VZ12B Trim Assy-Rear Seat Cushion, Rh0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX[D105] |
89324-VZ12B |
US $441.79 |
||
|
89320Q
|
89320Q
89324-VZ12D Trim Assy-Rear Seat Cushion, Rh0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH[D105] |
89324-VZ12D |
US $572.06 |
||
|
89320Q
|
89320Q
89939-VZ00B Trim Assy-C Seat Cushion, Rh0709--01 ~ ; COACH.SR/4D |
89939-VZ00B |
US $247.68 |
||
|
89320Q
|
89320Q
89939-VZ00D Trim Assy-C Seat Cushion, Rh0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH SPARE |
89939-VZ00D |
US $312.94 |
||
|
89320QA
|
89320QA
89939-VZ00B Trim Assy-C Seat Cushion, Rh0709--01 ~ ; COACH.SR/4D |
89939-VZ00B |
US $247.68 |
||
|
89320QA
|
89320QA
89939-VZ00D Trim Assy-C Seat Cushion, Rh0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH SPARE |
89939-VZ00D |
US $312.94 |
||
|
89405M
|
89405M
89405-VW700 Cover-Reclining Device, Outer Rh0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
89405-VW700 |
US $17.42 |
||
|
89405M
|
89405M
89405-VW880 Cover-Reclining Device, Outer Rh0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH |
89405-VW880 |
US $13.25 |
||
|
89405M
|
89405M
89405-VW880 Cover-Reclining Device, Outer Rh0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH |
89405-VW880 |
US $13.25 |
||
|
89406
|
89406
89406-WJ100 Cover-Reclining Device, Inner Rh0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
89406-WJ100 |
US $22.32 |
||
|
89406
|
89406
87402-01F00 Cover-Reclining Device, Rh0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH |
87402-01F00 |
US $5.18 |
||
|
89406
|
89406
87452-01F00 Cover-Reclining Device, Inner Lh0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH LH |
87452-01F00 |
US $5.18 |
||
|
89406
|
89406
87402-01F00 Cover-Reclining Device, Rh0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH |
87402-01F00 |
US $5.18 |
||
|
89406
|
89406
87452-01F00 Cover-Reclining Device, Inner Lh0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH |
87452-01F00 |
US $5.18 |
||
|
89455M
|
89455M
89455-VW700 Cover-Reclining Device, Outer Lh0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
89455-VW700 |
US $17.42 |
||
|
89455M
|
89455M
89455-VW880 Cover-Reclining Device, Outer Lh0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH |
89455-VW880 |
US $13.25 |
||
|
89455M
|
89455M
89455-VW880 Cover-Reclining Device, Outer Lh0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH |
89455-VW880 |
US $13.25 |
||
|
89455M
|
89455M
89455-VW880 Cover-Reclining Device, Outer Lh0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH LH |
89455-VW880 |
US $13.25 |
||
|
89456
|
89456
87452-01F00 Cover-Reclining Device, Inner Lh0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH |
87452-01F00 |
US $5.18 |
||
|
89456
|
89456
89456-WJ100 Cover-Hinge, Lh0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
89456-WJ100 |
US $22.32 |
||
|
89600Q
|
89600Q
89620-VZ12B Back Assy-Rear Seat, Rh0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX[D105] |
89620-VZ12B |
US $889.25 |
||
|
89600Q
|
89600Q
89620-VZ12D Back Assy-Rear Seat, Rh0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH[D105] |
89620-VZ12D |
US $1,035.10 |
||
|
89601Q
|
89601Q
89621-VX000 Frame Assy-Rear Seat Back, Rh0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
89621-VX000 |
US $286.03 |
||
|
89601Q
|
89601Q
89621-VX060 Frame Assy-Rear Seat Back, Rh0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH |
89621-VX060 |
US $207.36 |
||
|
89601Q
|
89601Q
89671-VX060 Frame Assy-Rear Seat Back, Lh0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH |
89671-VX060 |
US $207.36 |
||
|
89611MA
|
89611MA
89617-VX000 Pad-Rear Seat Back0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
89617-VX000 |
US $252 |
||
|
89620Q
|
89620Q
89624-VZ12B Trim Assy-C Seat Back, Rh0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX[D105] |
89624-VZ12B |
US $441.79 |
||
|
89620Q
|
89620Q
89624-VZ12D Trim Assy-C Seat Back, Rh0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH[D105] |
89624-VZ12D |
US $519.67 |
||
|
89636
|
89636
87836-56C00 Cover-Belt Anch0709--01 ~ ; COACH.SR/4D |
87836-56C00 |
US $1.73 |
||
|
89700X
|
89700X
89750-VZ12B Armrest Assy-Rear Seat0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
89750-VZ12B |
US $116.93 |
||
|
89700X
|
89700X
89750-VZ12D Armrest Assy-Rear Seat0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH |
89750-VZ12D |
US $116.93 |
||
|
89805M
|
89805M
89970WJ100 Collar-2Nd Seat0709--01 ~ ; COACH.SR/4D |
89970WJ100 |
US $1.87 |
||
|
89900N
|
89900N
89950-VZ00B Seat Assy-Spare0709--01 ~ ; COACH.SR/4D; [D105] |
89950-VZ00B |
US $968.54 |
||
|
89900N
|
89900N
89950-VZ00D Seat Assy-Spare0709--01 ~ ; *COACH.SR/4D; [D105] |
89950-VZ00D |
US $1,240.42 |
||
|
89933N
|
89933N
89933-VW000 Set Seat Plate0709--01 ~ ; COACH.SR/4D |
89933-VW000 |
US $145.44 |
||
|
89937M
|
89937M
89937-WJ100 Pad Assy-Spare Seat Cushion0709--01 ~ ; COACH.SR/4D; [G502] |
89937-WJ100 |
US $76.46 |
||
|
89960
|
89960
89960-VZ00B Back Assy-Spare Seat0709--01 ~ ; COACH.SR/4D |
89960-VZ00B |
US $484.27 |
||
|
89960
|
89960
89960-VZ00D Back Assy-Spare Seat0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH SPARE |
89960-VZ00D |
US $620.21 |
||
|
89961
|
89961
89961-VW000 Frame Assy-Spare Seat Back0709--01 ~ ; COACH.SR/4D |
89961-VW000 |
US $94.61 |
||
|
89964
|
89964
89964-VZ00B Trim Assy-Spare Seat Back0709--01 ~ ; COACH.SR/4D |
89964-VZ00B |
US $247.68 |
||
|
89964
|
89964
89964-VZ00D Trim Assy-Spare Seat Back0709--01 ~ ; *COACH.SR/4D; 3RD 10 COACH SPARE |
89964-VZ00D |
US $312.94 |
||
|
96512N
|
96512N
96500-41T00 Ashtray-Rear Door0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
96500-41T00 |
US $40.18 |
||
|
96538N
|
96538N
96538-41T00 Bracket-Ashtray0709--01 ~ ; COACH.SR/4D; 3RD 10 COACH DX |
96538-41T00 |
US $4.32 |
