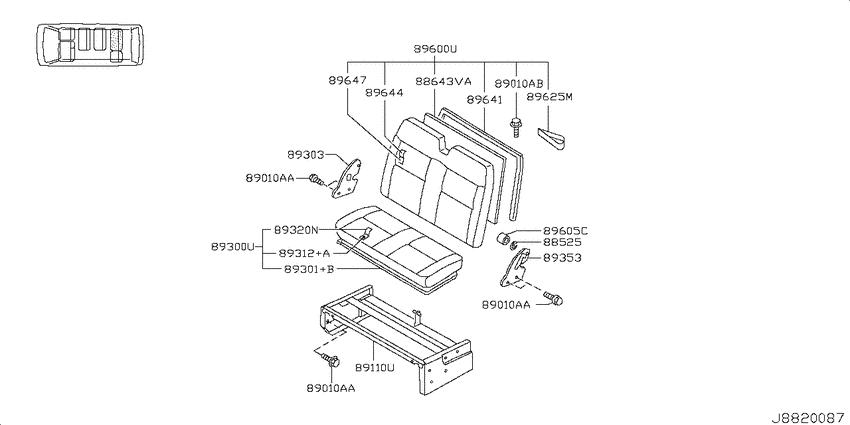

3rd seat (2007-09-01 ~ ; コーチ標準 4TH R; COACH.SR/4D) Diagram Nissan CARAVAN/HOMY
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- QR25DE
- drive
- 2WD
- grade
- DX
- body
- COACH
- floor
- LD
- capacity
- 10
- roof/door
- SR/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88525
|
88525
88525-VW000 Ring-Snap0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
88525-VW000 |
US $1.73 |
||
|
88525
|
88525
88525-VW000 Ring-Snap0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX LH |
88525-VW000 |
US $1.73 |
||
|
88643VA
|
88643VA
88643-VX000 Supporter-Rear Seat Back, Rh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
88643-VX000 |
US $67.25 |
||
|
89010AA
|
89010AA
88999-WJ101 Bolt-Special0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
88999-WJ101 |
US $4.18 |
||
|
89010AA
|
89010AA
88999-WJ101 Bolt-Special0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
88999-WJ101 |
US $4.18 |
||
|
89010AA
|
89010AA
88999-WJ101 Bolt-Special0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
88999-WJ101 |
US $4.18 |
||
|
89010AB
|
89010AB
88921-VH560 Bolt0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
88921-VH560 |
US $2.30 |
||
|
89010AB
|
89010AB
88999-WJ101 Bolt-Special0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH LH |
88999-WJ101 |
US $4.18 |
||
|
89110U
|
89110U
89140-VX000 Leg Assy-E Seat, Rh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
89140-VX000 |
US $440.38 |
||
|
89300U
|
89300U
89340-VZ12B Cushion Assy-E Seat, Rh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX[D105] |
89340-VZ12B |
US $889.25 |
||
|
89300U
|
89300U
89340-VZ12D Cushion Assy-E Seat, Rh0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH[D105] |
89340-VZ12D |
US $1,139.88 |
||
|
89301+B
|
89301+B
89341-VX000 Frame Assy-3Rd Seat Cushion0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
89341-VX000 |
US $286.03 |
||
|
89303
|
89303
88950-VW700 Hinge Assy-3Rd Seat, Rh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
88950-VW700 |
US $44.35 |
||
|
89303
|
89303
89303-VW820 Hinge Assy-3Rd Seat, Rh0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH LH |
89303-VW820 |
US $44.35 |
||
|
89303
|
89303
88950-VW700 Hinge Assy-3Rd Seat, Rh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX LH |
88950-VW700 |
US $44.35 |
||
|
89312+A
|
89312+A
89317-VX000 Pad-Rear Seat Cushion, Rh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
89317-VX000 |
US $252 |
||
|
89312+A
|
89312+A
89317-VX060 Pad-Rear Seat Cushion, Rh0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH |
89317-VX060 |
US $252 |
||
|
89320N
|
89320N
89344-VZ12B Trim Assy-A Seat Cushion, Rh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX[D105] |
89344-VZ12B |
US $441.79 |
||
|
89320N
|
89320N
89344-VZ12D Trim Assy-A Seat Cushion, Rh0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH[D105] |
89344-VZ12D |
US $572.06 |
||
|
89353
|
89353
88951-VW700 Hinge Assy-3Rd Seat, Lh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
88951-VW700 |
US $44.35 |
||
|
89353
|
89353
88951-VW700 Hinge Assy-3Rd Seat, Lh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX LH |
88951-VW700 |
US $44.35 |
||
|
89600U
|
89600U
89640-VZ12B Back Assy-E Seat, Rh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX[D105] |
89640-VZ12B |
US $889.25 |
||
|
89600U
|
89600U
89640-VZ12D Back Assy-E Seat, Rh0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH[D105] |
89640-VZ12D |
US $1,139.88 |
||
|
89605C
|
89605C
87614-VW700 Bush-Rear Seat0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
87614-VW700 |
US $1.73 |
||
|
89625M
|
89625M
88965-VX000 Band-3Rd Seat Back0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
88965-VX000 |
US $11.95 |
||
|
89625M
|
89625M
88965-VX000 Band-3Rd Seat Back0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX LH |
88965-VX000 |
US $11.95 |
||
|
89641
|
89641
89641-VX000 Frame Assy-4Th Seat Back, Rh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
89641-VX000 |
US $286.03 |
||
|
89641
|
89641
89641-VX060 Frame Assy-4Th Seat Back, Rh0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH |
89641-VX060 |
US $207.36 |
||
|
89644
|
89644
89644-VZ12B Trim Assy-4Th Seat Back, Rh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX[D105] |
89644-VZ12B |
US $441.79 |
||
|
89644
|
89644
89644-VZ12D Trim Assy-4Th Seat Back, Rh0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH[D105] |
89644-VZ12D |
US $519.67 |
||
|
89647
|
89647
89647-VX000 Pad Assy-4Th Seat Back, Rh0709--01 ~ ; COACH.SR/4D; 4TH 10 COACH DX |
89647-VX000 |
US $252 |
||
|
89647
|
89647
89647-VX060 Pad Assy-4Th Seat Back, Rh0709--01 ~ ; *COACH.SR/4D; 4TH 10 COACH |
89647-VX060 |
US $168.48 |
