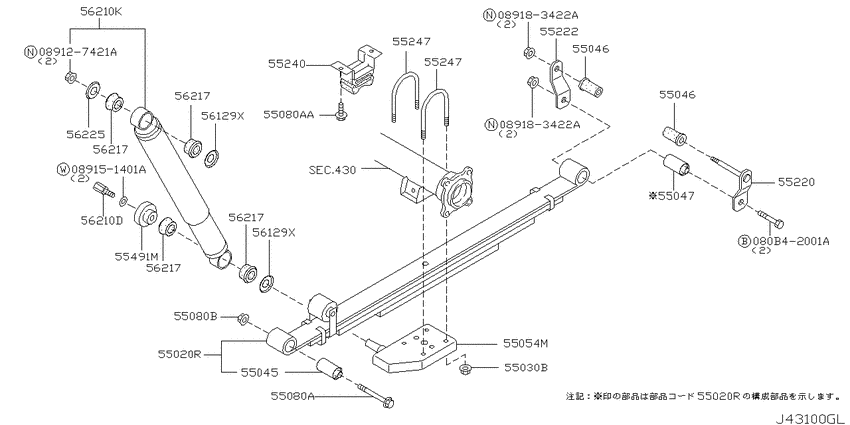

Rear suspension (2004-08-01 ~ 2004-11-01; バス(4WD)) Diagram Nissan CARAVAN/HOMY
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 4WD
- grade
- GX
- body
- LB
- floor
- LD
- capacity
- 2/5/7
- roof/door
- SR/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080B42001A
|
080B42001A
080B4-2001A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ ﾍﾂｸｽ
|
080B4-2001A |
— | ||
|
089127421A
|
089127421A
089127421A NUTHEX |
089127421A |
US $0.59 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089183422A
|
089183422A
08918-3422A
ﾅﾂﾄ,ﾌﾗﾝｼﾞﾍｷｻｺﾞﾝ
|
08918-3422A |
— | ||
|
089183422A
|
089183422A
08918-3422A
ﾅﾂﾄ,ﾌﾗﾝｼﾞﾍｷｻｺﾞﾝ
|
08918-3422A |
— | ||
|
55020R
|
55020R
55020-VX400 Spring Assy-Leaf, Rear0408--01 ~ 0512--01 |
55020-VX400 |
US $400.73 |
||
|
55020R
|
55020R
55020-VX52A Spring Assy-Leaf, Rear0512--01 ~ 0709--01; 2/5.4WD.ZD30DDTI +2/5/7.ZD30DDTI |
55020-VX52A |
US $400.73 |
||
|
55020R
|
55020R
55020-VX400 Spring Assy-Leaf, Rear0408--01 ~ 0512--01 |
55020-VX400 |
US $400.73 |
||
|
55020R
|
55020R
55020-VX52A Spring Assy-Leaf, Rear0512--01 ~ 0709--01; 2/5.4WD.ZD30DDTI +2/5/7.ZD30DDTI |
55020-VX52A |
US $400.73 |
||
|
55030B
|
55030B
0122500213 NUT0408--01 ~ 0512--01; 有B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +BUS.4WD.ZD30DDTI.GX +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI |
0122500213 |
US $1.73 |
||
|
55045
|
55045
55045-VW000 Bush-Rear Spring0408--01 ~ 0512--01 |
55045-VW000 |
from US $19.41 |
||
|
55046
|
55046
55046VW000 Bush-Rear Spring0408--01 ~ 0709--01; 豊B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI +4WD.ZD30DDTI.C/CAB |
55046VW000 |
from US $13.26 |
||
|
55046
|
55046
55046VW000 Bush-Rear Spring0408--01 ~ 0709--01; 豊B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI +4WD.ZD30DDTI.C/CAB |
55046VW000 |
from US $13.26 |
||
|
55047
|
55047
55047VW000 Bush-Rear Spring0408--01 ~ 0709--01; 豊B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI +4WD.ZD30DDTI.C/CAB |
55047VW000 |
from US $13.30 |
||
|
55054M
|
55054M
5505401N00 Seat Assy-Rear Spring, Lower Rh0408--01 ~ 0709--01 |
5505401N00 |
US $37.58 |
||
|
55080A
|
55080A
01125-00673 BOLT0408--01 ~ 0709--01 |
01125-00673 |
US $2.45 |
||
|
55080A
|
55080A
01125-00643 BOLT0408--01 ~ 0504--01 |
01125-00643 |
US $2.45 |
||
|
55080AA
|
55080AA
01125-00643 BOLT0408--01 ~ 0504--01 |
01125-00643 |
US $2.45 |
||
|
55080B
|
55080B
0122500891 NUT0408--01 ~ 0709--01 |
0122500891 |
US $2.45 |
||
|
55080B
|
55080B
0122500891 NUT0411--01 ~ 0709--01 |
0122500891 |
US $2.45 |
||
|
55220
|
55220
55220-VW000 Shackle Assy-Rear Spring0408--01 ~ 0709--01; 豊B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI +4WD.ZD30DDTI.C/CAB |
55220-VW000 |
US $26.50 |
||
|
55222
|
55222
55221-VW001 Shackle-Rear Spring0408--01 ~ 0709--01 |
55221-VW001 |
US $6.91 |
||
|
55240
|
55240
55240-VW002 Bumper Assy-Bound Rear Suspension0408--01 ~ 0512--01 |
55240-VW002 |
from US $68.25 |
||
| replacement | |||||
|
55240
|
55240
55240-VW001
Bumper Assy-Bound Rear Suspension
0408--01 ~ 0512--01 |
55240-VW001 |
— | ||
|
55240
|
55240
55240-VX50A Bumper Assy-Bound Rear Suspension0512--01 ~ 0709--01; 2/5.4WD.ZD30DDTI +2/5/7.ZD30DDTI |
55240-VX50A |
US $61.34 |
||
|
55247
|
55247
55247-01N00 Clip-Rear Spring0408--01 ~ 0709--01 |
55247-01N00 |
US $15.70 |
||
|
55247
|
55247
55247-01N00 Clip-Rear Spring0408--01 ~ 0709--01 |
55247-01N00 |
US $15.70 |
||
|
55491M
|
55491M
55491VW003 Damper-Mass0408--01 ~ 0512--01; 有B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +BUS.4WD.ZD30DDTI.GX +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI |
55491VW003 |
US $42.34 |
||
|
56129X
|
56129X
5612976000 Washer0408--01 ~ 0512--01; 有B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +BUS.4WD.ZD30DDTI.GX +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI |
5612976000 |
US $5.33 |
||
|
56129X
|
56129X
5612976000 Washer0408--01 ~ 0512--01; 有B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +BUS.4WD.ZD30DDTI.GX +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI |
5612976000 |
US $5.33 |
||
|
56210D
|
56210D
56280VW000 Bolt0408--01 ~ 0512--01; 有B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +BUS.4WD.ZD30DDTI.GX +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI |
56280VW000 |
US $7.63 |
||
|
56210K
|
56210K
56210VW025 Absorber Kit-Shock, Rear0408--01 ~ 0709--01; 有B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +BUS.4WD.ZD30DDTI.GX +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI; ｺｸｲﾝNO.56210-VW000 |
56210VW025 |
from US $72.06 |
||
|
56217
|
56217
56119V6000 Bush0408--01 ~ 0512--01; 有B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +BUS.4WD.ZD30DDTI.GX +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI |
56119V6000 |
from US $2.45 |
||
|
56217
|
56217
56119V6000 Bush0408--01 ~ 0512--01; 有B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +BUS.4WD.ZD30DDTI.GX +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI |
56119V6000 |
from US $2.45 |
||
|
56217
|
56217
56119V6000 Bush0408--01 ~ 0512--01; 有B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +BUS.4WD.ZD30DDTI.GX +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI |
56119V6000 |
from US $2.45 |
||
|
56217
|
56217
56119V6000 Bush0408--01 ~ 0512--01; 有B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +BUS.4WD.ZD30DDTI.GX +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI |
56119V6000 |
from US $2.45 |
||
|
56225
|
56225
56225-27400 Washer-Special, Inner0408--01 ~ 0701--01; 有B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +BUS.4WD.ZD30DDTI.GX +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI |
56225-27400 |
US $2.45 |
||
| replacement | |||||
|
56225
|
56225
562252740A Washer-Special0408--01 ~ 0701--01; 有B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +BUS.4WD.ZD30DDTI.GX +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI |
562252740A |
from US $1.24 |
||
|
56225
|
56225
562252740A Washer-Special0701--01 ~ 0709--01; 有B.SR/4D.2/5.4WD.ZD30DDTI +LB.SR/5D.4WD.ZD30DDTI +SLB.4WD.ZD30DDTI +BUS.4WD.ZD30DDTI.GX +SR/4D.(3+3/6).4WD.ZD30DDTI +2/5/7.ZD30DDTI +3/6/8.4WD.ZD30DDTI |
562252740A |
from US $1.24 |
||
