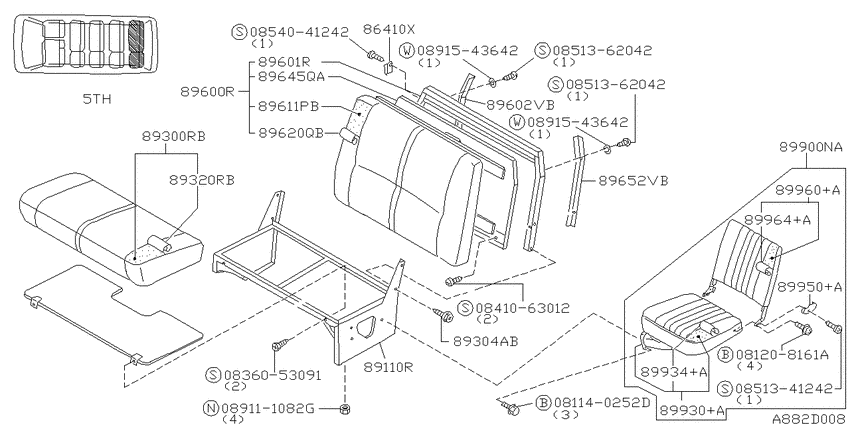

3rd seat (1997-05-01 ~ 1999-06-01; マイクロバス 5THシート; B) Diagram Nissan CARAVAN/HOMY
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- QD32
- drive
- 2WD
- transmission
- MT.F5
- grade
- DX
- body
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081140252D
|
081140252D
08114-0252D
Bolt-hexagon
|
08114-0252D |
— | ||
|
081208161A
|
081208161A
08120-8161A
Bolt-hexagon
|
08120-8161A |
— | ||
|
0836053091
|
0836053091
08360-53091
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-53091 |
— | ||
|
0851341242
|
0851341242
08513-41242
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-41242 |
— | ||
|
0851362042
|
0851362042
08513-62042
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-62042 |
— | ||
|
0851362042
|
0851362042
08513-62042
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-62042 |
— | ||
|
0854041242
|
0854041242
08540-41242
ｽｸﾘﾕ-
|
08540-41242 |
— | ||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
0891543642
|
0891543642
08915-43642
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43642 |
— | ||
|
0891543642
|
0891543642
08915-43642
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43642 |
— | ||
|
89110R
|
89110R
89130-45N73 Leg Assy-D Seat, Rh9705--01 ~ 9707--01; B; 5TH |
89130-45N73 |
US $259.20 |
||
|
89110R
|
89110R
89130-VH073 Leg Assy-D Seat, Rh9707--01 ~ 9906--01; B |
89130-VH073 |
US $236.16 |
||
|
89300RB
|
89300RB
89330-VH073 Cushion Assy-D Seat, Rh9705--01 ~ 9906--01; B; 5TH[D105] |
89330-VH073 |
US $1,064.83 |
||
|
89300RB
|
89300RB
89330-VH083 Cushion Assy-D Seat, Rh9705--01 ~ 9906--01; *B; 5TH GLﾊﾟﾂｸ[D105] |
89330-VH083 |
US $1,064.83 |
||
|
89304AB
|
89304AB
01121-00401 SCREW9705--01 ~ 9906--01; B; 5TH |
01121-00401 |
US $2.45 |
||
|
89320RB
|
89320RB
89334-VH073 Trim Assy-D Seat Cushion, Rh9705--01 ~ 9906--01; B; 5TH[D105] |
89334-VH073 |
US $321.43 |
||
|
89320RB
|
89320RB
89334-VH083 Trim Assy-D Seat Cushion, Rh9705--01 ~ 9906--01; *B; 5TH GLﾊﾟﾂｸ[D105] |
89334-VH083 |
US $321.43 |
||
|
89600R
|
89600R
89600-VH073 Back Assy-B Seat, Rh9705--01 ~ 9906--01; B; 5TH[D105] |
89600-VH073 |
US $1,064.83 |
||
|
89600R
|
89600R
89600-VH083 Back Assy-B Seat, Rh9705--01 ~ 9906--01; *B; 5TH GLﾊﾟﾂｸ[D105] |
89600-VH083 |
US $1,064.83 |
||
|
89601R
|
89601R
89601-45N73 Frame Assy-B Seat Back, Rh9705--01 ~ 9906--01; B; 5TH |
89601-45N73 |
US $497.02 |
||
|
89602VB
|
89602VB
89602-45N73 New Genuine Part9705--01 ~ 9906--01; B; 5TH |
89602-45N73 |
US $17.14 |
||
|
89611PB
|
89611PB
89607-45N73 Pad Assy-A Seat Back, Rh9705--01 ~ 9906--01; B; 5TH |
89607-45N73 |
US $397.90 |
||
|
89620QB
|
89620QB
89624-VH073 Trim Assy-C Seat Back, Rh9705--01 ~ 9906--01; B; 5TH[D105] |
89624-VH073 |
US $321.43 |
||
|
89620QB
|
89620QB
89624-VH083 Trim Assy-C Seat Back, Rh9705--01 ~ 9906--01; *B; 5TH GLﾊﾟﾂｸ[D105] |
89624-VH083 |
US $321.43 |
||
|
89645QA
|
89645QA
89609-45N73 Board Assy-A Seat Back, Rh9705--01 ~ 9906--01; B; 5TH |
89609-45N73 |
US $81.65 |
||
|
89652VB
|
89652VB
89652-45N73 New Genuine Part9705--01 ~ 9906--01; B; 5TH |
89652-45N73 |
US $17.14 |
||
|
89900NA
|
89900NA
89900-VH083 Seat Assy-Spare9705--01 ~ 9906--01; B; 5TH[D105] |
89900-VH083 |
US $977.04 |
||
|
89930+A
|
89930+A
89930-VH083 Cushion Assy-Spare Seat, W/bracket9705--01 ~ 9906--01; B; 5TH[D105] |
89930-VH083 |
US $577.73 |
||
|
89934+A
|
89934+A
89934-VH083 Trim Assy-Spare Seat Cushion9705--01 ~ 9906--01; B; 5TH[D105] |
89934-VH083 |
US $175.68 |
||
|
89950+A
|
89950+A
89950-45N73 Cover-Spare Seat Hinge9705--01 ~ 9906--01; B; 5TH |
89950-45N73 |
US $8.35 |
||
|
89960+A
|
89960+A
89960-VH083 Back Assy-Spare Seat9705--01 ~ 9906--01; B; 5TH[D105] |
89960-VH083 |
US $577.73 |
||
|
89964+A
|
89964+A
89964-VH083 Trim Assy-Spare Seat Back9705--01 ~ 9906--01; B; 5TH[D105] |
89964-VH083 |
US $175.68 |
